Suzuki Samurai 1986 - Separating Upper Case from Lower Case

Fig. 13-3-5
l After installing seal, caulk transmission case
against seal at two points.

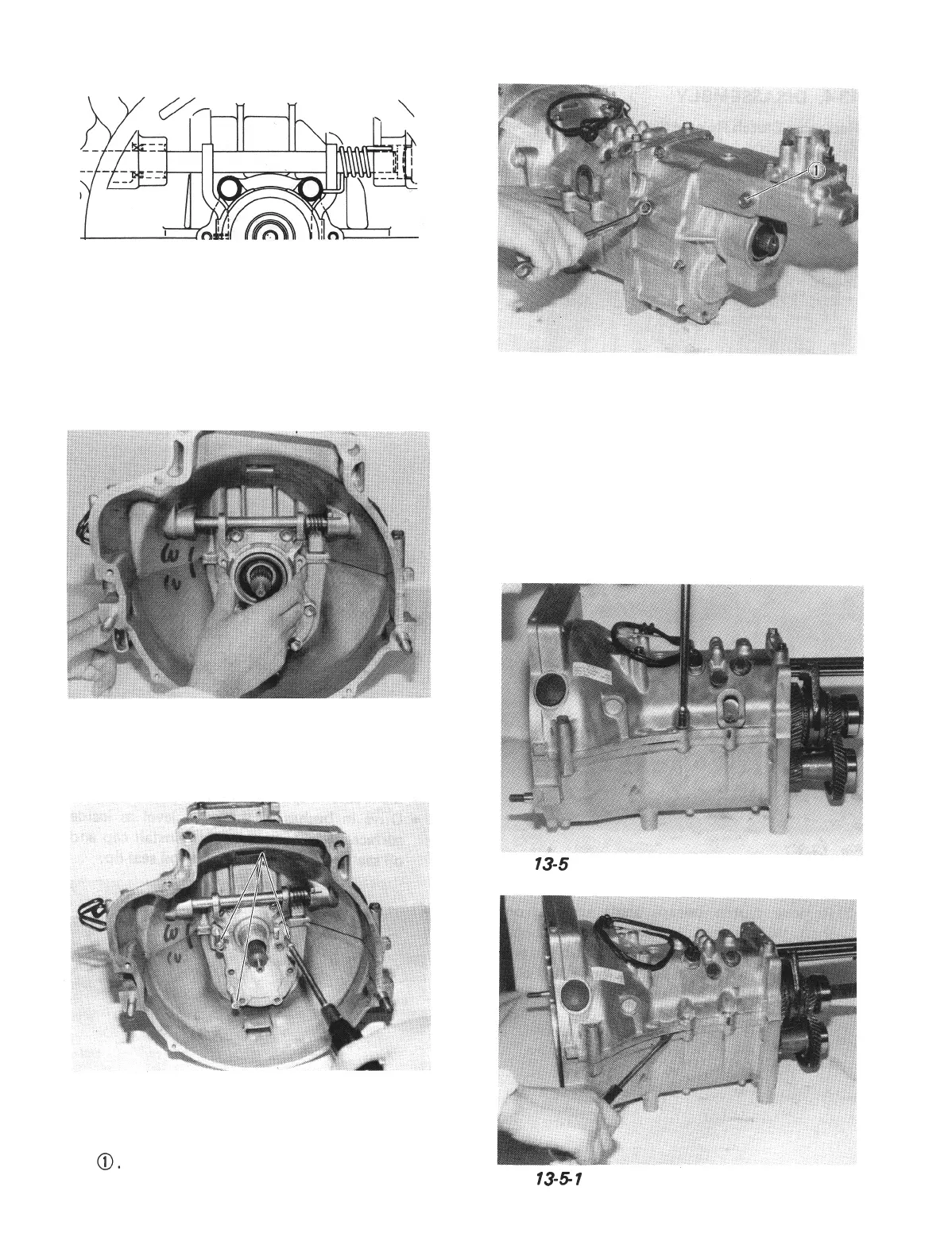

Separating Upper Case from Lower Case
1) Remove clutch release bearing from trans-
mission input shaft.
Fig. 13-4-2
4) Remove bolts fastening upper and lower
cases together, separate the two, and take
out main shaft assembly. A steel bar, similar
in shape to screwdriver, may have to be
used to pry two cases apart, as shown. In
such a case, do not stick bar too far into
between two mating faces, or faces may
become damaged.
Fig. 13-4
2) Remove input shaft bearing retainer bolts
and pull out retainer by using 3 conventio-
nal 6 mm bolts.
Fig. 13-5
Fig. 13-4-l
3) Remove bolts securing extension
transmission case and reverse shift
0. Then take off extension case.
13-6
case to
rim bolt
Fig. 13-5 1
