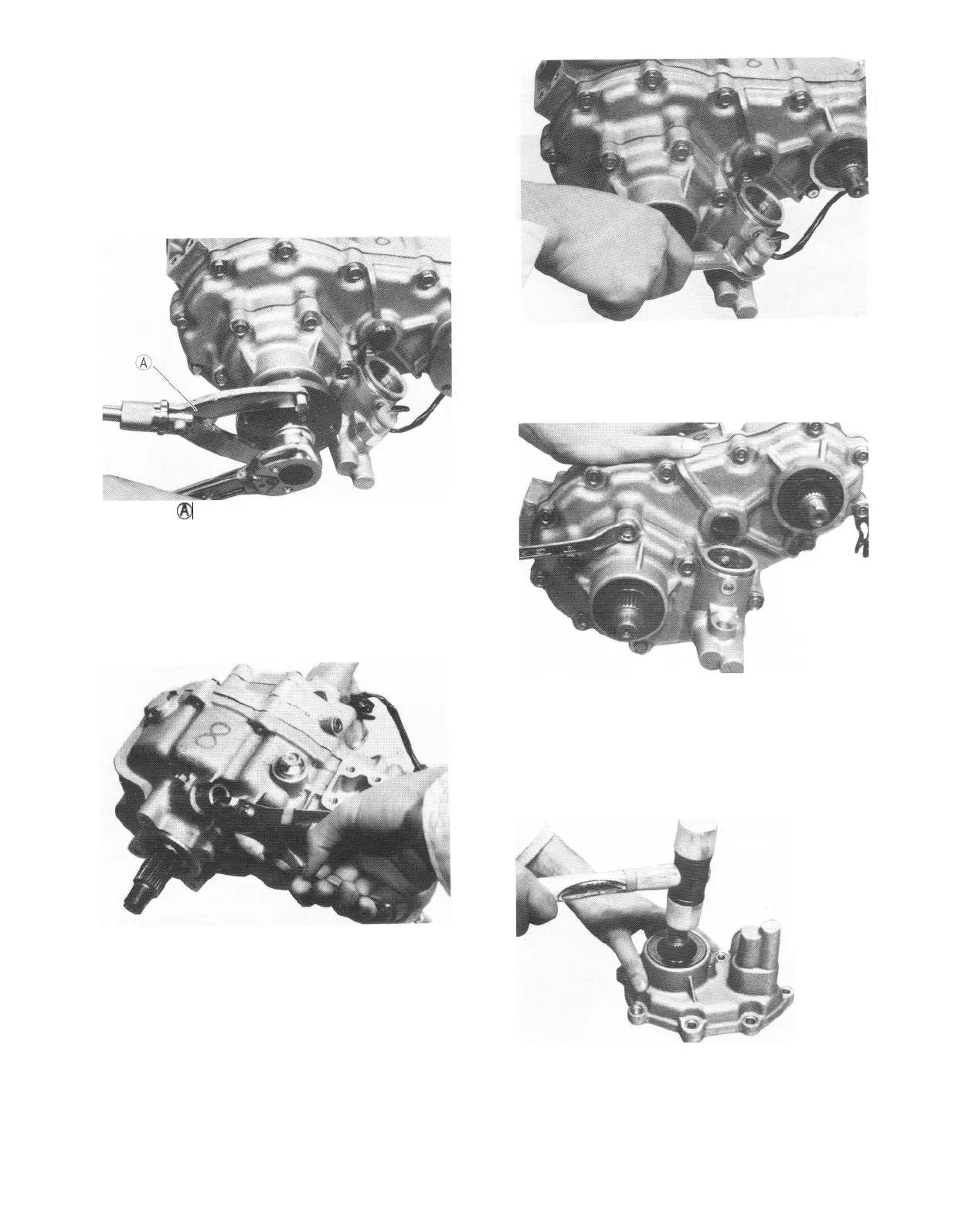

14-6. DISASSEMBLY
Universal-Joint Yoke Flanges
There are 3 flanges to be removed: one from
input shaft and other from output front and rear
shafts. Lock flange so that it will not turn, and
loosen and remove nut holding flange to the
shaft. Draw off flange.
Fig. 14-12 @ Special tool (09930401131
Speedometer Driven Gear
Loosen speedometer driven gear case bolt
and remove speedometer driven gear case with
gear.
Transfer Front Case
Remove the indicator light switch from front
case.
NOTE:
Use care not to lose switch ball. This ball is
larger than interlock ball and locating balls.
Fig. 14-16
Remove bolts securing transfer front case,
and take off case.
By tapping output front shaft with a plastic
hammer,
remove output front shaft from
front case.
Fig. 14-18
Fig. 14-15
14-8
Fig. 14-17
