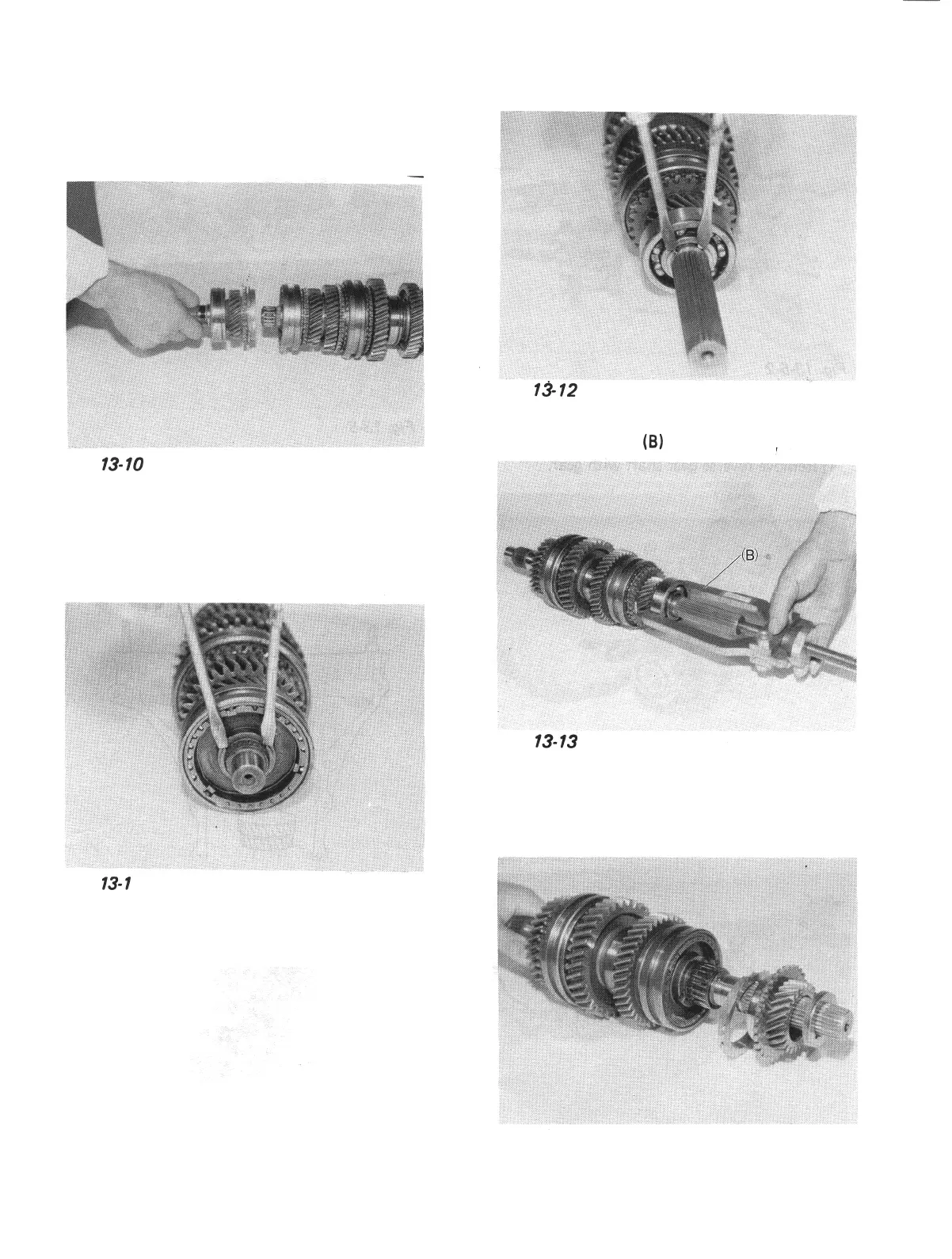

Removing Main Shaft and Input Shaft
l)Take out input shaft by hand, taking care
not to let high-speed synchronizer ring fall
off.
-
Fig. 13-12
Bearing puller (B)
(09913-65135)
Fig. 13-10
2) Remove circlip retaining hub of high-speed
synchronizer sleeve, and slide off sleeve
hub, third driven gear and needle bearing
from main shaft.
Fig. 13-13
Fig. 13-l 1
3) Remove circlip retaining rear bearing on
main shaft. Remove main shaft bearing.
4) From main shaft, take off 5th gear washer,
ball, 5th gear, 5th speed synchronizer ring
and 5th gear needle bearing,
Fig. 13-14
13-8
