Suzuki Samurai 1986 User Manual

[For car not equipped with free wheeling hub]

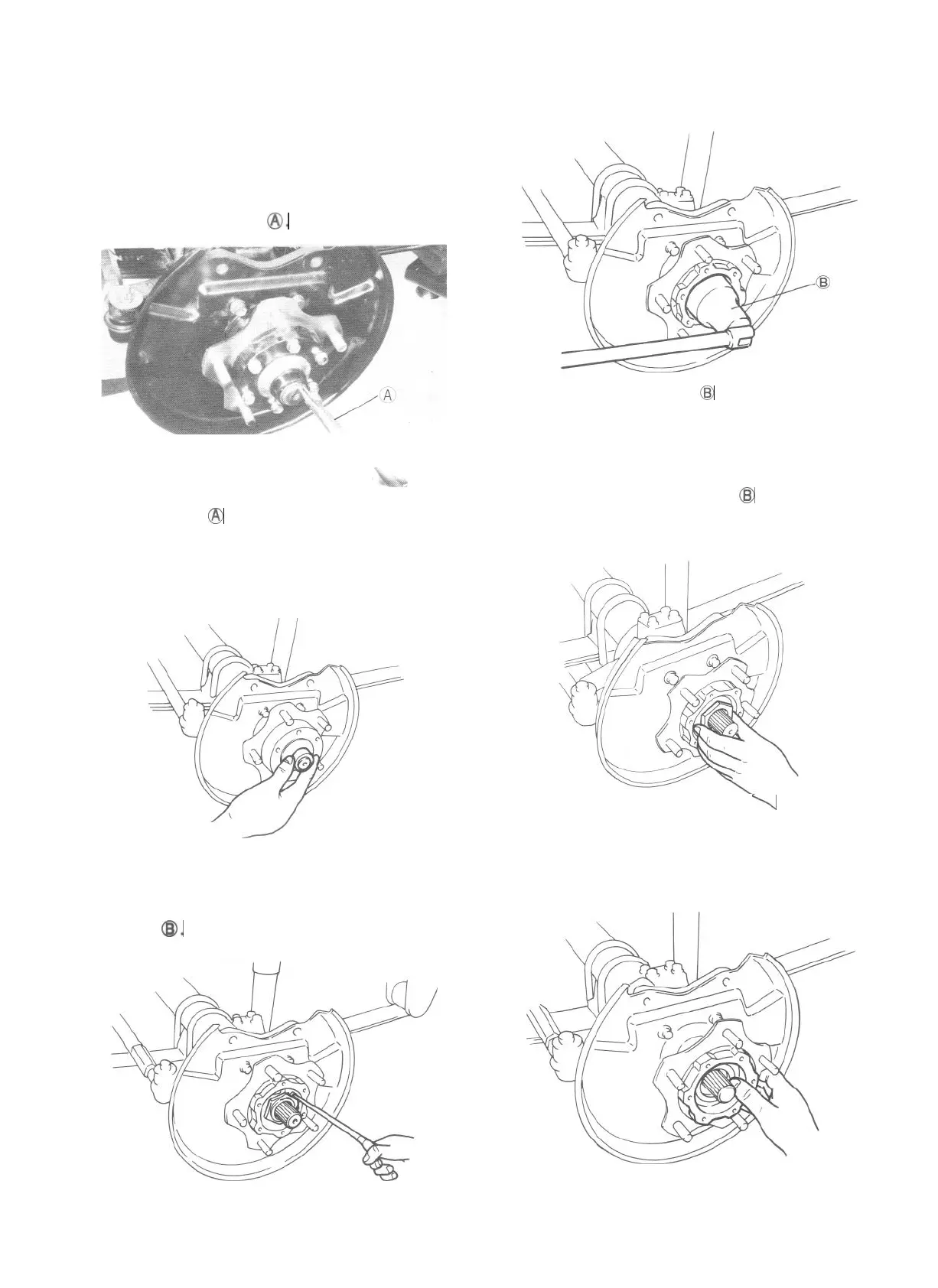

5. Remove the front axle shaft cap.
6. Remove the circlip retaining the front axle
shaft drive flange on front drive shaft, using
the circlip remover @.
Fig. 17-1-12-3 @ Circlip Remover
7. Loosen securing bolts of front axle shaft
drive flange and take off drive flange.
Fig. 17-1-13
8. Straighten bent part of lock washer and
remove wheel bearing lock nut with special
tool @I.
Fig. 17-1-15
Special tool @
(Front Wheel Bearing Nut Socket
Wrench 09941-58010)
9. After loosening front wheel bearing nut
with the same special tool @I as mentioned
in the foregoing step 8, take nut and washer
off the front wheel spindle.
\
Fig. 17-1-16
10. Pull front wheel hub off the front wheel
spindle.
Fig. 17-1-17
17-7
Fig. 17-1-14
