1. Thermal switch
2. Cool water
3. Thermometer
1. Thermal engine room switch

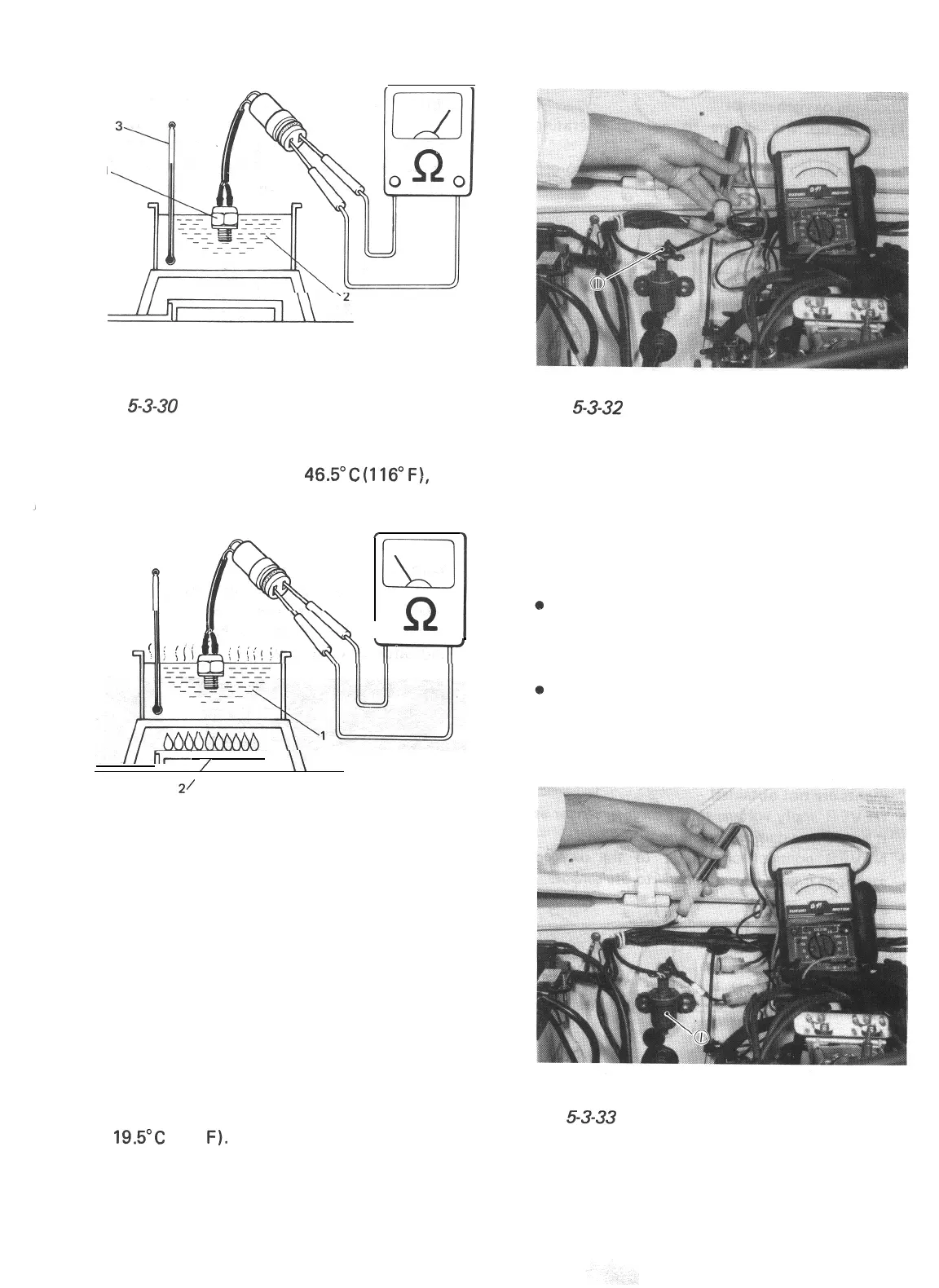

Fig. 5-3-30 Checking thermal switch in cool
Fig. 5-3-32 Checking thermal engine room
water
switch
4) Heat switch to above 46.5”C (116”F), and
check that there is no continuity between
terminals.
t
Ll
%I
R
io 0
I
I
I \\
1. Hot water
II
/
2. Heater
Fig. 5-3-31 Checking switch in hot water
5) Reinstall switch to intake manifold. Before
installing, wind sealing tape on its thread.
6) Refill cooling system.
Checking thermal engine room switch
1) Disconnect connector of switch and connect
ohmmeter between terminals on switch side.
2) Make sure that switch is “ON” (ohmmeter
indicates “Zero”
ohm) when atmospheric
temperature is below 7°C (44” F) and “OFF”
(ohmmeter. indicates infinity) when above
19.5”C (67” F).
Checking high altitude compensator
Check the compensator as follows:
1) Disconnect the coupler of compensator and
connect an ohmmeter to the compensator.
2) Check to be sure that;
* If the altitude of the place where this check is
performed is above 1,220 m (4,000 ft), the
ohmmeter
should indicate
“Zero” ohm
(compensator is ON).
0 If the altitude is below 1,220 m (4,000 ft),
the ohmmeter should indicate infinity ohm
(compensator is OFF).
3) After checking, connect the coupler.
1. High altitude compensator
Fig. 5-3-33 Checking high altitude compensator
5-27
