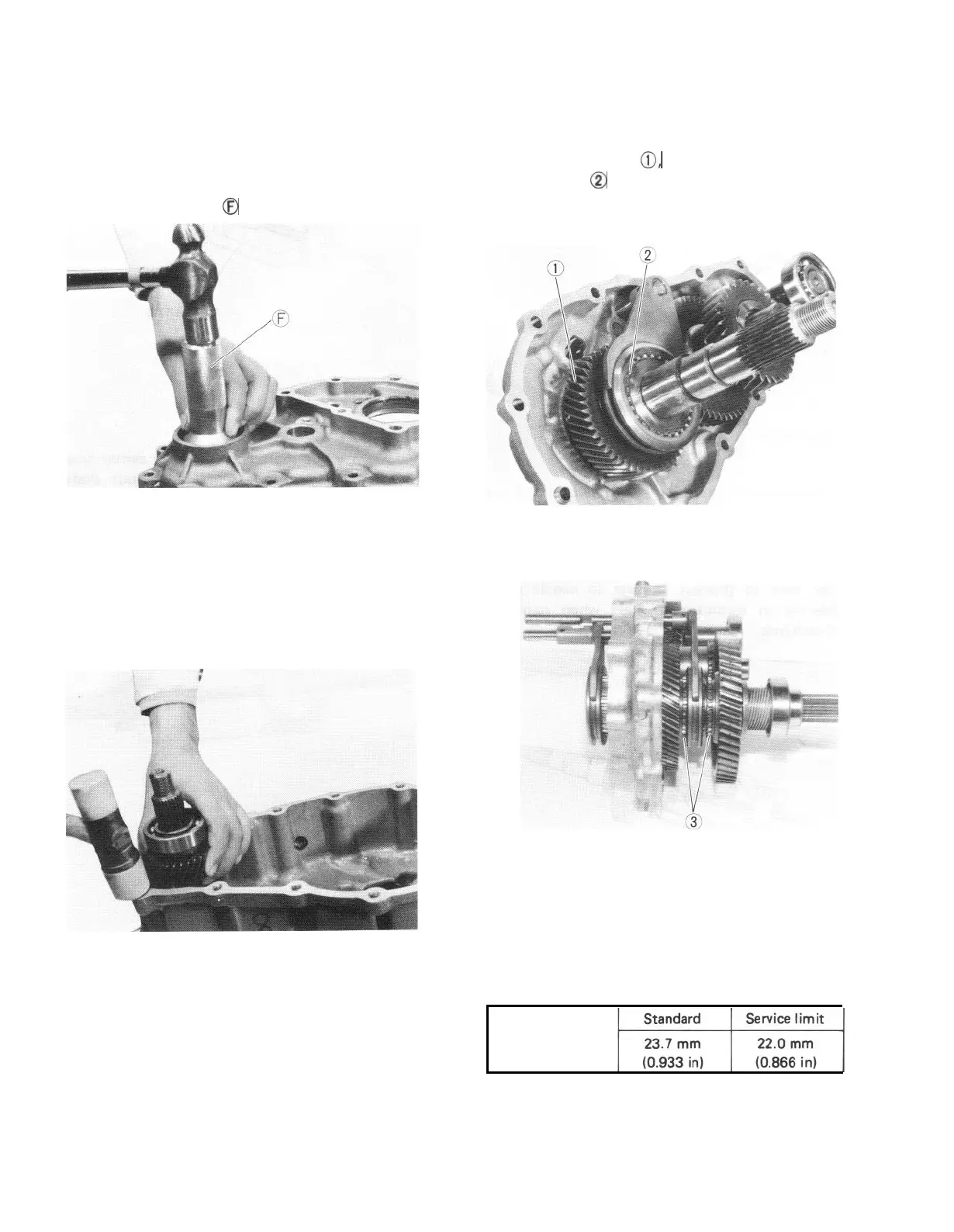

11) When input shaft is removed, front bearing
may be left in case. In this case, after remov-
ing oil seal and circlip, bearing can be taken
out of case by using bearing installer (special
tool).
Bearing installer @ : (09913-75810)
Fig. 14-33
Transfer Rear Case
1) When center case and rear case are separated,
input shaft may be left in rear case. In this
case, remove input shaft from rear case by
hammering thick part of case with a plastic
hammer.
Fig. 14-34
14-7. INSPECTION OF COMPONENTS
Gear Teeth
Inspect gear teeth 0, internal teeth of rear
clutch sleeve @ and clutch teeth of gear 3. for
wear, cracking, chipping and other
malcondition. Replace gear or sleeve as necessary.
Fig. 14-35
Fig. 14-36
Locating Spring
Check each shifter fork shaft locating spring for
strength by measuring its free length. If length is
noted to be less than service limit, replace it.
Free length of
locating spring
14-12
