© 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO350/352/353/450/452/453
ADJUSTMENT
3 - 49
3

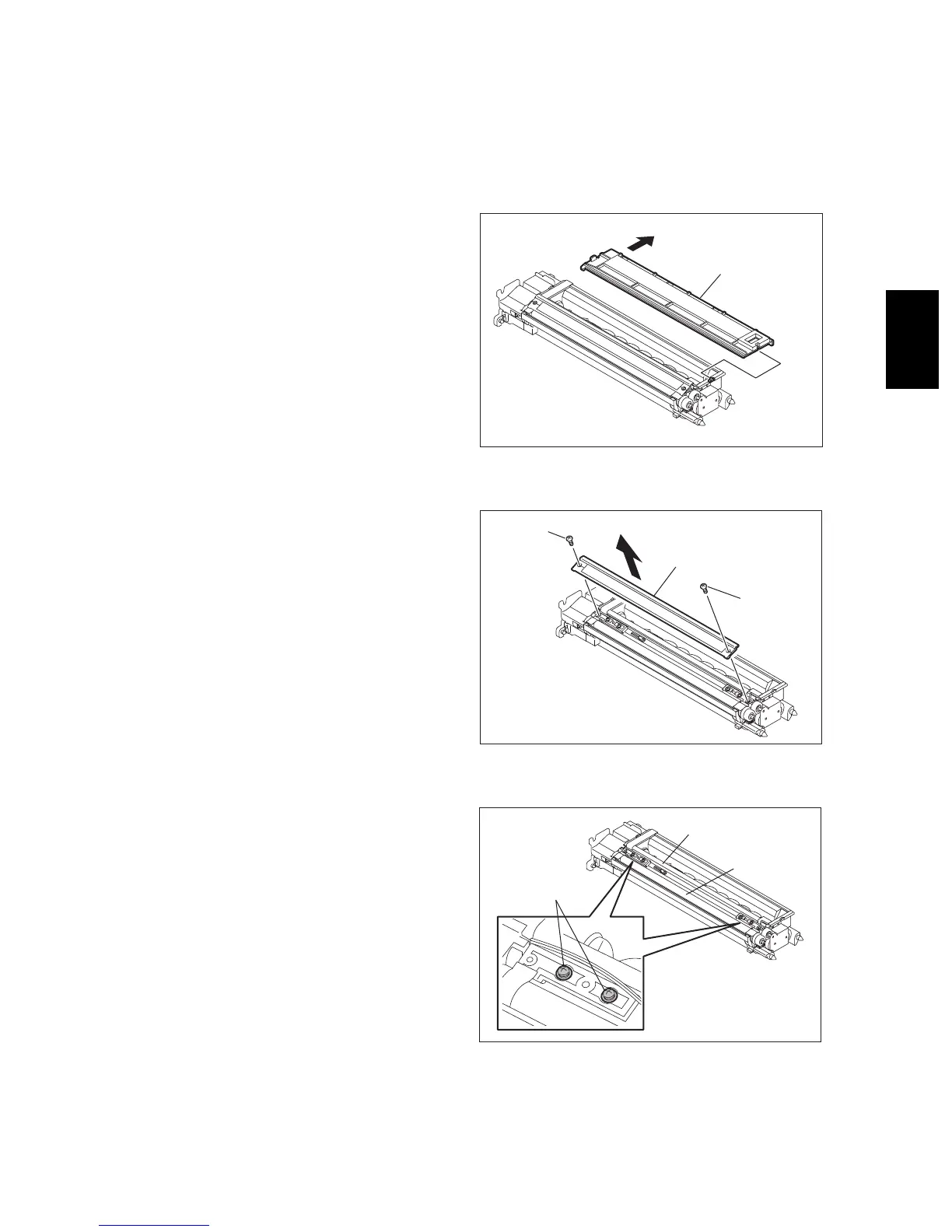

3.9 Adjustment of Developer Unit
3.9.1 Doctor-to-sleeve gap
Adjustment tool to use: Doctor-sleeve jig
(1) Take out the developer unit from the equip-
ment.
(2) Take off the developer material cover and
discharge the developer material.
Fig. 3-47
(3) Remove 2 screws and take off the developer
sleeve cover.
Fig. 3-48
(4) Loosen 4 screws fixing the doctor blade.
Fig. 3-49
Developer
material cover
Developer sleeve
cover
Screw
Screw
Doctor blade
Developer
sleeve
Screw
To Next Page
