ADJUSTMENT
3 - 86

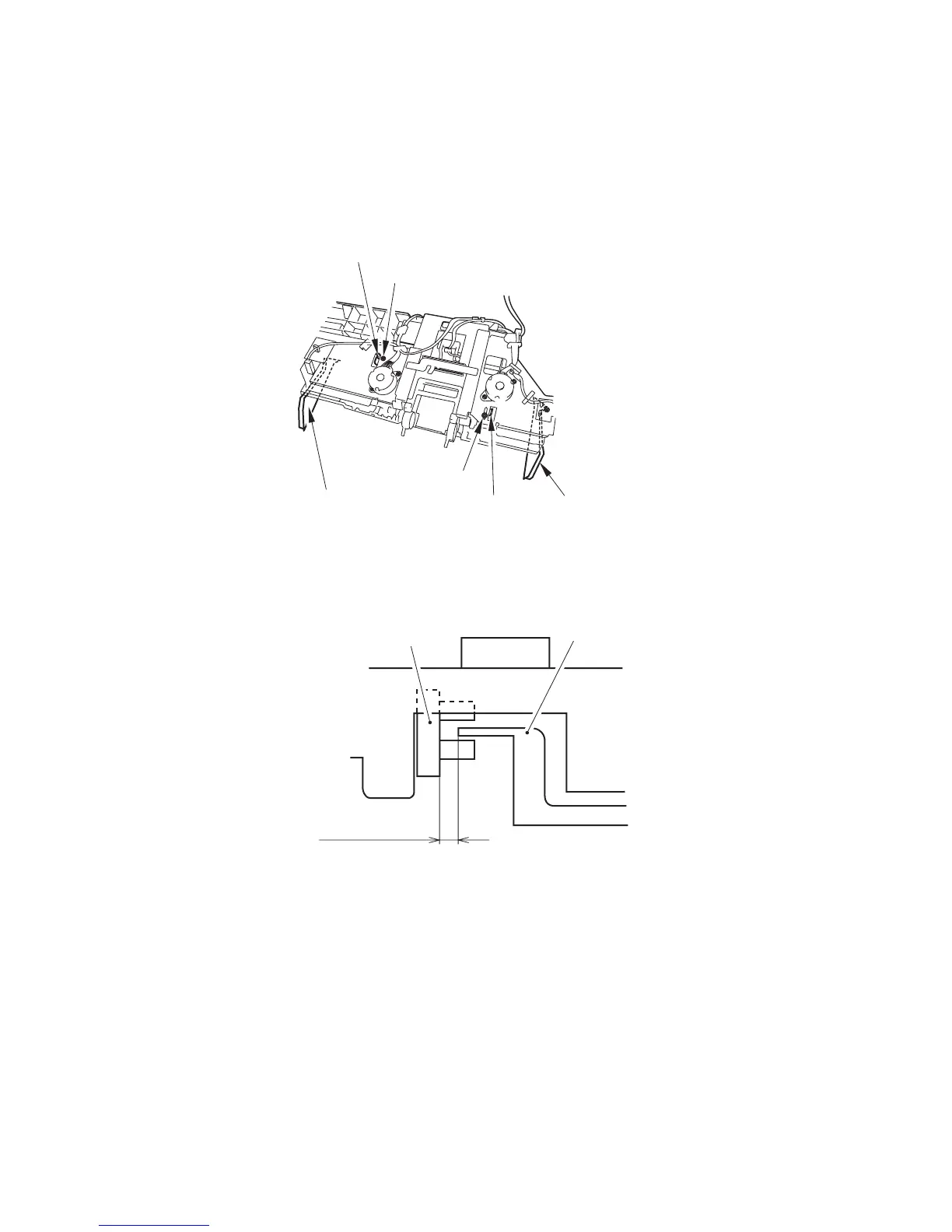

3.12.3 Adjusting the overlap of the sensor flag
If the overlap between the sensor and the flag is wrong for some reason, perform the following adjust-
ment.
(1) Remove the processing tray unit.
(2) Loosen the mounting screw of the front/rear jogging plate adjusting plate; then, move the adjust-
ing plate to the left and the right.
Fig. 3-120
(3) Tighten the screw so that the overlap between the flag of the front/rear jogging rack plate and the
sensor is 1.5 mm to 2.0 mm.
Fig. 3-121
Jogging plate
adjusting plate
Screw
Adjusting plate
Jogging plate
adjusting plate
Screw
Adjusting plate
1.5 mm to 2.0 mm
Sensor
Sensor flag
