© 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO350/352/353/450/452/453
ADJUSTMENT
3 - 87
3
3.12.4 Adjusting the tension of the stack processing motor belt
(1) Remove the right inner cover and the rear cover.
(2) Remove the 2 mounting screws, and detach the grip unit.

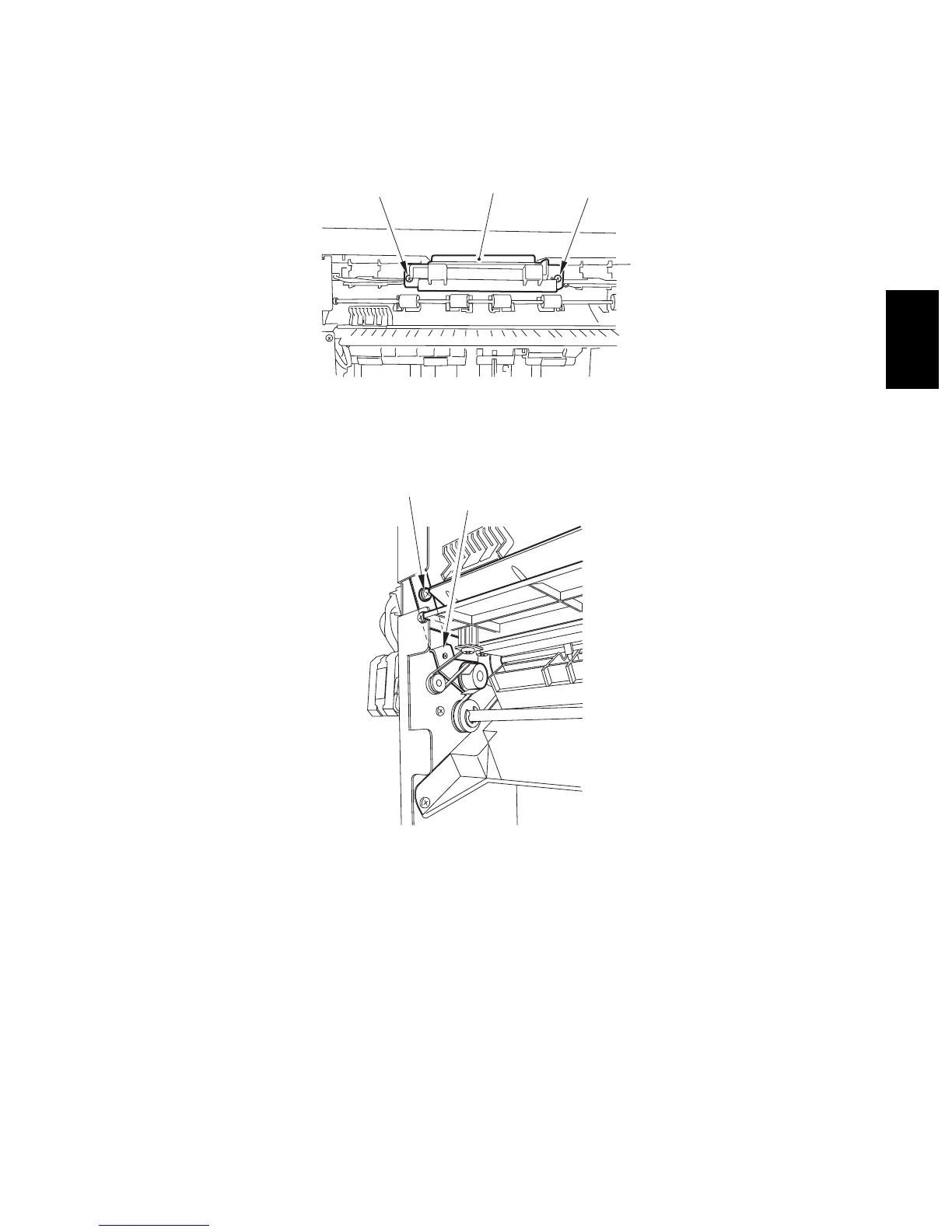

Fig. 3-122
(3) Loosen the screw on the tension arm plate. (The tension arm plate will be pulled under tension
by the tension spring.)
Fig. 3-123
Screw
Grip unit
Screw
Screw
Tension arm plate
