3.11.4 Adjustment of the Leading Edge Position
Note: Note:
Check if the image adjustment for the equipment is performed properly before this adjustment of
the RADF. Also, the RADF position and height shall be adjusted properly.
[A] Checking
Check the image using the chart (original) with vertical and horizontal lines in the following procedure.
Simplex copying:
(1) Place the chart provided as an original with its face up on the original tray of the RADF, select [1
Sided -> 1 Sided] and press the [START] button.
(2) Superimpose the chart on the copy and check the leading edge E of the chart and F of the copy.
Duplex copying:
(1) Place the chart provided as an original with its face up on the original tray of the RADF, select [2
Sided -> 2 Sided] and press the [START] button.
(2) Superimpose the chart on the copy and check the leading edge E of the chart and F of the copy.
[B] Adjustment
Simplex copying:
(1) Turn the power ON while pressing [0] and [5] simultaneously, key in [365] and then press the
[START] button.
(2) Enter the value.
• If the leading edge (F) margin of the copy image is larger than the (E) margin of the chart,
enter a value smaller than the current one.
Note: Note:
Changing one value shifts the copy image by 0.1 mm.
• If the leading edge (F) margin of the copy image is smaller than the (E) margin of the chart,
enter a value larger than the current one.
Note: Note:
Changing one value shifts the copy image by 0.1 mm.
(3) Press the [ENTER] button.

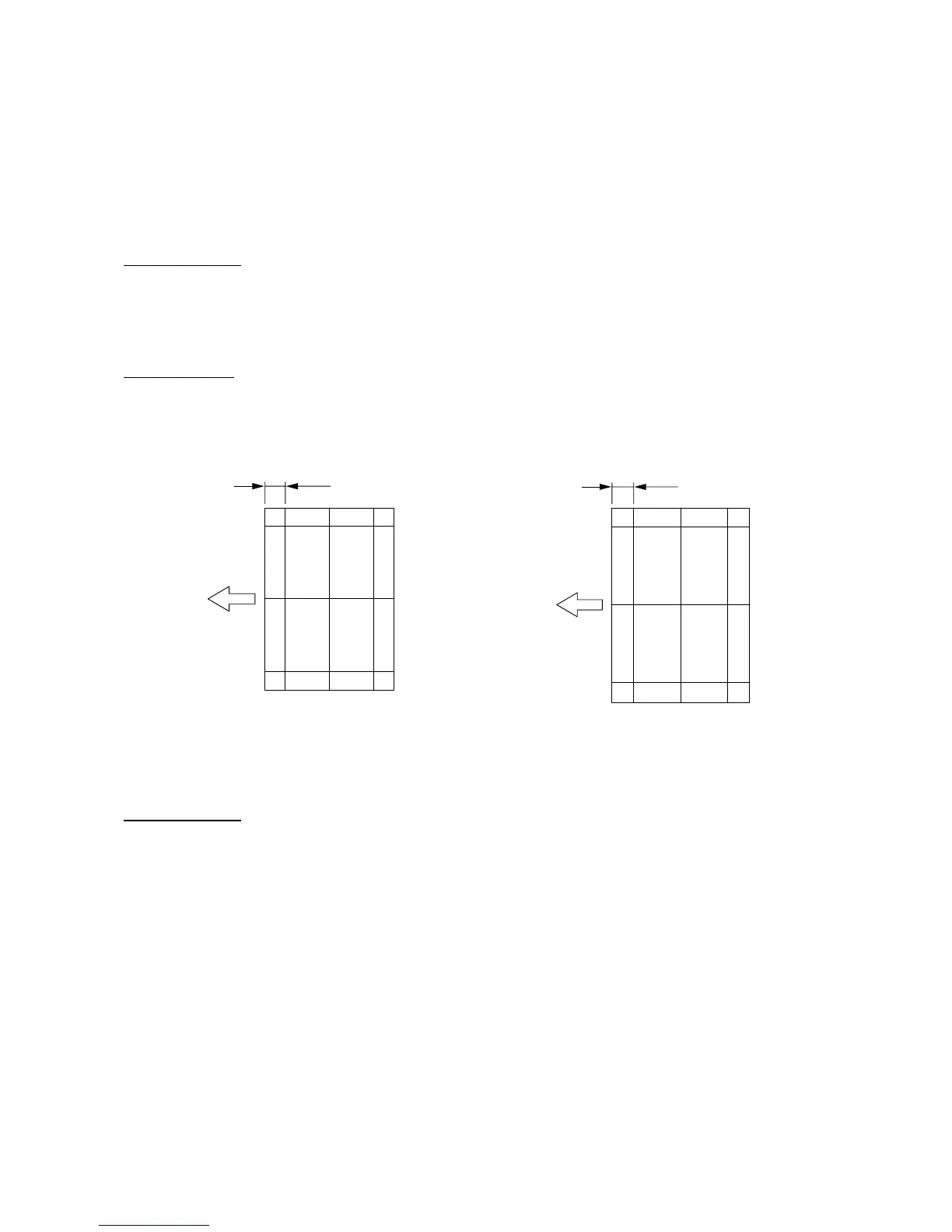

Fig. 3-107 Chart (Original)
