e-STUDIO350/352/353/450/452/453 © 2003 - 2008 TOSHIBA TEC CORPORATION All rights reserved
FIRMWARE UPDATING
6 - 20
6.1.3 Writing the data to the download jig (PWA-DWNLD-350-JIG)
The download jig (PWA-DWNLD-350-JIG) differs from the existing jigs in that the Flash ROM is
mounted on the board of the jig directly. The ROM writer adapter (PWA-DL-ADP-350) is required to
write data to these Flash ROMs. Connect the download jig with the ROM writer via ROM writer adapter
to write data. For the procedure to write data, refer to the download procedure, instruction manual of
each ROM writer, or others.

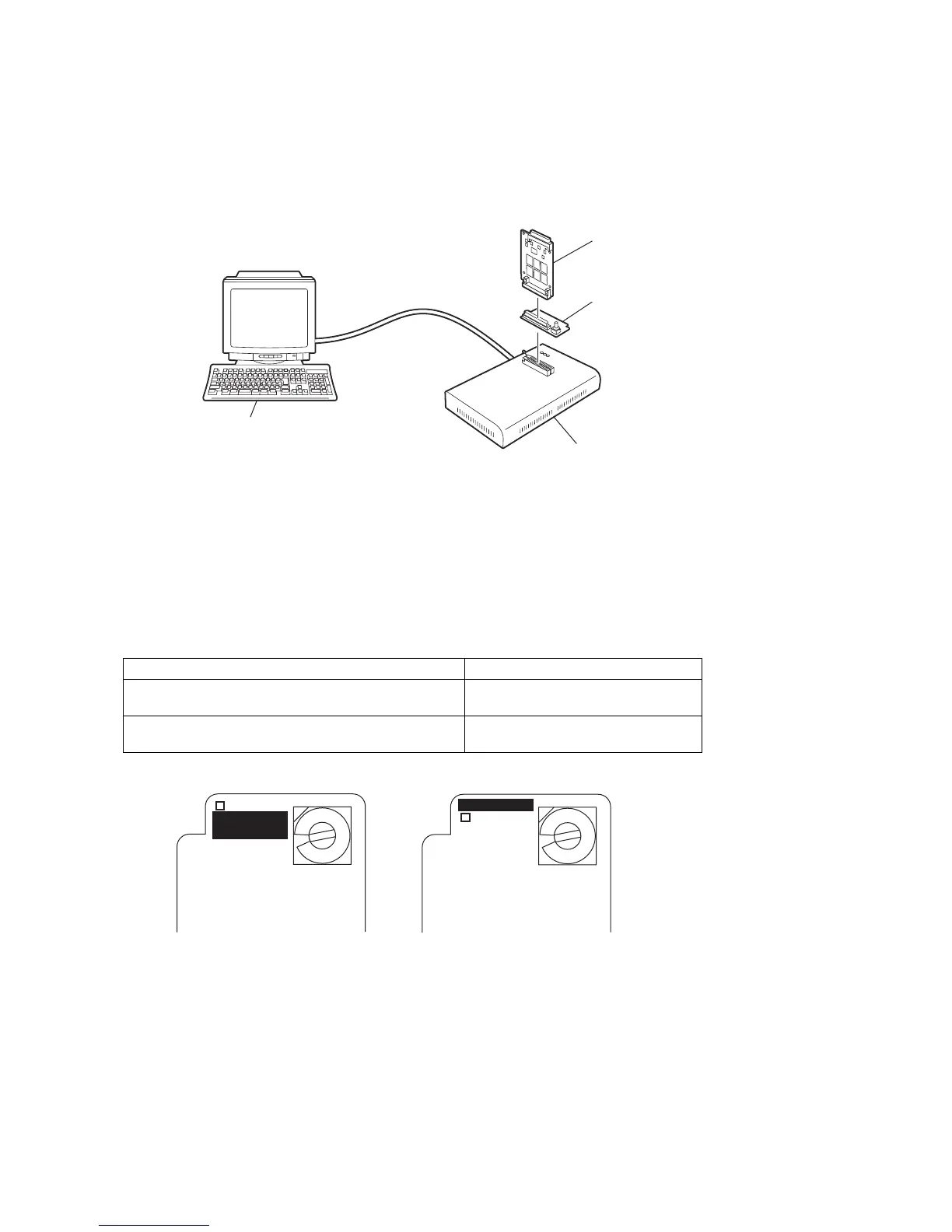

Fig. 6-10
Note: Note:
There are two types of the ROM writer adapter. Use the proper one according to the ROM writer
to be used. Applicable type of the adapter for the ROM writer can be confirmed by the model
name indicated on the board. Confirm that the adapter is available for the ROM writer to be used
before connecting them. If an unapplied adapter is connected, the application of the ROM writer
judges it as an error and writing the data cannot be implemented. Applicable combinations of the
ROM writer and adapter are as follows.
ROM writer ROM writer adapter
Minato Electronics MODEL 1881XP/1881UXP
(or equivalent)
PWA-DL-ADP-350-1881
(model 1881)
Minato Electronics MODEL 1893/1895/1931/1940
(or equivalent)
PWA-DL-ADP-350-1931
(model 1931)
Fig. 6-11
[PWA-DL-ADP-350-1881] [PWA-DL-ADP-350-1931]
PC
Download jig
(
PWA-DWNLD-350-JIG
)
ROM writer
ROM writer adapter
(
PWA-DL-ADP-350
)
model 1881
model 1931
(
LV650
)
08/04
