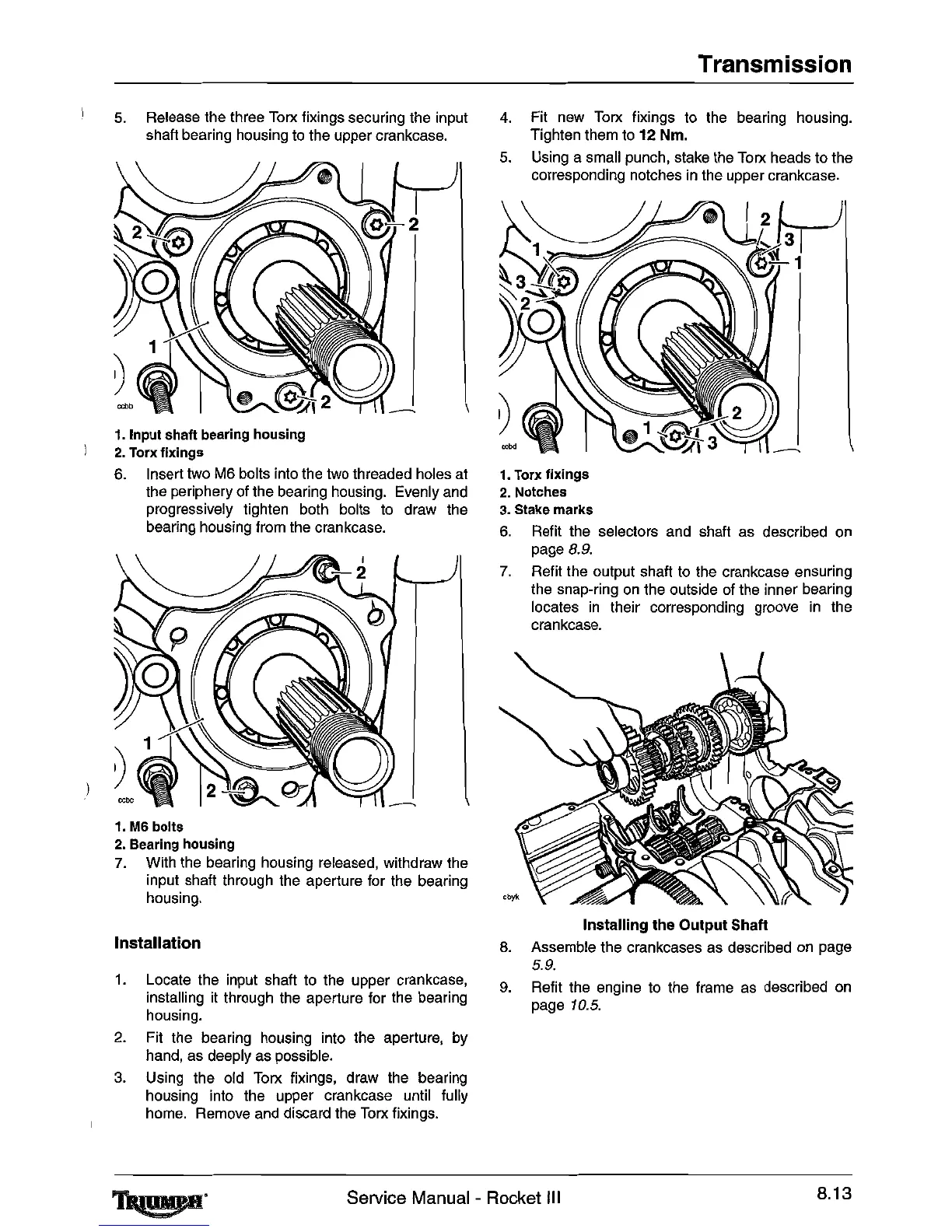

5.
Release the three
Torx
fixings securing the input
shaft bearing housing
to
the upper crankcase.
1.
Input shaft
bearing
housing
2.
Torx
fixings
6.
Insert two
M6
bolts into the
two
threaded holes at
the periphery
of
the bearing housing. Evenly
and
progressively tighten both bolts
to
draw the
bearing housing from the crankcase.
1.
M6
bolts
2.
Bearing housing
7.
With
the
bearing housing released, withdraw the
input shaft through the aperture for the bearing
housing.
Installation
1.
Locate the input shaft
to
the upper crankcase,
installing
it
through
the
aperture for the bearing
housing.
2.
Fit the bearing housing into the aperture,
by
hand,
as
deeply
as
possible.
3.
Using the
old
Torx
fixings, draw the bearing
housing into the upper crankcase until fully
home.
Remove
and
discard the
Torx
fixings.
Transmission
4.
Fit
new
Torx
fixings
to
the
bearing housing.
Tighten them
to
12 Nm.
5.
Using a small punch, stake the
Torx
heads to the
corresponding notches
in
the upper crankcase.
1.
Torx
fixings
2.
Notches
3.
Stake
marks
6.
Refit the selectors
and
shaft
as
described
on
page
8.9.
7.
Refit the output shaft
to
the
crankcase ensuring
the snap-ring
on
the outside
of
the inner bearing
locates
in
their corresponding groove
in
the
crankcase.
Installing the
Output Shaft
8.
Assemble the crankcases
as
described
on
page
5.9.
9.
Refit the engine
to
the frame
as
described
on
page 10.5.
~.
Service Manual - Rocket
III
8.13
