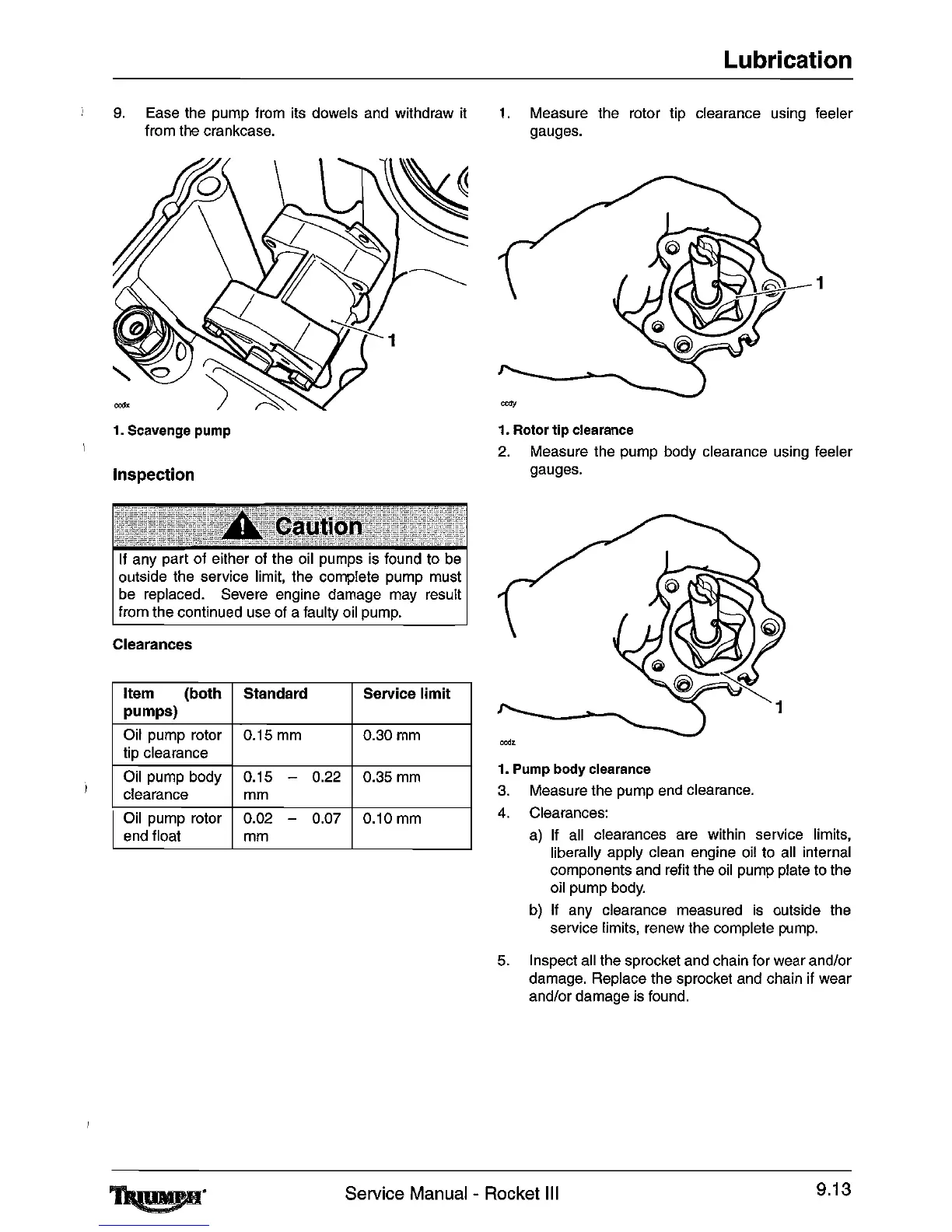

9. Ease the pump from its dowels and withdraw it
from the crankcase.
1. Scavenge pump
Inspection
If any part of either of the oil pumps is found to be
outside the service limit, the complete pump must
be replaced. Severe engine damage may result
from the continued use of a faulty oil pump.
Clearances
Item (both
Standard Service limit
pumps)
Oil pump rotor 0.15 mm 0.30 mm
tip clearance
Oil pump body 0.15
-
0.22 0.35 mm
clearance mm
Oil pump rotor 0.02
- 0.07 0.10 mm
end float
mm
Lubrication
1. Measure the rotor tip clearance using feeler
gauges.
1. Rotor tip clearance
2. Measure the pump body clearance using feeler
gauges.
1. Pump body clearance
3. Measure the pump end clearance.
4. Clearances:
a) If all clearances are within service limits,
liberally apply clean engine oil to all internal
components and refit the oil pump plate to the
oil pump body.
b) If any clearance measured is outside the
service limits, renew the complete pump.
5. Inspect all the sprocket and chain for wear and/or
damage. Replace the sprocket and chain if wear
and/or damage is found.
Service Manual - Rocket III
9.13
