Triumph Rocket III Service Manual

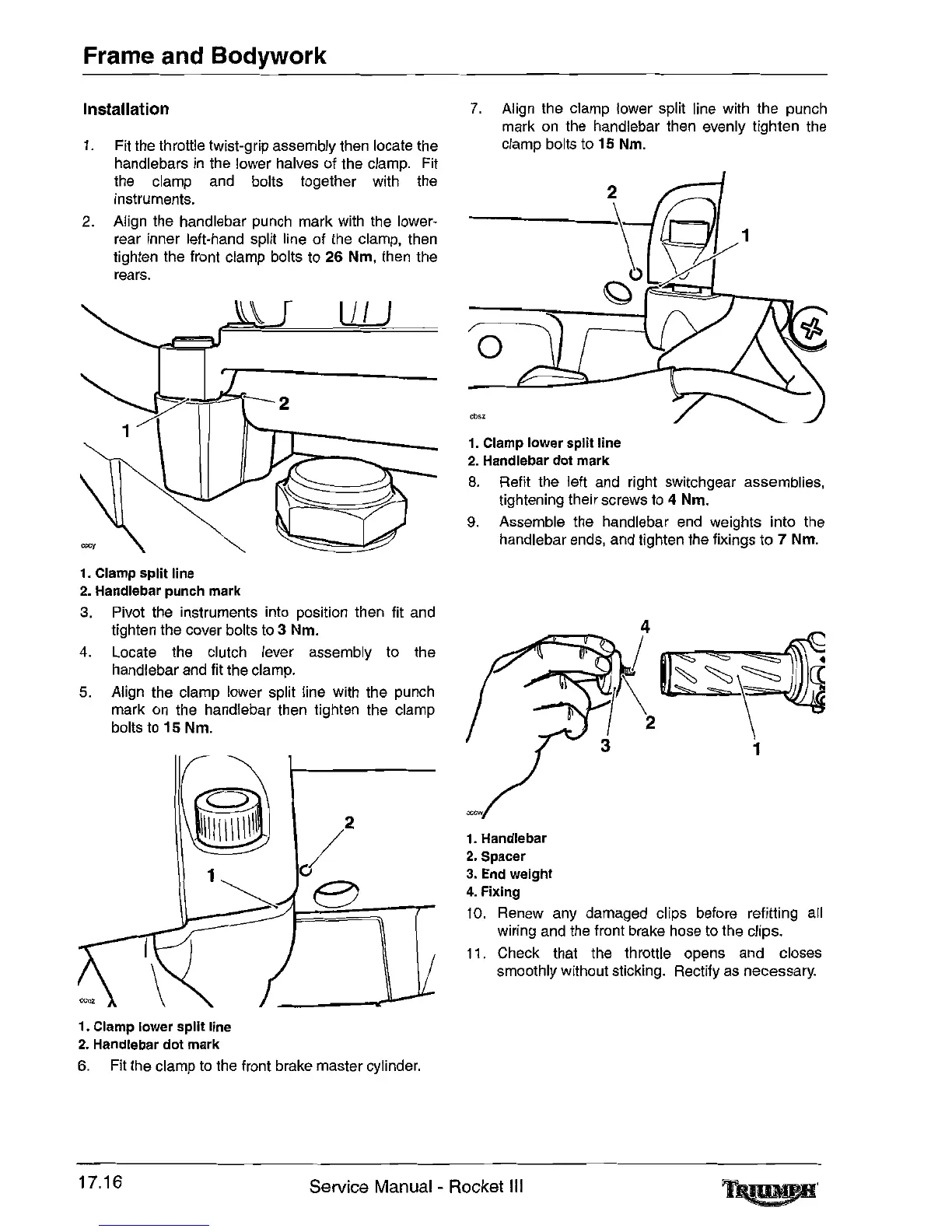

Frame and Bodywork
Installation
7. Align the clamp lower split line with the punch
mark on the handlebar then evenly tighten the
clamp bolts to 15 Nm.
Cbsz
o
1. Clamp lower split line
2. Handlebar dot mark
8. Refit the ieft and right switchgear assemblies,
tightening their screws to 4 Nm.
9. Assemble the handlebar end weights into the
handlebar ends, and tighten the fixings to 7 Nm.
lliJ
1. Fit the throttle twist-grip assembly then locate the
handlebars in the lower halves of the clamp. Fit
the clamp and bolts together with the
instruments.
2. Align the handlebar punch mark with the lower-
rear inner left-hand split line of the clamp, then
tighten the front clamp bolts to 26 Nm, then the
rears.
--r7"~~"ie----... 2
1
A II,-y---_
1. Handlebar
2. Spacer
3. End weight
4. Fixing
10. Renew any damaged clips before refitting all
wiring and the front brake hose to the clips.
11. Check that the throttle opens and closes
smoothly without sticking. Rectify as necessary.
2
/
e
<:::::::>
\I \\\\\\\\
1~
~~-,-
1. Clamp split line
2. Handlebar punch mark
3. Pivot the instruments into position then fit and
tighten the cover bolts to 3 Nm.
4. Locate the clutch lever assembly to the
handlebar and fit the clamp.
5. Align the clamp lower split line with the punch
mark on the handlebar then tighten the clamp
bolts to 15 Nm.
1. Clamp lower split line
2. Handlebar
dot mark
6. Fit the clamp to the front brake master cylinder.
17.16
Service Manual - Rocket III

Triumph Rocket III Specifications

General

Compression Ratio	10.0:1
Final Drive	Shaft
Transmission	5-speed
Rear Brakes	Single 316mm disc, 2-piston caliper
Front Tire	150/80 R17
Rear Tire	240/50 R16
Dry Weight	320 kg (705 lbs)
Fuel System	Electronic fuel injection
Exhaust	3-into-1 into 2
Clutch	Wet, multi-plate
Frame	Tubular steel, twin spine
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 320mm floating discs, 4-piston calipers
Front Wheel	17 x 3.5 in
Fuel Tank Capacity	24 liters (6.3 US gal)
Engine Type	Liquid-cooled, DOHC, in-line 3-cylinder
