WheelslTyres

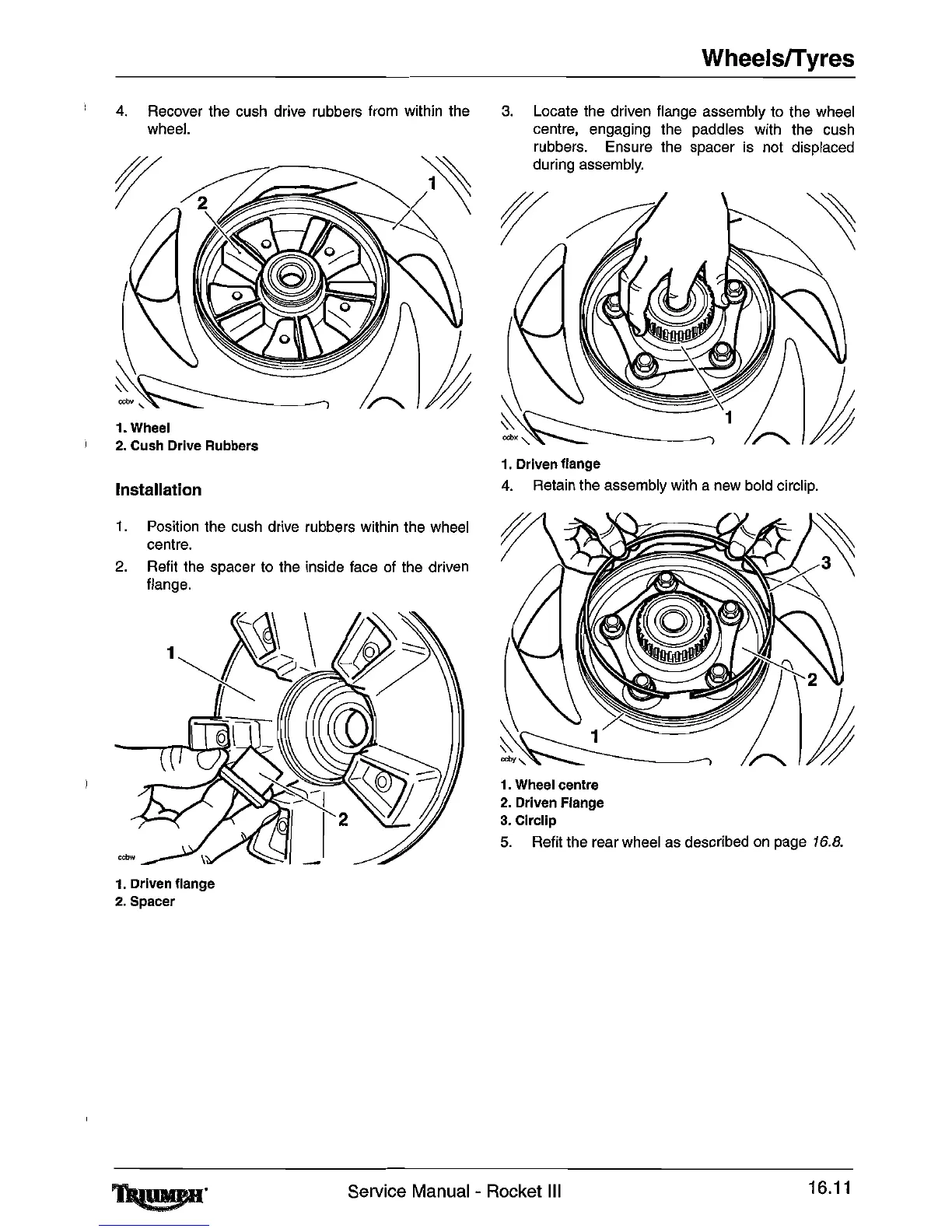

4. Recover the cush drive rubbers from within the 3. Locate the driven flange assembly to the wheel
wheel. centre, engaging the paddles with the cush
rubbers. Ensure the spacer
is not displaced
~~~ ~ j';~ ,,,,mbO
-----,
1. Wheel
2. Cush Drive Rubbers
Installation
1. Position the cush drive rubbers within the wheel
centre.
2. Refit the spacer to the inside face of the driven
flange.
1. Driven flange
2. Spacer
1. Driven flange
4. Retain the assembly with a new bold circlip.
1. Wheel centre
2. Driven Flange
3. Circlip
5. Refit the rear wheel as described on page 16.8.
Service Manual - Rocket III
16.11

Triumph Rocket III Specifications

General

Compression Ratio	10.0:1
Final Drive	Shaft
Transmission	5-speed
Rear Brakes	Single 316mm disc, 2-piston caliper
Front Tire	150/80 R17
Rear Tire	240/50 R16
Dry Weight	320 kg (705 lbs)
Fuel System	Electronic fuel injection
Exhaust	3-into-1 into 2
Clutch	Wet, multi-plate
Frame	Tubular steel, twin spine
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 320mm floating discs, 4-piston calipers
Front Wheel	17 x 3.5 in
Fuel Tank Capacity	24 liters (6.3 US gal)
Engine Type	Liquid-cooled, DOHC, in-line 3-cylinder
