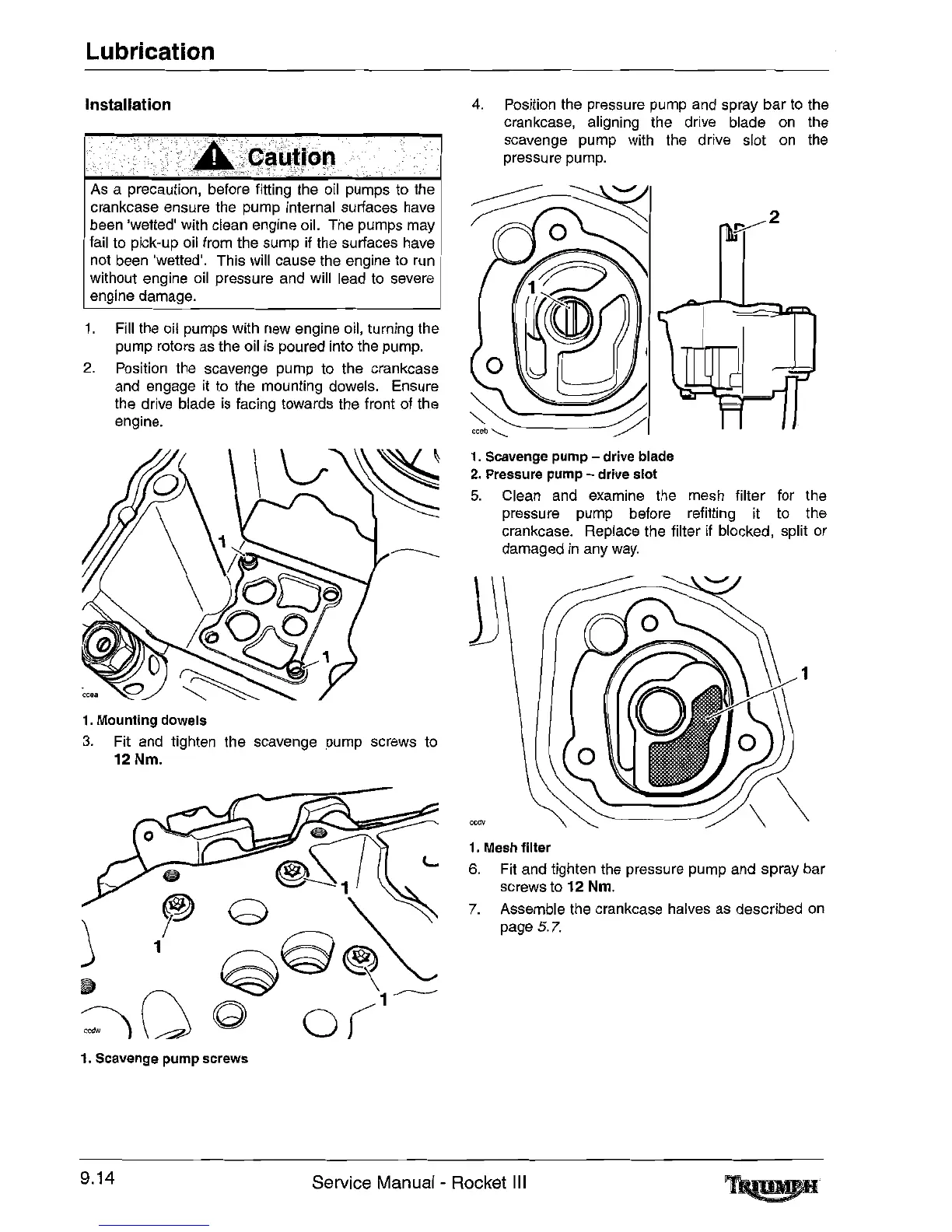

Lubrication
Installation
As
a precaution, before fitting the
oil
pumps to the
crankcase ensure the pump internal surfaces
have
been 'wetted' with clean engine oil. The pumps may
fail to pick-up oil from the sump if the surfaces have
not been 'wetted'. This will cause the engine to run
without engine
oil
pressure and will lead to severe
engine damage.
1.
Fill the oil pumps with new engine oil, turning the
pump rotors as the oil is poured into the pump.
2.
Position the scavenge pump to the crankcase
and engage it to the mounting dowels. Ensure
the drive blade
is
facing towards the front of the
engine.
1.
Mounting dowels
3.
Fit and tighten the scavenge pump screws to
12Nm.
1. Scavenge pump screws
4.
Position the pressure pump and spray bar
to
the
crankcase, aligning the drive blade
on
the
scavenge pump with
the
drive slot
on
the
pressure pump.
1.
Scavenge pump - drive blade
2.
Pressure
pump
- drive slot
5.
Clean and examine the mesh filter for the
pressure pump before refitting it to the
crankcase. Replace the filter
if
blocked, split or
damaged
in
any
way.
1.
Mesh
filler
6.
Fit and tighten the pressure pump and spray bar
screws to 12 Nm.
7.
Assemble the crankcase halves
as
described
on
page 5.7.
9.14
Service Manual - Rocket III
