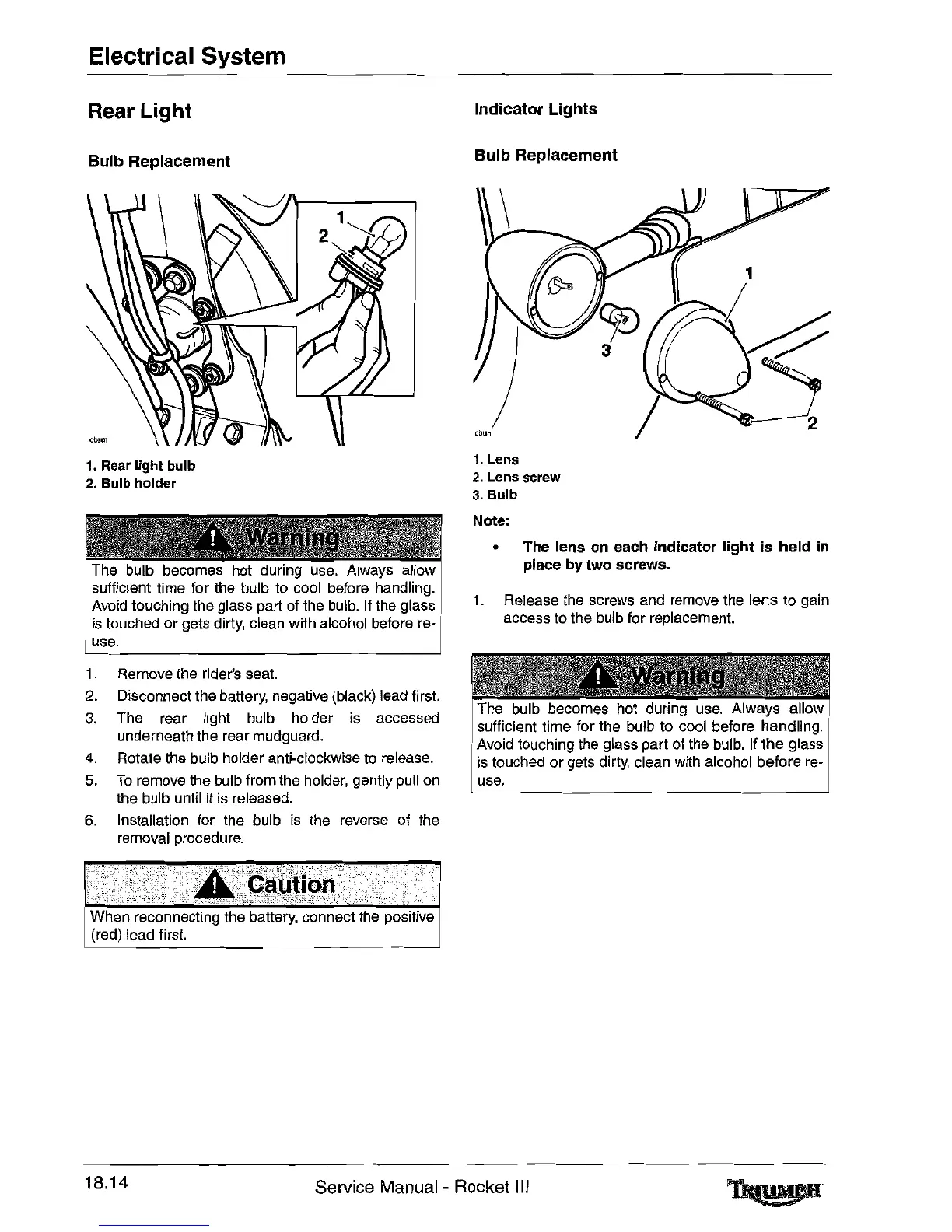

Triumph Rocket III Service Manual

Electrical System
Rear Light
Bulb Replacement
Indicator
Lights
Bulb Replacement
1. Lens
2. Lens screw
3. Bulb
Note:
1. Rear light bulb
2. Bulb holder
The bulb becomes hot during use. Always allow
sufficient time for the
bUlb to cool before handling.
Avoid touching the glass part of the bulb. If the glass
Is touched or gets dirty, clean with alcohol before re-
use.
1.
•
The lens on each indicator light is held in
place by two screws.
Release the screws and remove the lens to gain
access to the bulb for replacement.
1. Remove the rider's seat.
2. Disconnect the battery, negative (black) lead first.
3. The rear light bulb holder is accessed
underneath the rear mudguard.
4. Rotate the bulb holder anti-clockwise to release.
5. To remove the bulb from the holder, gently pull on
the bulb until it is released.
6. Installation for the bulb is the reverse of the
removal procedure.
When reconnecting the battery, connect the positive
(red) lead first.
The bulb becomes hot during use. Always allow
sufficient time for the bulb to cool before handling.
Avoid touching the glass part of the bulb. If
the glass
is touched or gets dirty, clean with alcohol before re-
use.
18.14
Service Manual - Rocket III

Triumph Rocket III Specifications

General

Compression Ratio	10.0:1
Final Drive	Shaft
Transmission	5-speed
Rear Brakes	Single 316mm disc, 2-piston caliper
Front Tire	150/80 R17
Rear Tire	240/50 R16
Dry Weight	320 kg (705 lbs)
Fuel System	Electronic fuel injection
Exhaust	3-into-1 into 2
Clutch	Wet, multi-plate
Frame	Tubular steel, twin spine
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 320mm floating discs, 4-piston calipers
Front Wheel	17 x 3.5 in
Fuel Tank Capacity	24 liters (6.3 US gal)
Engine Type	Liquid-cooled, DOHC, in-line 3-cylinder
