General Information

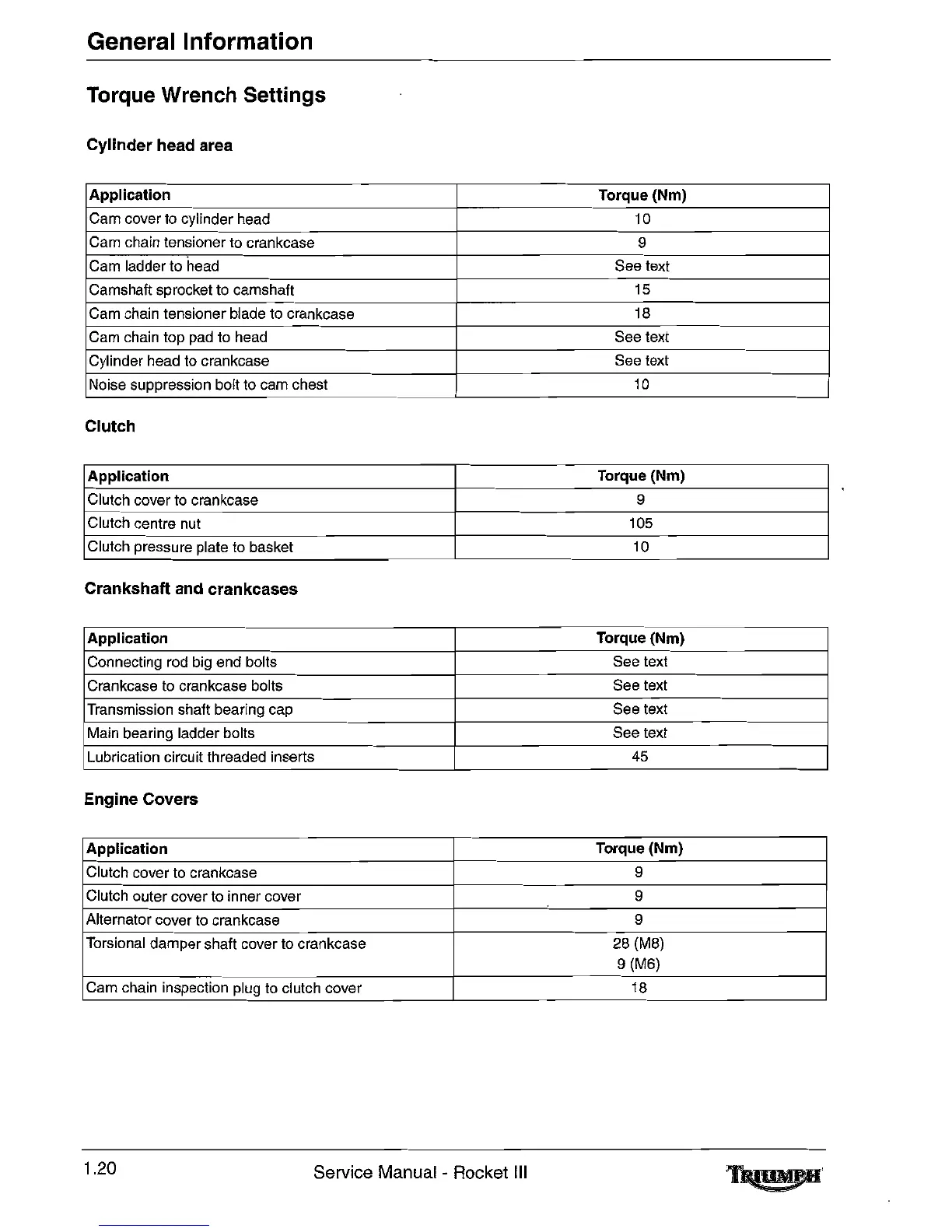

Torque Wrench Settings
Cylinder head
area
Application Torque (Nm)
Cam cover to cylinder head
10
Cam chain tensioner to crankcase
9
Cam ladder to head See text
Camshaft sprocket to camshaft 15
Cam chain tensioner blade to crankcase 18
Cam chain top pad to head See text
Cylinder head to crankcase See text
Noise suppression bolt to cam chest 10
Clutch
Application Torque (Nm)
Clutch cover to crankcase 9
Clutch centre nut 105
Clutch pressure plate
to
basket
10
Crankshaft
and
crankcases
Application
Torque (Nm)
Connecting rod big end bolts See text
Crankcase to crankcase bolts See text
Transmission shaft bearing cap
See text
Main bearing ladder bolts See text
Lubrication circuit threaded inserts 45
Engine
Covers
Application
Torque
(Nm)
Clutch cover to crankcase 9
Clutch outer cover to inner cover 9
Alternator cover to crankcase
9
Torsional damper shaft cover to crankcase
28 (M8)
9 (M6)
Cam chain inspection plug to clutch cover 18
1.20
Service Manual - Rocket '"
