Triumph Rocket III Service Manual

Electrical System

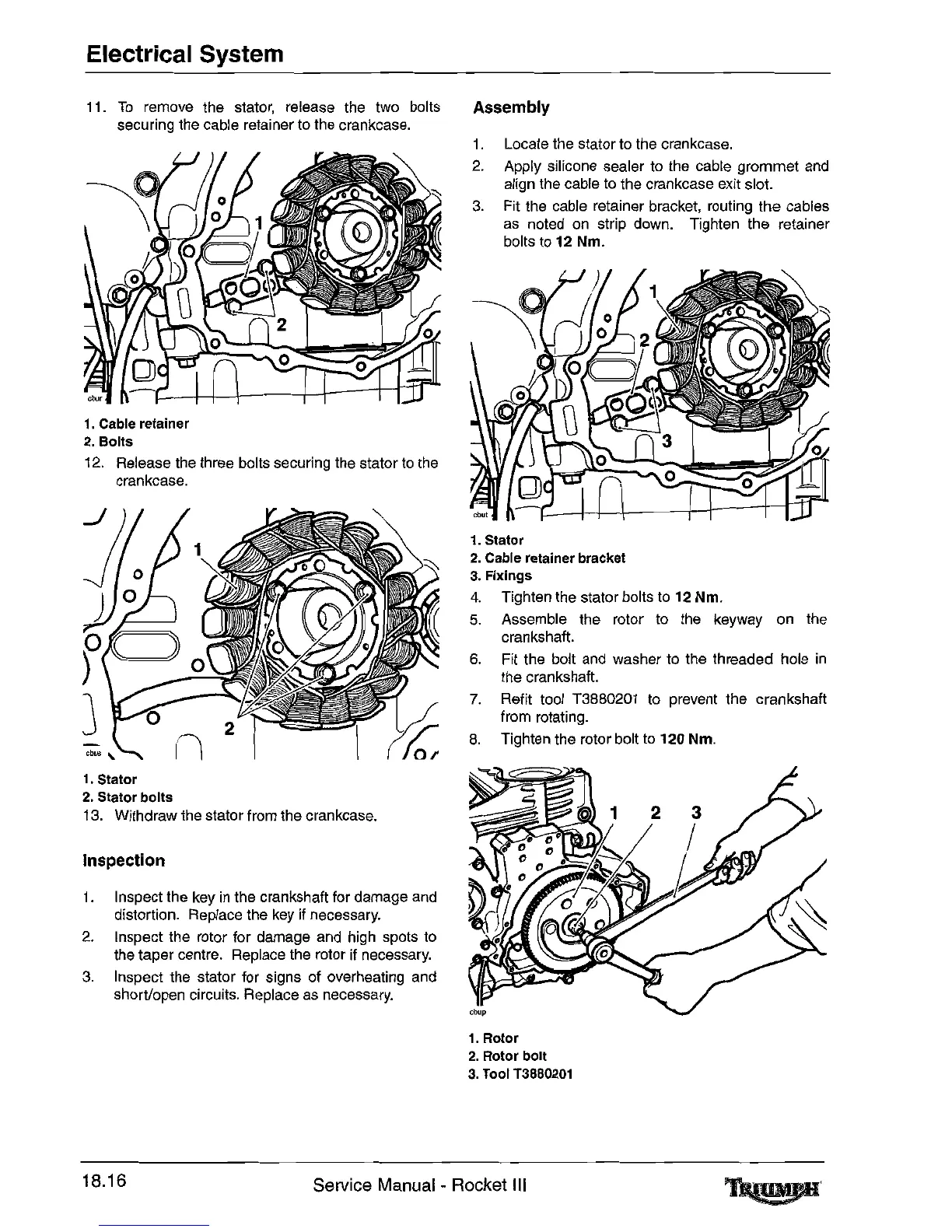

11. To remove the stator, release the two bolts
securing the cable retainer to the crankcase.
1. Cable retainer
2. Bolts
12. Release the three bolts securing the stator to the
crankcase.
1. Stator
2. Stator bolts
13. Withdraw the stator from the crankcase.
Inspection
1. Inspect the key in the crankshaft for damage and
distortion. Replace the key if necessary.
2. Inspect the rotor for damage and high spots to
the taper centre. Replace the rotor if necessary.
3. Inspect the stator for signs of overheating and
short/open circuits. Replace as necessary.
Assembly
1. Locate the stator to the crankcase.
2. Apply silicone sealer to the cable grommet and
align the cable to the crankcase exit slot.
3. Fit the cabie retainer bracket, routing the cables
as noted on strip down. Tighten the retainer
bolts to 12 Nm.
1. Stator
2. Cable retainer bracket
3. Fixings
4. Tighten the stator bolts to 12 Nm.
5. Assemble the rotor to the keyway on the
crankshaft.
6. Fit the bolt and washer to the threaded hole in
the crankshaft.
7. Refit tool T3880201 to prevent the crankshaft
from rotating.
8. Tighten the rotor bolt to 120 Nm.
1. Rotor
2. Rotor bolt
3. Tool T3880201
18.16
Service Manual - Rocket III

Triumph Rocket III Specifications

General

Compression Ratio	10.0:1
Final Drive	Shaft
Transmission	5-speed
Rear Brakes	Single 316mm disc, 2-piston caliper
Front Tire	150/80 R17
Rear Tire	240/50 R16
Dry Weight	320 kg (705 lbs)
Fuel System	Electronic fuel injection
Exhaust	3-into-1 into 2
Clutch	Wet, multi-plate
Frame	Tubular steel, twin spine
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 320mm floating discs, 4-piston calipers
Front Wheel	17 x 3.5 in
Fuel Tank Capacity	24 liters (6.3 US gal)
Engine Type	Liquid-cooled, DOHC, in-line 3-cylinder
