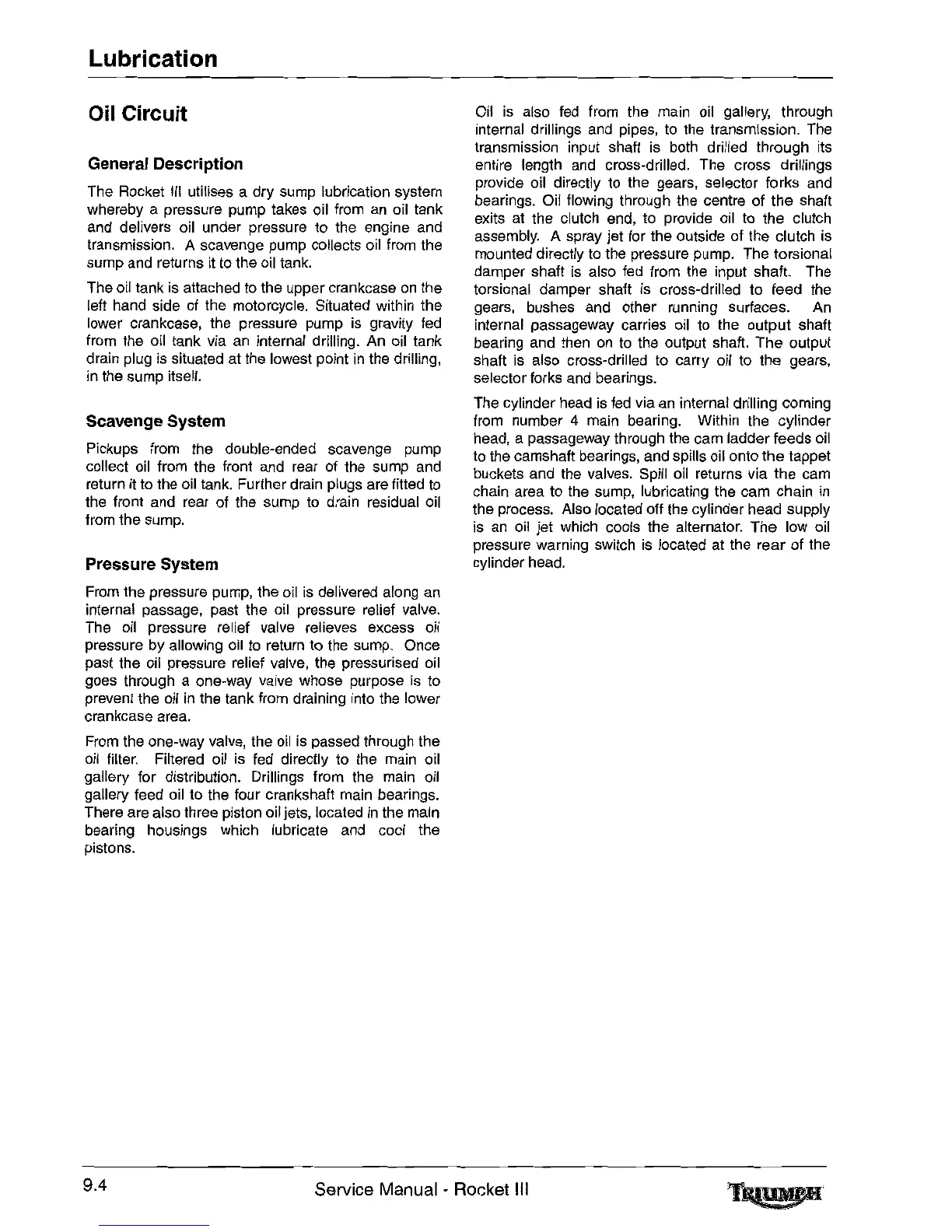

Lubrication
Oil Circuit
General Description
The Rocket
III
utilises a dry sump iubrication system
whereby a pressure pump takes oil from
an
oil tank
and delivers oil under pressure to the engine and
transmission. A scavenge pump coliects oil from the
sump and returns it to the oil tank.
The oil tank is attached to the upper crankcase
on
the
ieft hand side of the motorcycle. Situated within the
lower crankcase, the pressure pump is gravity
fed
from the oil tank via
an
internal drilling.
An
oil
tank
drain plug is situated at the lowest point
in
the drilling,
in
the sump itself.
Scavenge System
Pickups from the double-ended scavenge pump
coliect
oil
from the front and rear of the sump and
return it to the
oil
tank. Further drain plugs are fitted to
the front and rear of the sump
to
drain residual oil
from the sump.
Pressure System
From the pressure pump, the oil is delivered along an
internal passage, past the
oil
pressure relief valve.
The
oil
pressure relief valve relieves excess oil
pressure by aliowing
oil
to return to the sump. Once
past the oil pressure relief valve, the pressurised oil
goes through a one-way valve whose purpose is to
prevent the
oil
in
the tank from draining into the lower
crankcase area.
From
the one-way valve, the
oil
is passed through the
oil
filter. Filtered oil is fed directly to the main oil
gallery for distribution. Drillings from the main oil
galiery feed
oil
to the four crankshaft main bearings.
There are also three piston oil jets, located
in
the main
bearing housings which lubricate and cool the
pistons.
Oil is also
fed
from the main
oil
gallery, through
internal drillings and pipes, to the transmission. The
transmission input shaft is both drilled through its
entire length
and
cross-drilled. The cross drillings
provide oil directly to the gears, selector forks and
bearings. Oil flowing through the centre of the shaft
exits
at
the clutch end, to provide oil to the clutch
assembly. A spray jet for the outside of the clutch is
mounted directly to the pressure pump. The torsional
damper shaft
is
also
fed
from the input shaft. The
torsional damper shaft is cross-drilled to feed the
gears, bushes and other running surfaces.
An
internal passageway carries
oil
to the output shaft
bearing and then
on
to the output shaft. The output
shaft is also cross-drilled to carry oil to the gears,
selector forks and bearings.
The cylinder head
is
fed
via
an
internal driliing coming
from number 4 main bearing. Within the cylinder
head, a passageway through the cam ladder feeds
oil
to the camshaft bearings, and spills oil onto the tappet
buckets and the valves. Spill
oil
returns via the
cam
chain area to the sump, lubricating the cam chain
in
the process. Also located off the cylinder head supply
is
an
oii jet which cools the alternator. The low oil
pressure warning switch
is
located at the rear of the
cylinder head.
9.4
Service Manual - Rocket
III
