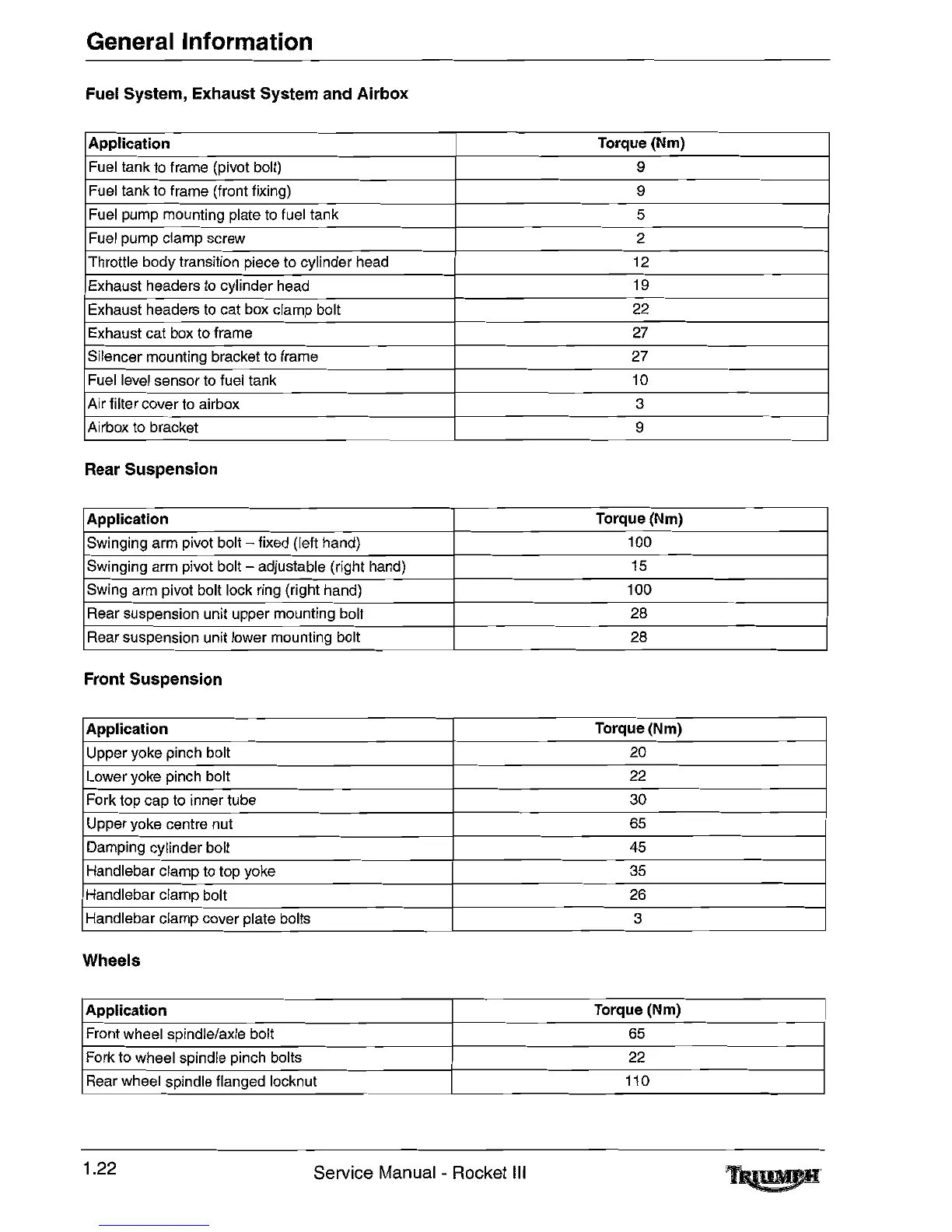

Triumph Rocket III Service Manual

General Information
Fuel System, Exhaust System and Airbox
Application Torque (Nm)
Fuel tank to frame (pivot bolt) 9
Fuel tank to frame (front fixing) 9
Fuel pump mounting plate to fuel tank 5
Fuel pump clamp screw 2
Throttle body transition piece to cylinder head 12
Exhaust headers to cylinder head 19
Exhaust headers to cat box clamp bolt 22
Exhaust cat box to frame 27
Silencer mounting bracket to frame 27
Fuel level sensor to fuel tank 10
Air filter cover to airbox 3
Airbox to bracket
9
Rear Suspension
Application
Torque (Nm)
Swinging arm pivot bolt - fixed (left hand)
100
Swinging arm pivot bolt - adjustable (right hand) 15
Swing arm pivot bolt lock ring (right hand) 100
Rear suspension unit upper mounting bolt 28
Rear suspension unit lower mounting bolt
28
Front Suspension
Application
Torque (Nm)
Upper yoke pinch bolt 20
Lower yoke pinch bolt
22
Fork top cap to inner tube 30
Upper yoke centre nut 65
Damping cylinder bolt 45
Handlebar clamp to top yoke
35
Handlebar clamp bolt 26
Handlebar clamp cover plate bolts 3
Wheels
Application Torque (Nm)
Front wheel spindle/axle bolt 65
Fork to wheel spindle pinch bolts 22
Rear wheel spindle f1anged locknut 110
1.22
Service Manual - Rocket III
