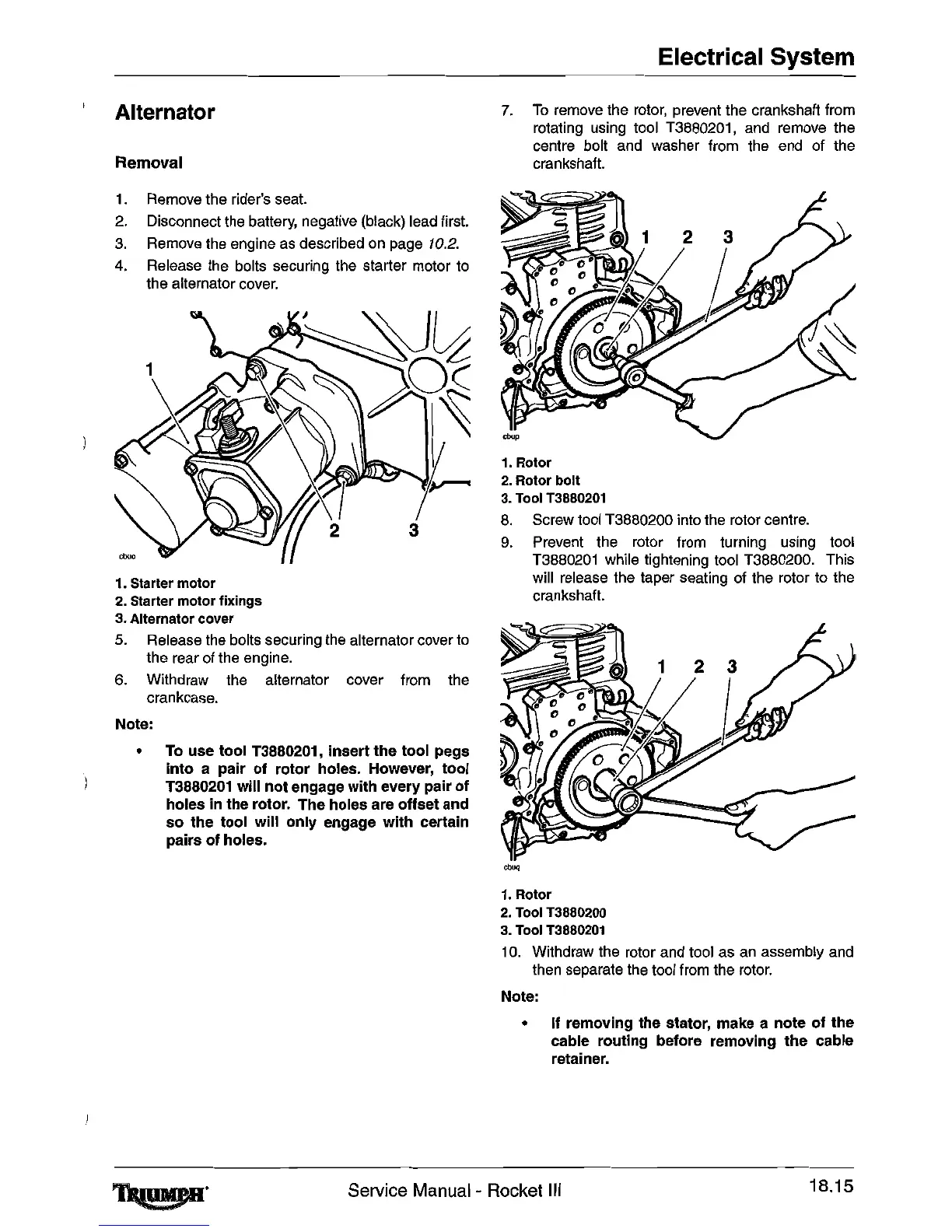

Alternator
Removal
1.
Remove the rider's seat.
2.
Disconnect the battery, negative (black) lead first.
3.
Remove the engine
as
described on page 10.2.
4.
Release the bolts securing the starter motor
to
the alternator
cover.
1.
Starter motor
2.
Starter motor fixings
3.
Alternator cover
5.
Release the bolts securing the alternator cover
to
the rear
of
the engine.
6.
Withdraw
the
alternator cover from the
crankcase.
Note:
• To use
tool
T3880201, insert
the
tool
pegs
into
a pair
of
rotor holes. However,
tool
T3880201 will
not
engage with every pair
of
holes in the rotor. The holes are offset and
so
the tool
will
only engage
with
certain
pairs
of
holes.
Electrical System
7.
To
remove the
rotor,
prevent the crankshaft from
rotating using tool T3880201,
and
remove
the
centre bolt
and
washer from
the
end of the
crankshaft.
1.
Rotor
2.
Rotor bolt
3.
Tool
T3880201
8.
Screw tool T3880200 into
the
rotor centre.
9.
Prevent the rotor from turning using tool
T38B0201
while tightening tool T3880200. This
will release the taper seating
of
the rotor to the
crankshaft.
-
1.
Rotor
2.
TooIT3880200
3.
Tool
T3880201
10.
Withdraw
the
rotor and tool
as
an
assembly and
then separate
the
tool from the
rotor.
Note:
• If removing the stator, make a note
of
the
cable routing before removing
the
cable
retainer.
Service
Manual-
Rocket
III
18.15
