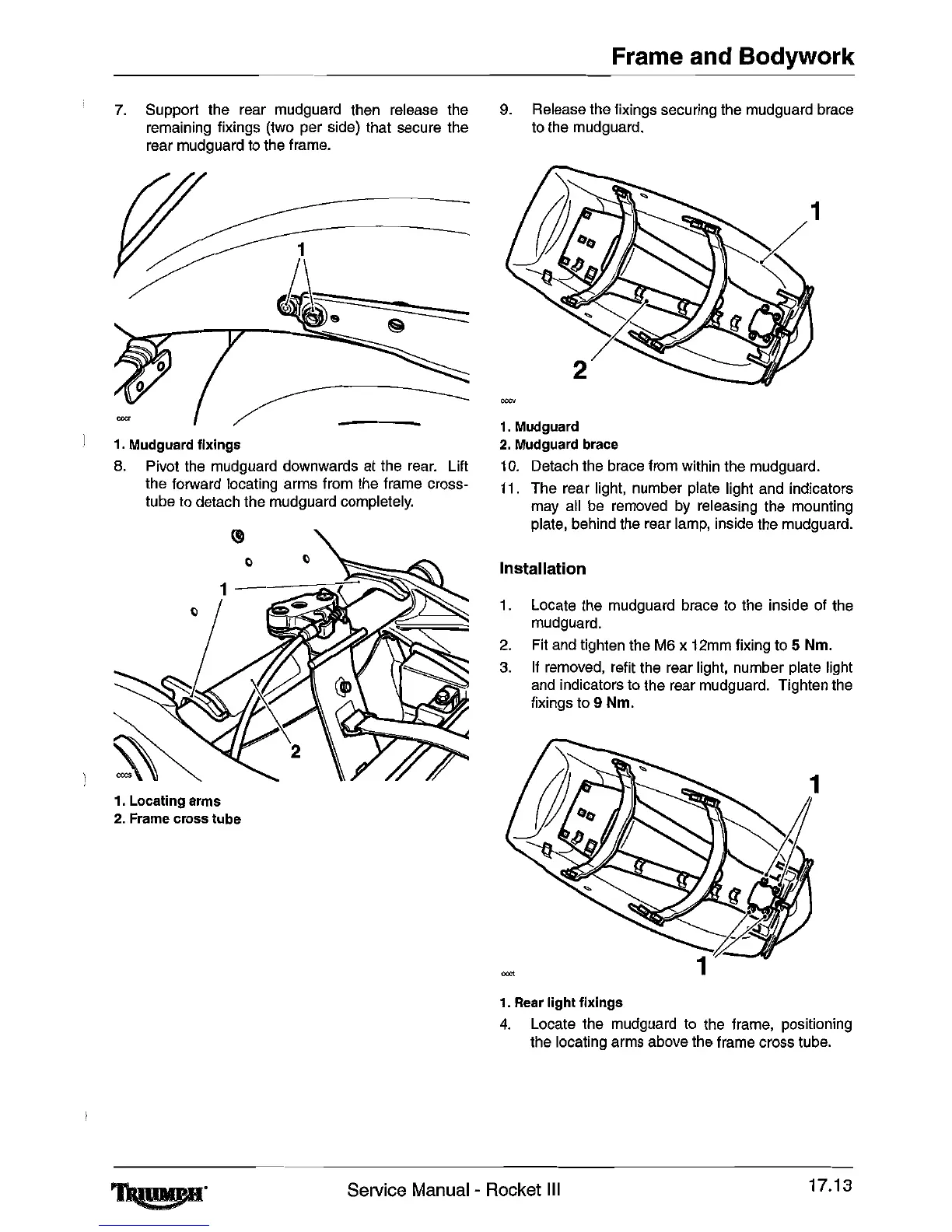

Triumph Rocket III Service Manual

Frame and Bodywork
7. Support the rear mudguard then release the
remaining fixings (two per side) that secure the
rear mudguard to the frame.
g. Release the fixings securing the mudguard brace
to the mudguard.
1. Locating arms
2. Frame cross tube
Installation
1. Locate the mudguard brace to the inside of the
mudguard.
2. Fit and tighten the M6 x 12mm fixing to 5 Nm.
3. If removed, refit the rear light, number plate light
and indicators to the rear mudguard. Tighten the
fixings to 9 Nm.
1. Mudguard
2. MUdguard brace
10. Detach the brace from within the mUdguard.
11. The rear light, number plate light and indicators
may all be removed by releasing the mounting
plate, behind the rear lamp, inside the mUdguard.
--=
1. Mudguard flxlngs
8. Pivot the mudguard downwards at the rear. Lift
the forward locating arms from the frame cross-
tube to detach the mudguard completely.
1. Rear light flxlngs
4. Locate the mudguard to the frame, positioning
the locating arms above the frame cross tube.
Service Manual- Rocket III
17.13
