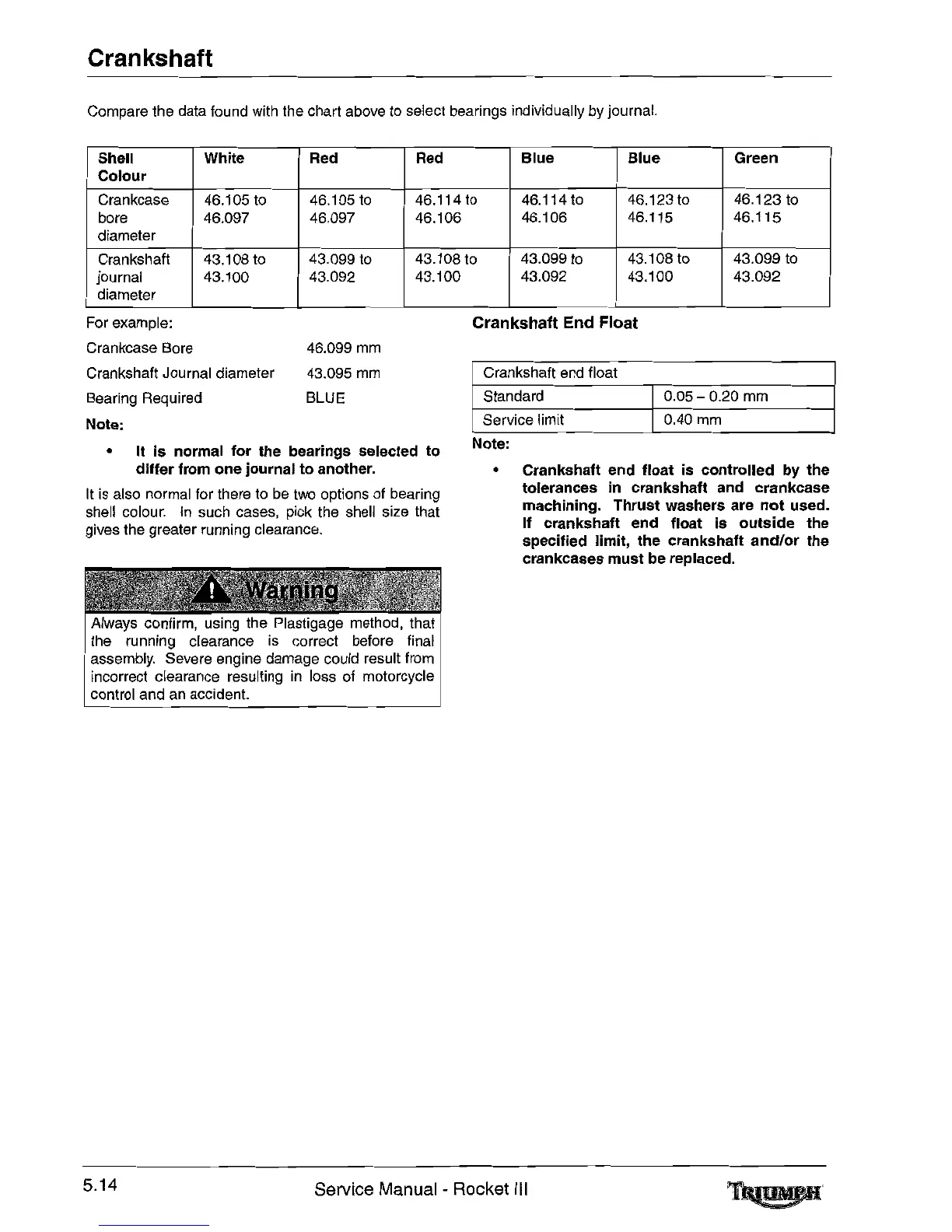

Crankshaft
Compare the data found with the chart above to select bearings individually
by
journal.
Shell White
Red
Red
Blue Blue Green
Colour
Crankcase 46.105 to 46.105
to
46.114 to 46.114 to 46.123 to 46.123 to
bore 46.097 46.097 46.106 46.106 46.115 46.115
diameter
Crankshaft
43.108 to 43.099 to
43.108to
43.099 to
43.108to
43.099 to
journal
43.100 43.092 43.100 43.092 43.100 43.092
diameter
BLUE
46.099
mm
43.095
mm
For example:
Crankcase Bore
Crankshaft Journal diameter
Bearing Required
Note:
•
It
is
normal for the bearings selected to
differ
from
one journal
to
another.
It is also normai for there to
be
two options
of
bearing
shell colour.
In
such cases, pick the shell size that
gives the greater running clearance.
Always confirm, using the Plastigage method, that
the running clearance is correct before final
assembly.
Severe engine damage could result from
incorrect clearance resulting
in
loss of motorcycle
control and an accident.
Crankshaft End Float
Crankshaft end float
Standard 0.05 - 0.20 mm
Service limit 0.40
mm
Note:
• Crankshaft end float
is
controlled
by
the
tolerances
in
crankshaft
and
crankcase
machining. Thrust washers are not used.
If
crankshaft end float
is
outside the
specified limit, the crankshaft and/or the
crankcases must
be
replaced.
5.14
Service Manual - Rocket III
