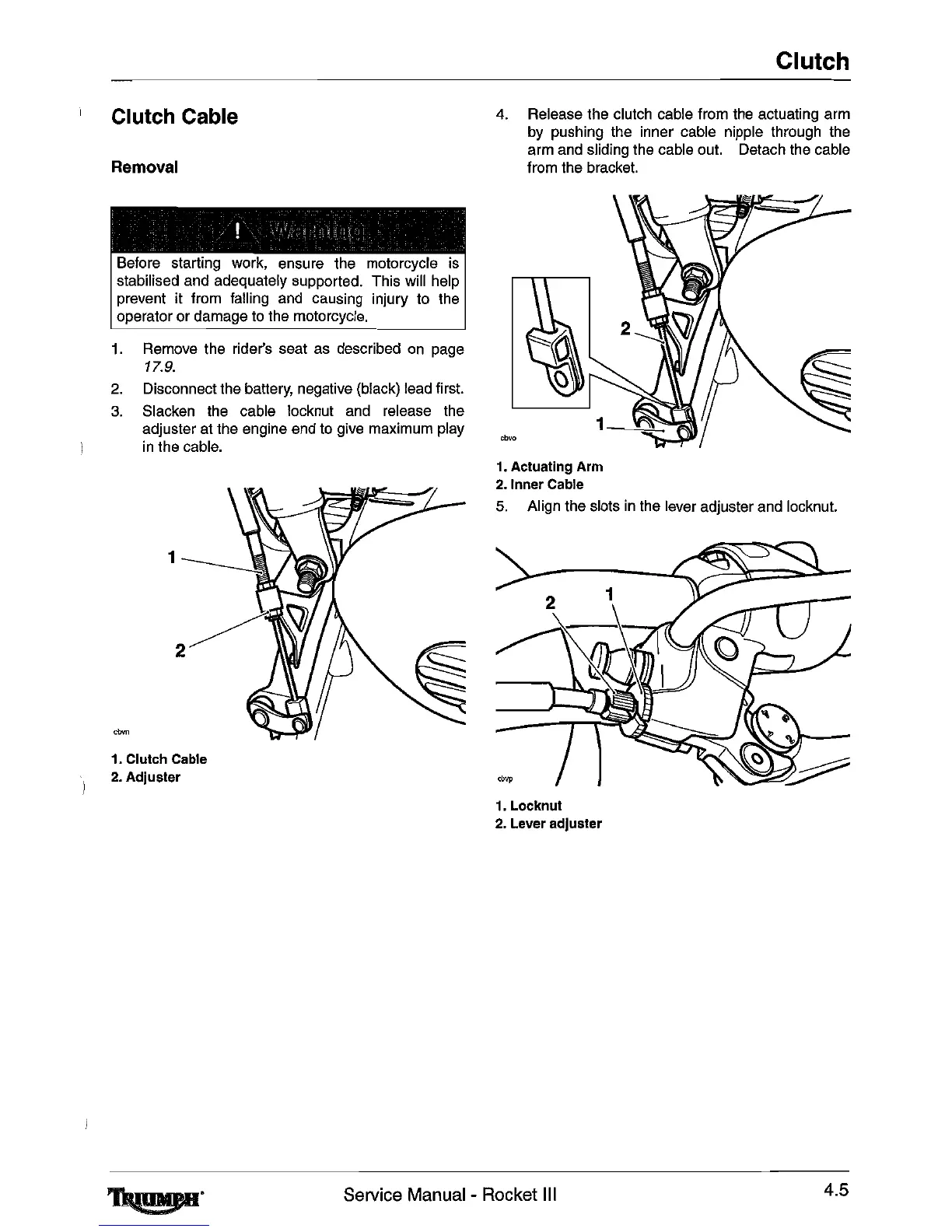

Clutch Cable
Removal
Before starting work, ensure the motorcycle
is
stabilised and adequately supported. This will help
prevent it from falling
and
causing injury to
the
operator or damage
to
the
motorcycle.
1.
Remove the rider's seat
as
described
on
page
17.9.
2.
Disconnect the battery, negative (black) lead first.
3.
Slacken
the
cable locknut
and
release the
adjuster at the engine end to
give
maximum play
in
the cable.
1. Clutch Cable
2.
Adjuster
Clutch
4.
Release the clutch cable from the actuating arm
by
pushing the inner cable nipple through the
arm and sliding the cable out. Detach
the
cable
from the bracket.
1.
Actuating Arm
2.
Inner Cable
5.
Align the slots
in
the lever adjuster and locknut.
1.
Locknut
2.
Lever adjuster
Service
Manual-
Rocket
III
4.5
