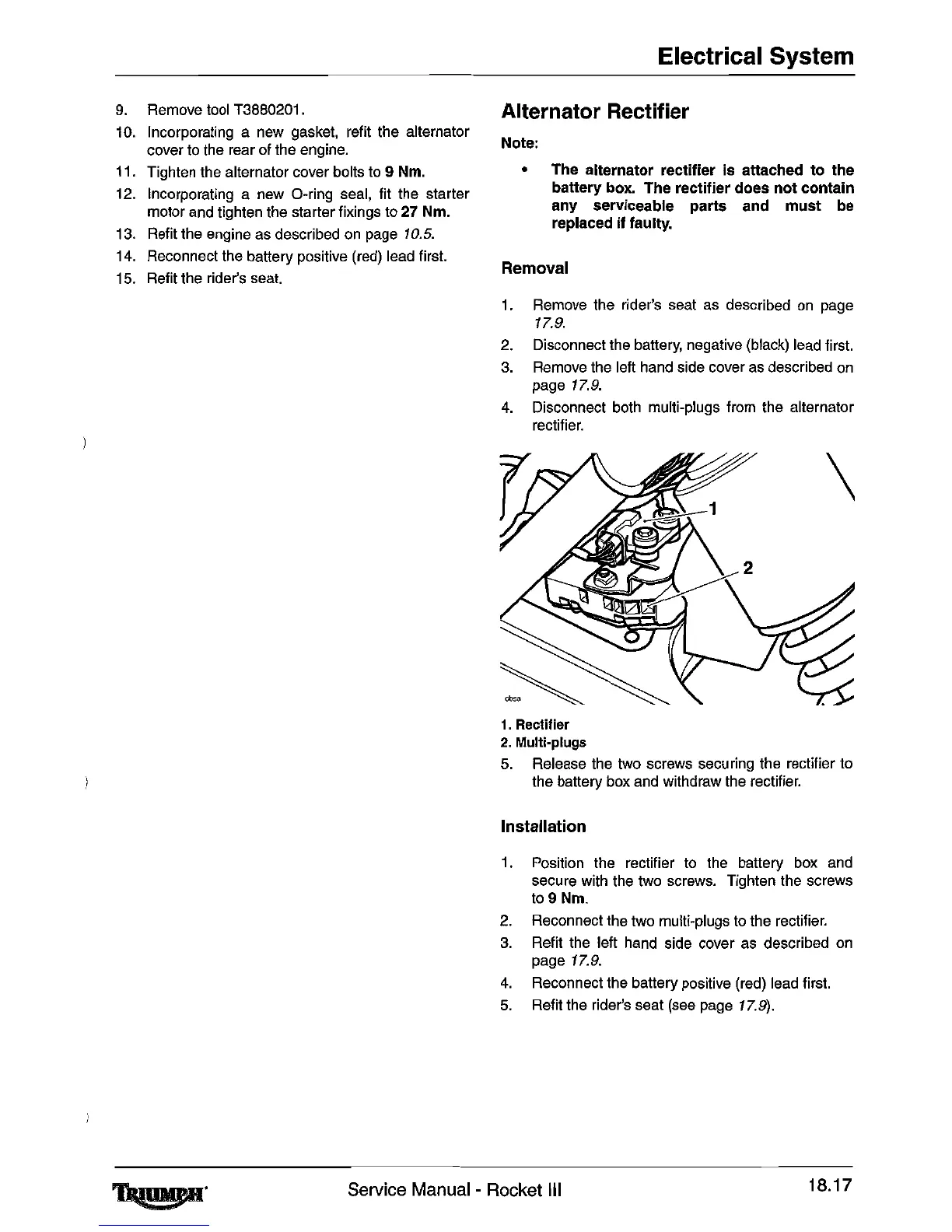

9.
Remove
tool
T3880201
.
10.
Incorporating a
new
gasket, refit the alternator
cover
to
the rear
of
the engine.
11.
Tighten the alternator cover bolts
to
9 Nm.
12.
Incorporating a new a-ring seal, fit the starter
motor
and
tighten the starter fixings
to
27 Nm.
13.
Refit the engine
as
described
on
page 10.5.
14.
Reconnect the battery positive
(red)
lead first.
15.
Refit the rider's seat.
Electrical System
Alternator Rectifier
Note:
• The alternator rectifier
is
attached
to
the
battery box. The rectifier does not contain
any serviceable parts and
must
be
replaced
if
faUlty.
Removal
1.
Remove
the rider's seat
as
described
on
page
17.9.
2.
Disconnect the battery, negative (black)
lead
first.
3.
Remove the left hand side cover
as
described
on
page 17.9.
4.
Disconnect
both
multi-plugs from the alternator
rectifier.
\
1.
Rectifier
2. Multi-plugs
5.
Release
the
two screws
secu
ring
the rectifier to
the battery box
and
withdraw
the
rectifier.
Installation
1.
Position the rectifier
to
the
battery box
and
secure with the two
screws.
Tighten the screws
to
9
Nm.
2.
Reconnect the two multi-plugs
to
the rectifier.
3.
Refit the left hand side cover
as
described
on
page 17.9.
4.
Reconnect the battery positive
(red)
lead
first.
5.
Refit the rider's seat
(see
page
17.9).
Service Manual - Rocket III
18.17
