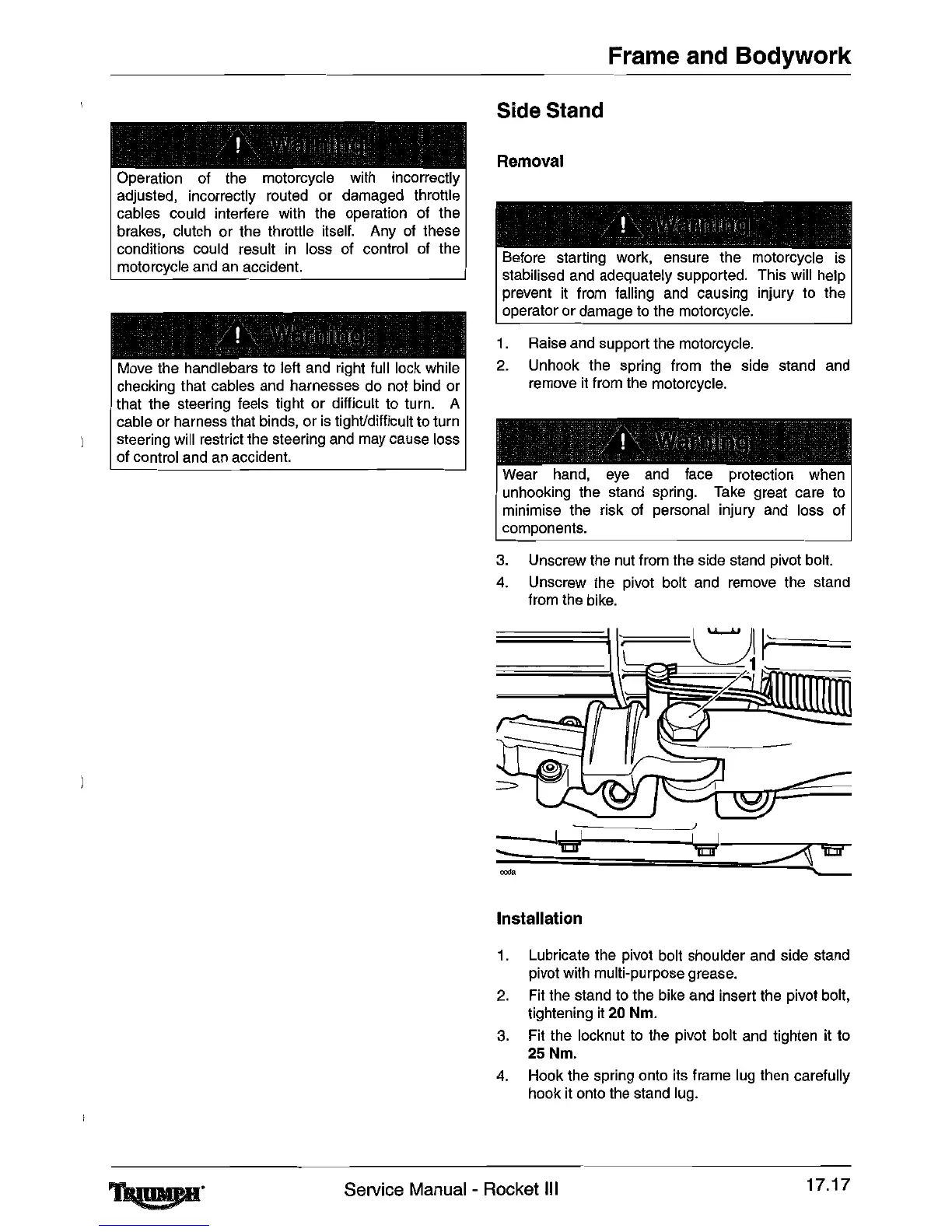

Frame and Bodywork
Side Stand
Operation
of
the motorcycle with incorrectly
adjusted, incorrectly routed or damaged throttle
cables could interfere with the operation of the
brakes, clutch or the throttle itself. Any
of
these
conditions could result
in
loss
of
control of the
motorcycle and
an
accident.
Move
the handlebars to left
and
right full lock while
checking that cables
and
harnesses do not bind or
that the steering feels tight or difficult to turn. A
cable or harness that binds, or
is
tight/difficult to turn
steering
will
restrict the steering
and
may
cause loss
of control
and
an
accident.
Removal
Before starting work, ensure the motorcycle
is
stabilised
and
adequately supported. This will
help
prevent
it
from falling
and
causing injury
to
the
operator or damage
to
the
motorcycle.
1. Raise
and
support the motorcycle.
2.
Unhook the spring from the side stand
and
remove
it
from the motorcycle.
Wear hand,
eye
and face protection when
unhooking the stand spring.
Take
great care
to
minimise the risk
of
personal injury and loss of
components.
3.
Unscrew the
nut
from
the
side stand pivot bolt.
4.
Unscrew the pivot bolt
and
remove
the stand
from
the
bike.
-
ood'
I I
'lEli'
, I
'lEli'
Installation
1.
Lubricate the pivot bolt shoulder and side stand
pivot with multi-purpose grease.
2.
Fit the stand to the
bike
and insert the pivot bolt,
tightening
it
20 Nm.
3.
Fit the locknut
to
the pivot bolt
and
tighten it to
25Nm.
4.
Hook the spring onto its frame
lug
then carefully
hook it onto the stand
lug.
Service Manual - Rocket III
17.17
