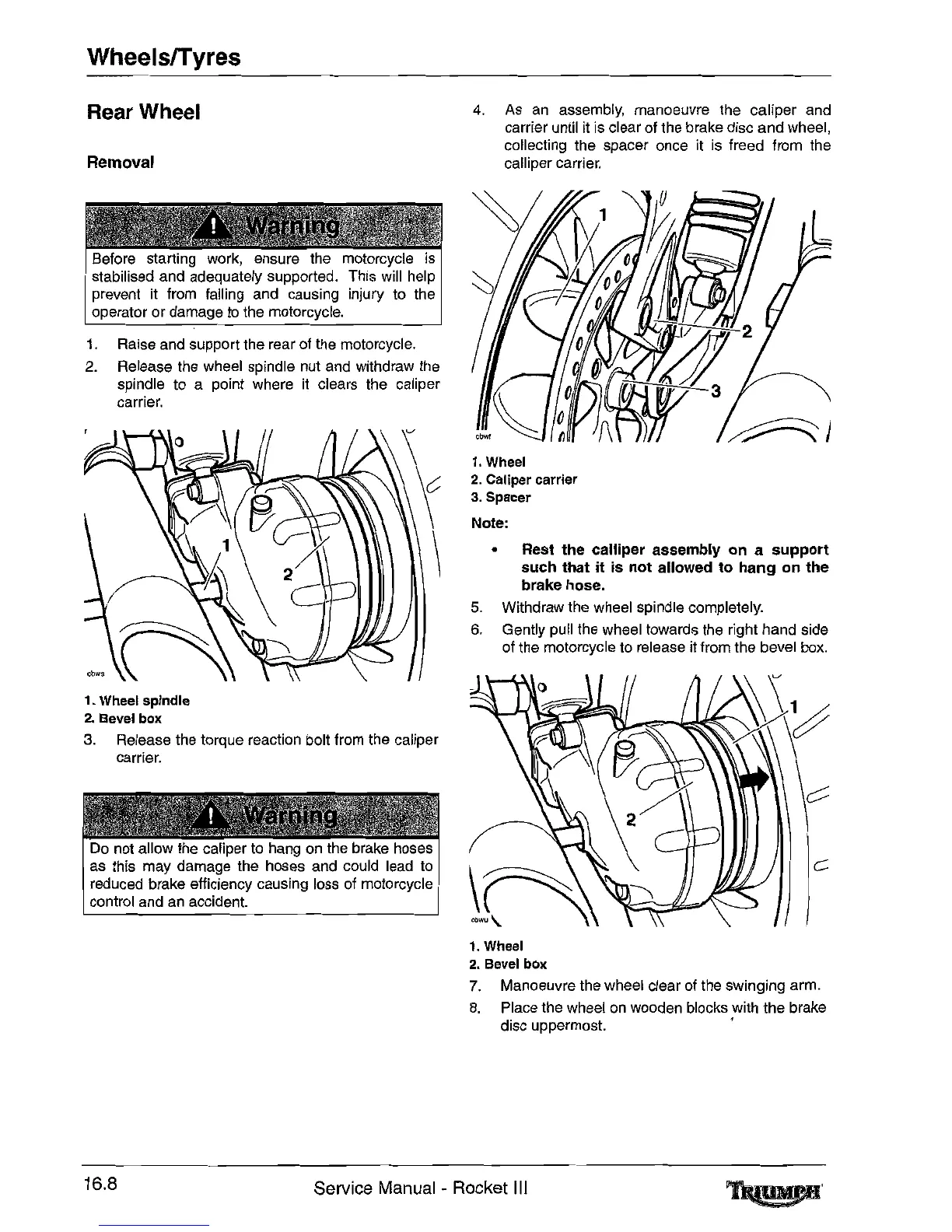

WheelsITyres
Rear Wheel
Removal
Before starting work, ensure the motorcycle
is
stabilised and adequately supported. This will help
prevent it from falling and causing injury to the
operator or damage
to
the motorcycle.
1.
Raise and support the rear of the motorcycle.
2.
Release the wheel spindle nut and withdraw the
spindle to a point where it clears the caliper
carrier.
1. Wheel spindle
2.
Bevel box
3.
Release the torque reaction bolt from the caliper
carrier.
Do
not allow the caliper
to
hang
on
the brake hoses
as this may damage the hoses and could lead
to
reduced brake efficiency causing loss of motorcycle
control and
an
accident.
4.
As
an
assembly, manoeuvre the caliper and
carrier until
it
is
clear of the brake disc and wheel,
collecting the spacer once it is freed from the
calliper carrier.
1.
Wheel
2.
Caliper carrier
3.
Spacer
Note:
•
Rest
the
calliper
assembly
on
a
support
such
that
it
is
not
allowed
to
hang
on
the
brake
hose.
5.
Withdraw the wheel spindle completely.
6.
Gently pull the wheel towards the right hand side
of the motorcycle
to
release it from the bevel
box.
1.
Wheel
2.
Bevel box
7.
Manoeuvre the wheel clear of the swinging arm.
8.
Place the wheel
on
wooden blocks with the brake
disc uppermost. •
16.8
Service Manual· Rocket
III
