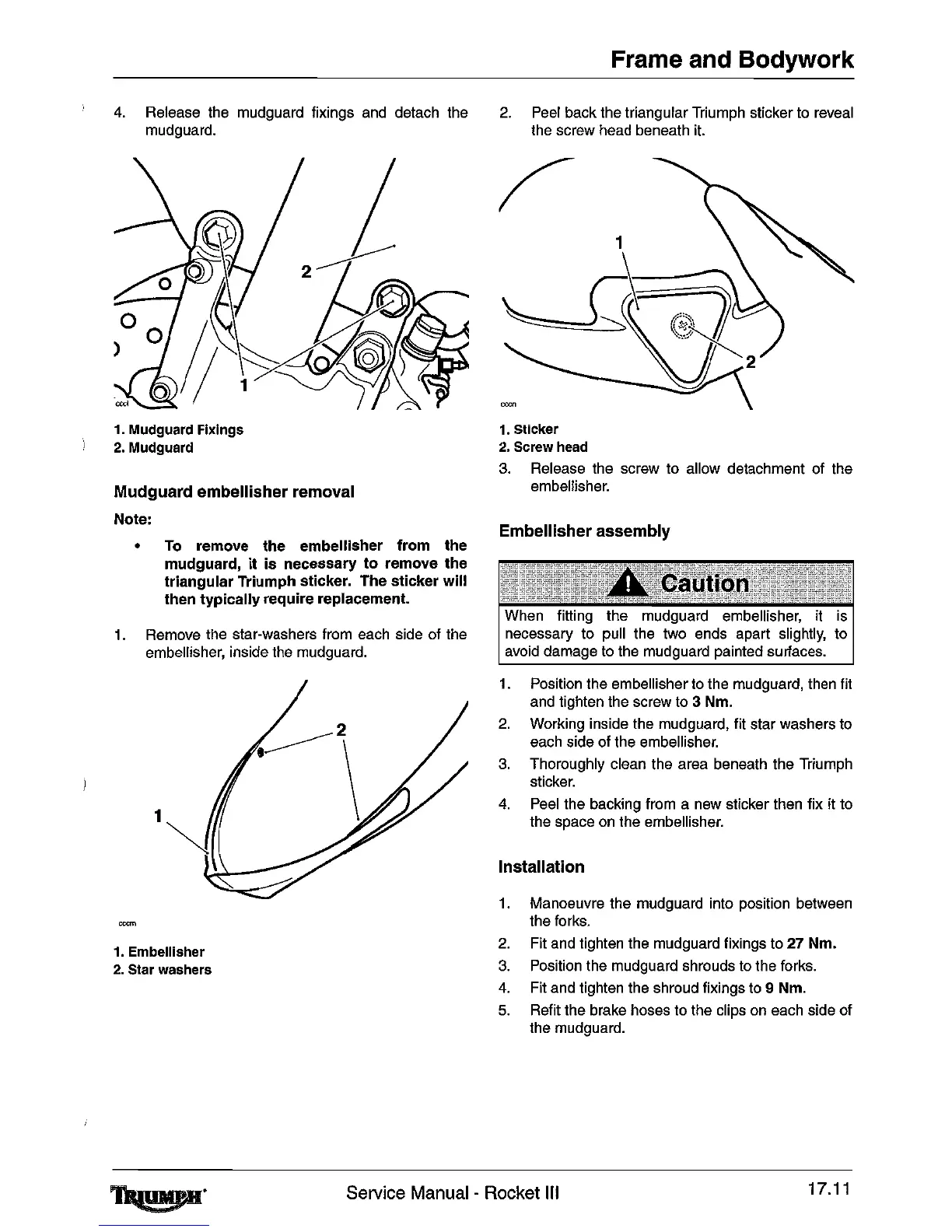

4.
Release
the
mudguard fixings
and
detach the
mudguard.
1.
Mudguard
Flxlngs
2.
Mudguard
Mudguard embellisher removal
Note:
•
To
remove the embellisher from the
mudguard,
it
is
necessary
to
remove the
triangular Triumph sticker. The sticker will
then typically require replacement.
1.
Remove the star-washers from
each
side
of
the
embellisher, inside the mudguard.
1.
Embellisher
2.
Star
washers
Frame and Bodywork
2.
Peel
back the triangular Triumph sticker
to
reveal
the screw head beneath
it.
1.
Sticker
2.
Screw
head
3.
Release the screw to allow detachment of the
embellisher.
Embellisher assembly
When fitting the mudguard embellisher,
it
is
necessary to pull the two ends apart slightly, to
avoid
damage
to
the
mudguard painted surfaces.
1.
Position the embellisher
to
the mudguard, then fit
and
tighten the screw
to
3 Nm.
2.
Working inside the mudguard, fit star washers to
each side
of
the embellisher.
3.
Thoroughly clean the area beneath the Triumph
sticker.
4.
Peel
the backing from a new sticker then fix it to
the space
on
the embellisher.
Installation
1.
Manoeuvre the mudguard into position between
the forks.
2.
Fit
and
tighten
the
mudguard fixings to 27 Nm.
3.
Position the mudguard shrouds
to
the forks.
4.
Fit and tighten
the
shroud fixings
to
9 Nm.
5.
Refit the brake hoses to the clips
on
each side of
the mudguard.
~.
