Product Overview
2

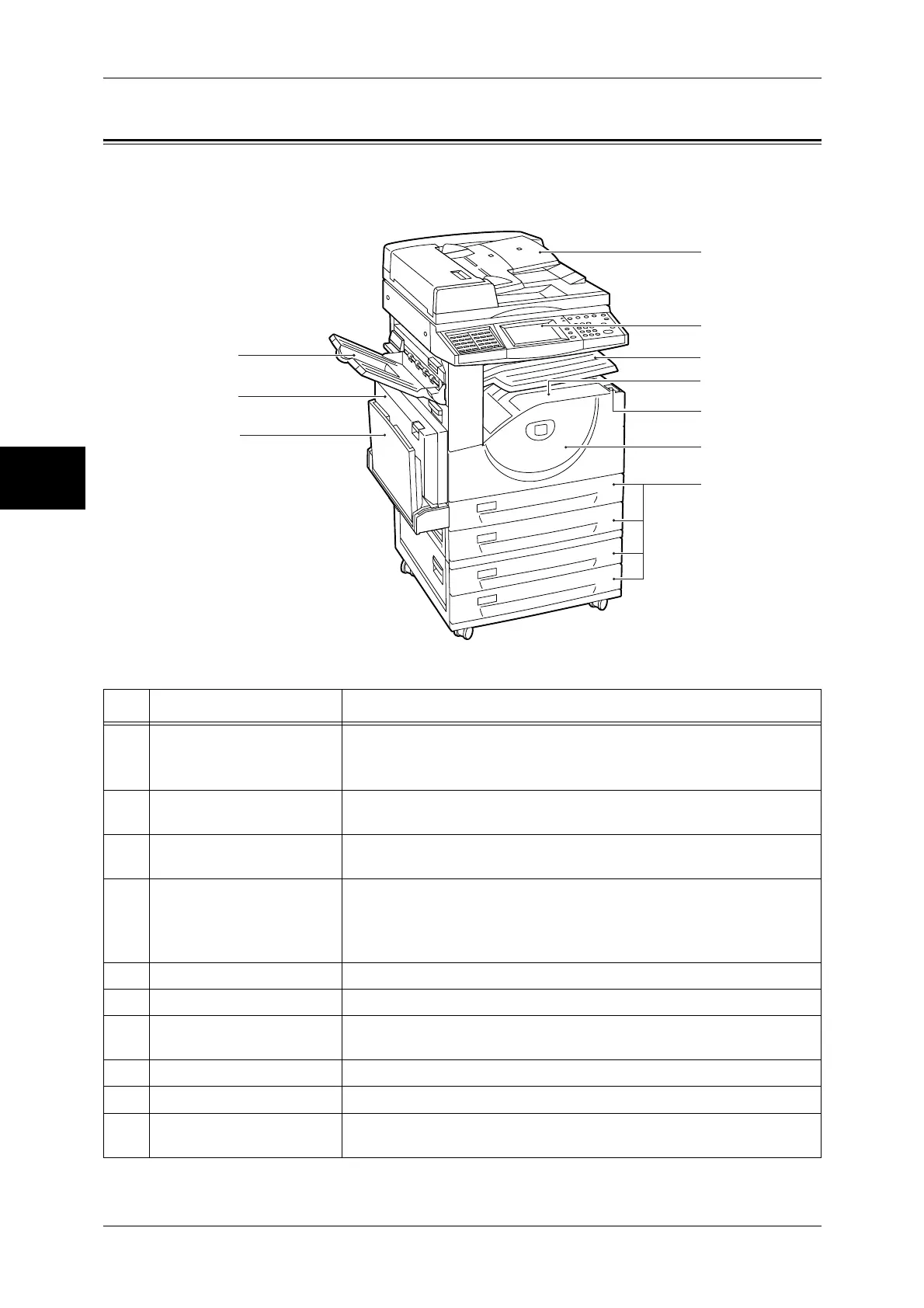

Machine Components
This section describes the main components and functions of the machine.
No. Component Function
1 Duplex automatic
document feeder
Automatically feeds 2 sided originals from a stack.
Note • In this manual, the duplex automatic document feeder is abbreviated as
“document feeder”.
2 Control panel Consists of operation buttons, LED indicators and a touch screen.
Refer to "Control Panel" (P.46).
3 Exit 2 Tray (optional) Printed or copied documents are delivered with the printed side facing
down.
4 Center output tray Printed or copied documents are delivered with the printed side facing
down.
Note • When the Exit 2 Tray is installed on the machine, the center output tray
is referred to as "center tray - lower".
5 Power switch Switches the power of the machine on/off.
6 Front cover Opened to replace consumables.
7 Tray 1 - 2
Tray 3 - 4 (optional)
Accommodates papers.
8 Side Tray (optional) Printed or copied documents are delivered with the printed side facing up.
9 Duplex module Automatically prints or copies on both sides of paper.
10 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other
special media) that cannot be loaded in the Trays 1 to 4.
5
1
2
3
6
4
8
9
10
7
