Paper Jams in Top Left Cover A
The following describes how to clear paper jams in Top Left Cover A.
Use green lever A1 or A2 to clear the paper jams in Top Left Cover A. Follow the
instructions displayed and remove the jammed paper.
The following sections separately explain how to use green levers A1 and A2 for
clearing paper jams.
When using green lever A1.......................................................................................................508
When using green lever A2.......................................................................................................509

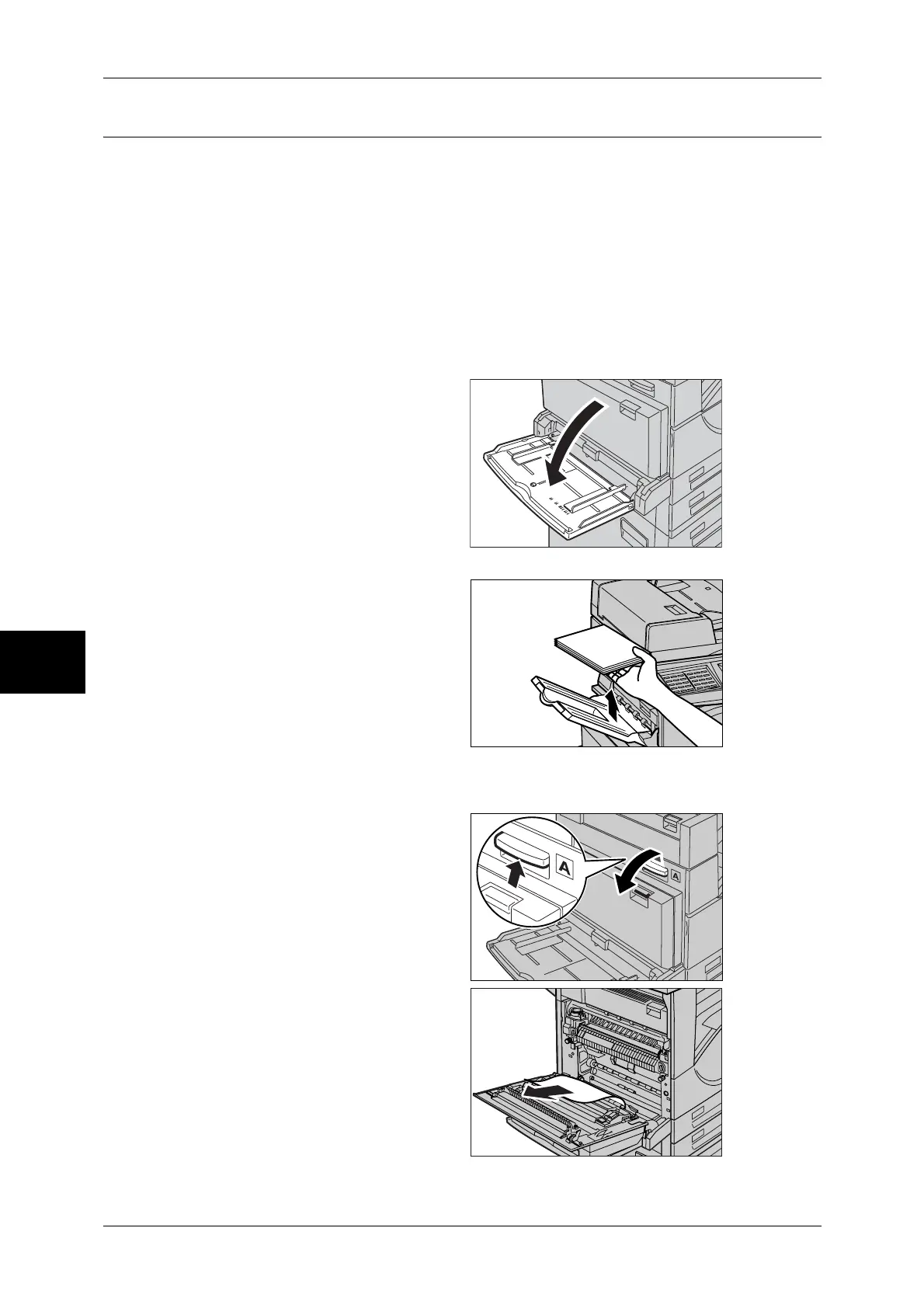

When using green lever A1
1
Open Tray 5 (Bypass).
2
If the Side Tray (optional) is
attached, remove paper from the
Side Tray.
Note • If opened with the paper
loaded on the Side Tray,
Cover A will not be easily
folded up when closed.
3
Lift up the lever on the upper right
side of Cover A, and open Cover A.
4
If the jammed paper does not reach
the Fuser Unit, remove it. Then
proceed to Step 7.
If the jammed paper reaches the
Fuser Unit, proceed to Step 5.
To Next Page
