Accessories
55
Rack Mount Installation
1. Secure mounting brackets to both sides of top tray with four M5 screws (two on each side). For 5-Slot cradles,
position the flange for vertical installation. For 4-Slot Battery Chargers, position the flange for 25° installation.

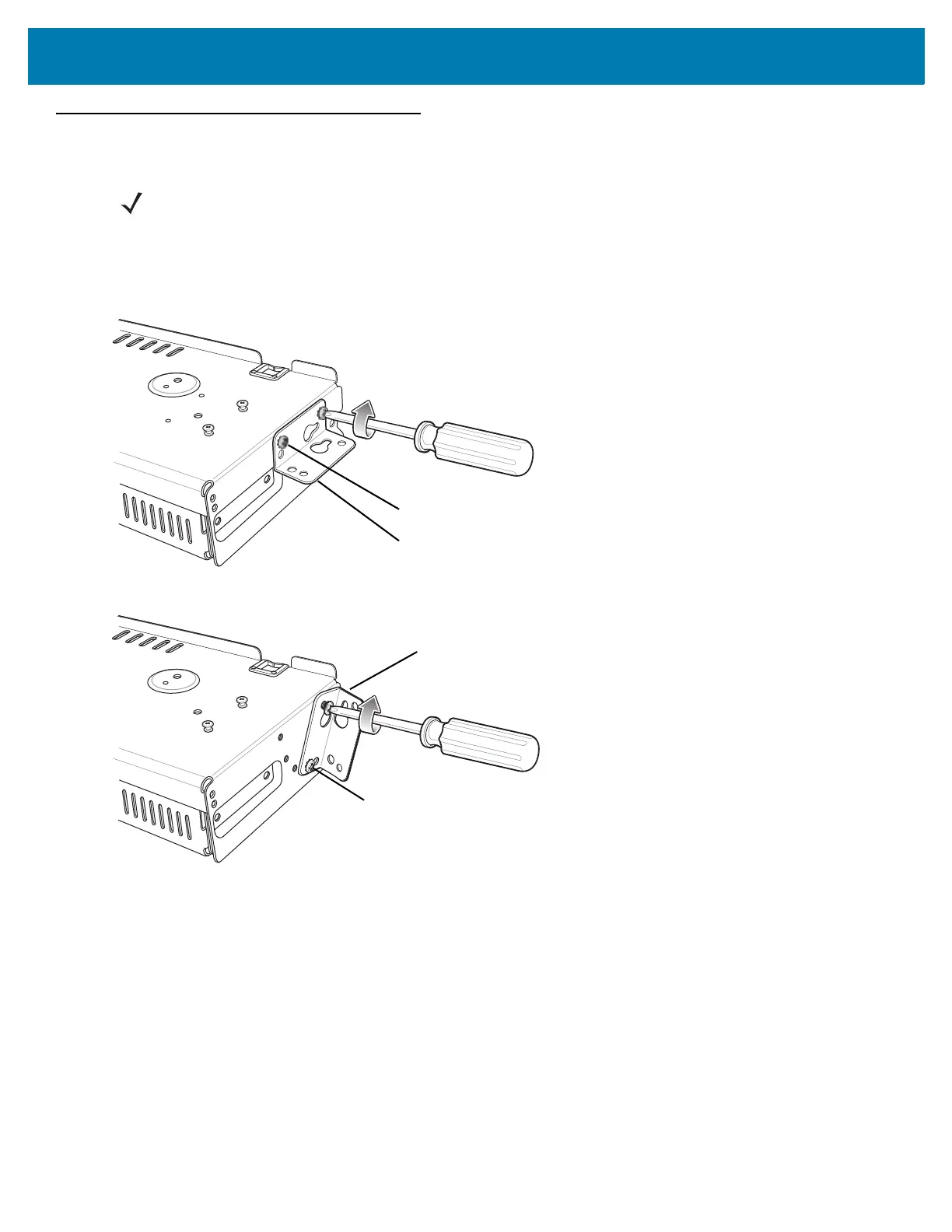

Figure 56 Flange Vertical Position (5-Slot Cradles)
Figure 57 Flange 25° Position (4-Slot Battery Chargers)
2. Install two rack system screws for top of mounting brackets. The screw heads should protrude half way from
the rail.
NOTE: Use screws provided with rack system. Refer to rack user documentation for instructions.
