Corrective Maintenance
Print Mechanism
156
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
7. Is there a wireless board installed?
Remove the Wireless Board
1.
2.
See Figure 5. Press in on the eject button to remove the radio card.

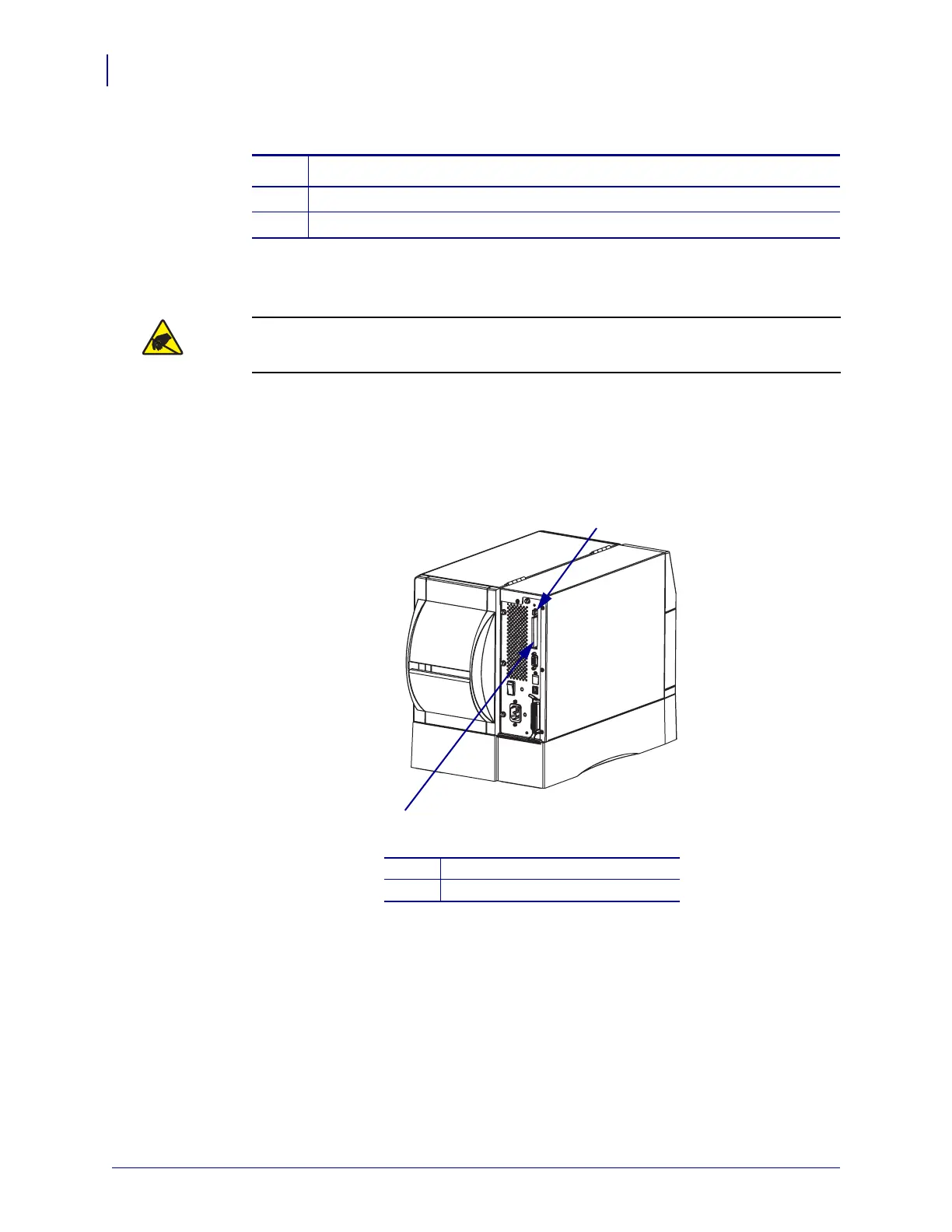

Figure 35 • Remove the Radio Card
If… Then…
No Go to Gain Access to the Power Supply on page 158.
Yes Continue with Remove the Wireless Board.
Caution • Observe proper electrostatic safety precautions when handling
static-sensitive components such as circuit boards and printheads.
Connect yourself to an antistatic device.
1
Eject button
2
Radio card
2
1
