Corrective Maintenance
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Sensor Assemblies
1. See Figure 93. Remove the mounting screw, split lock washer, and flat washer from the
upper media sensor assembly.

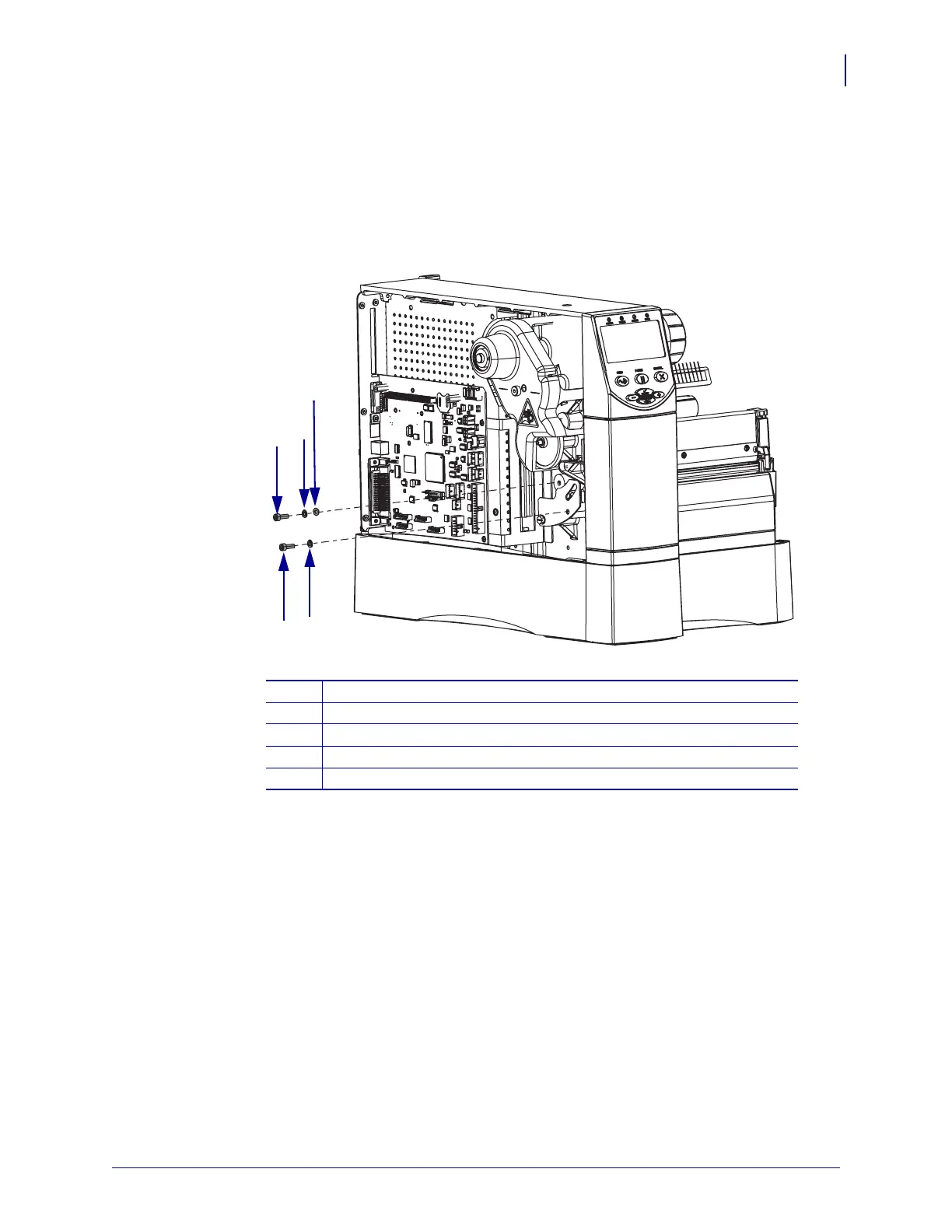

Figure 93 • Remove the Upper Media Sensor Mounting Screw
2. Remove the mounting screw and split washer from the lower media sensor assembly.
1
Upper media sensor mounting screw
2
Upper media sensor mounting split lock washer
3
Upper media sensor mounting flat washer
4
Lower media sensor mounting split lock washer
5
Lower media sensor mounting screw
1
2
5
4
3
