Corrective Maintenance
Print Mechanism
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
8. Do you have a cutter option installed?
Remove the Cutter Assembly
1. See Figure 40. Unlatch the printhead and turn the latch assembly clockwise to remove the
cutter mounting screw.
2.

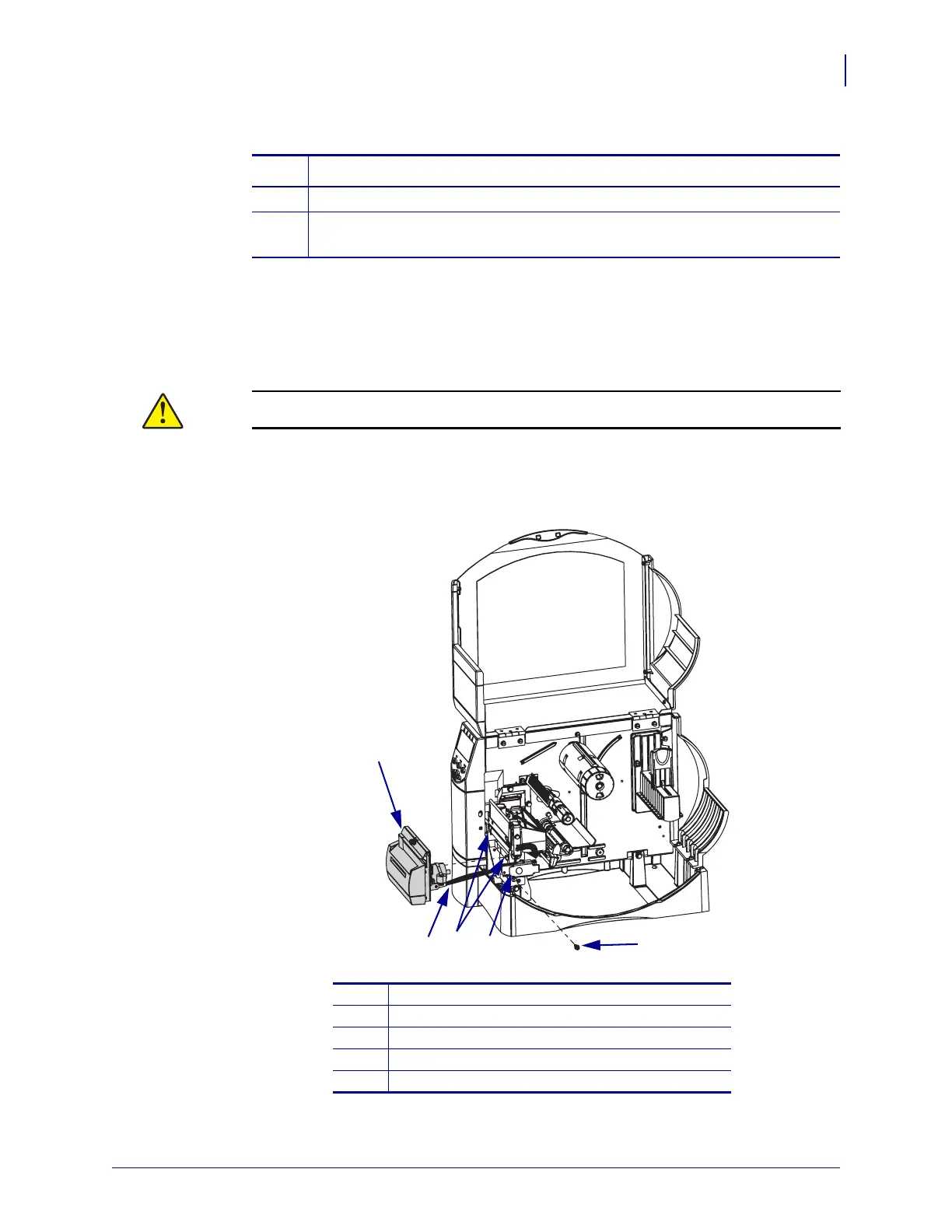

Figure 40 • Remove the Cutter Assembly
If… Then…
No Go to Remove the Print Mechanism on page 162.
Yes You may find it easier to replace the printhead with the cutter assembly
removed. Continue with Remove the Cutter Assembly.
Caution • The cutter blade is sharp. Do not touch or rub the blade with your fingers.
Remove the cutter mounting screw.
1
Cutter assembly
2
Mounting screw
3
Printhead latch
4
Platen assembly hooks (2)
5
Cutter harness
2
3
5
1
4
