Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Old Ribbon Take-Up Clutch
1. See Figure 136. Mark the proper mounting hole in the main frame.
2. Loosen the two set screws on the ribbon take-up collar and slide the collar off of the shaft.

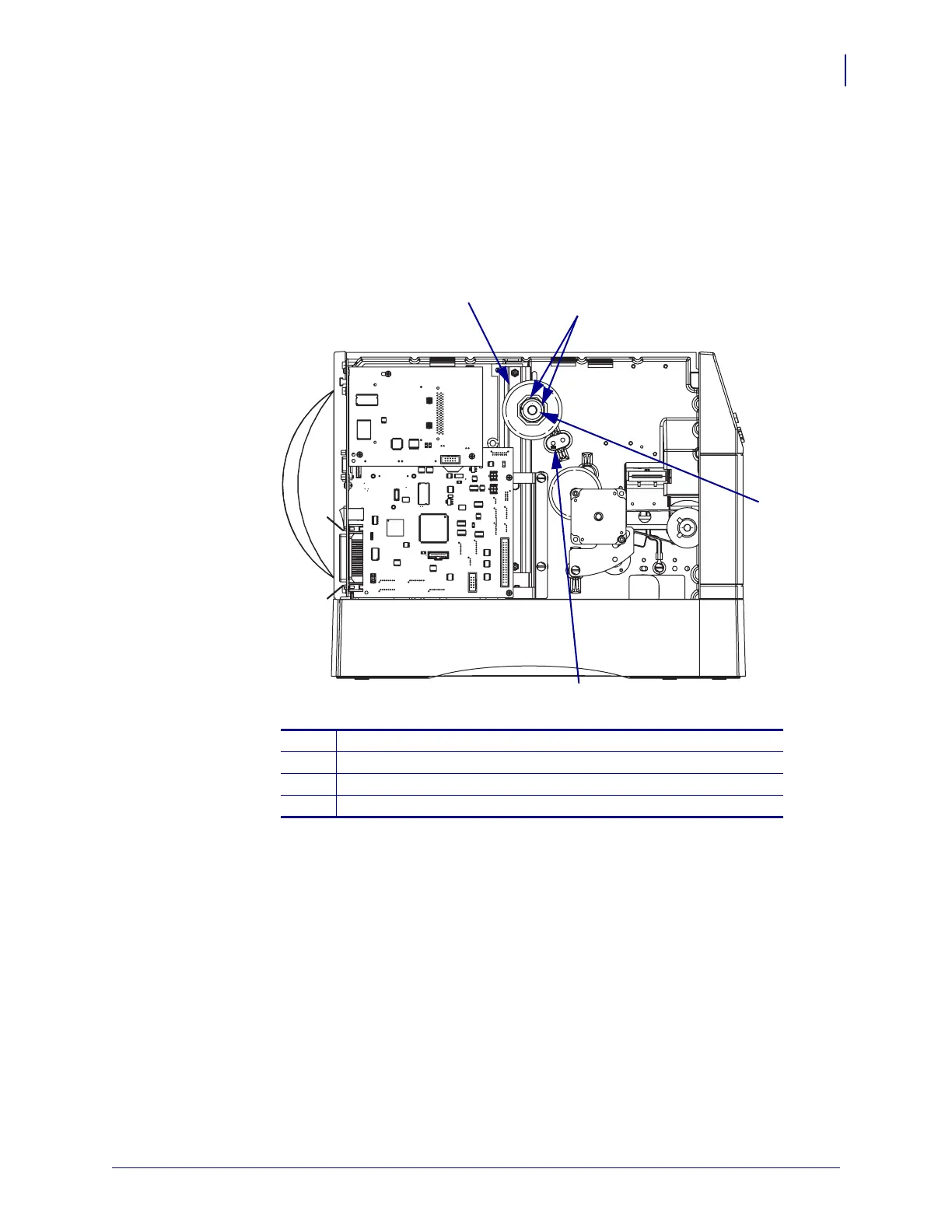

Figure 136 • Loosen the Set Screws
1
Ribbon take-up gear and clutch assembly
2
Set screws (2)
3
Collar
4
Main frame. Mark the proper mounting hole.
1
2
3
4
