347
Corrective Maintenance
Peel Rewind Option
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Reinstall the Electronics Cover
1. See Figure 208. Install the electronics cover by aligning it and sliding down, ensuring the
lower flanges are inside the base and the upper flanges are between the main frame and the
media door.

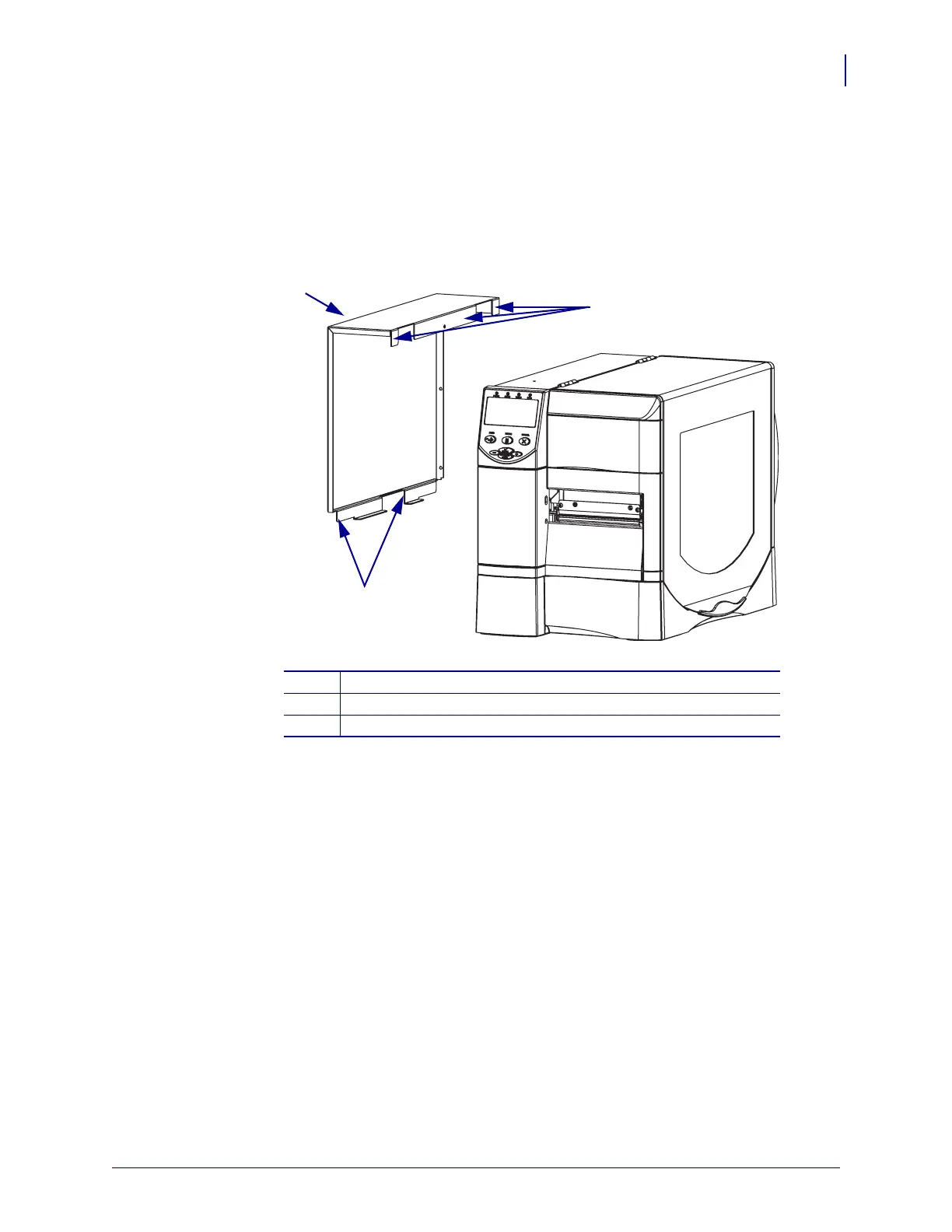

Figure 208 • Locate the Upper and Lower Flanges
2. See Figure 200 on page 339. Install the four mounting screws.
3. See Figure 199 on page 338. Open the media door.
4. Install the electronics cover mounting screw and lock washer.
1
Electronics cover
2
Upper flanges (3)
3
Lower flanges (2)
2
1
3
To Next Page
