Corrective Maintenance
Lower Front Panel
432
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Lower Front Panel
Tools Required
1.

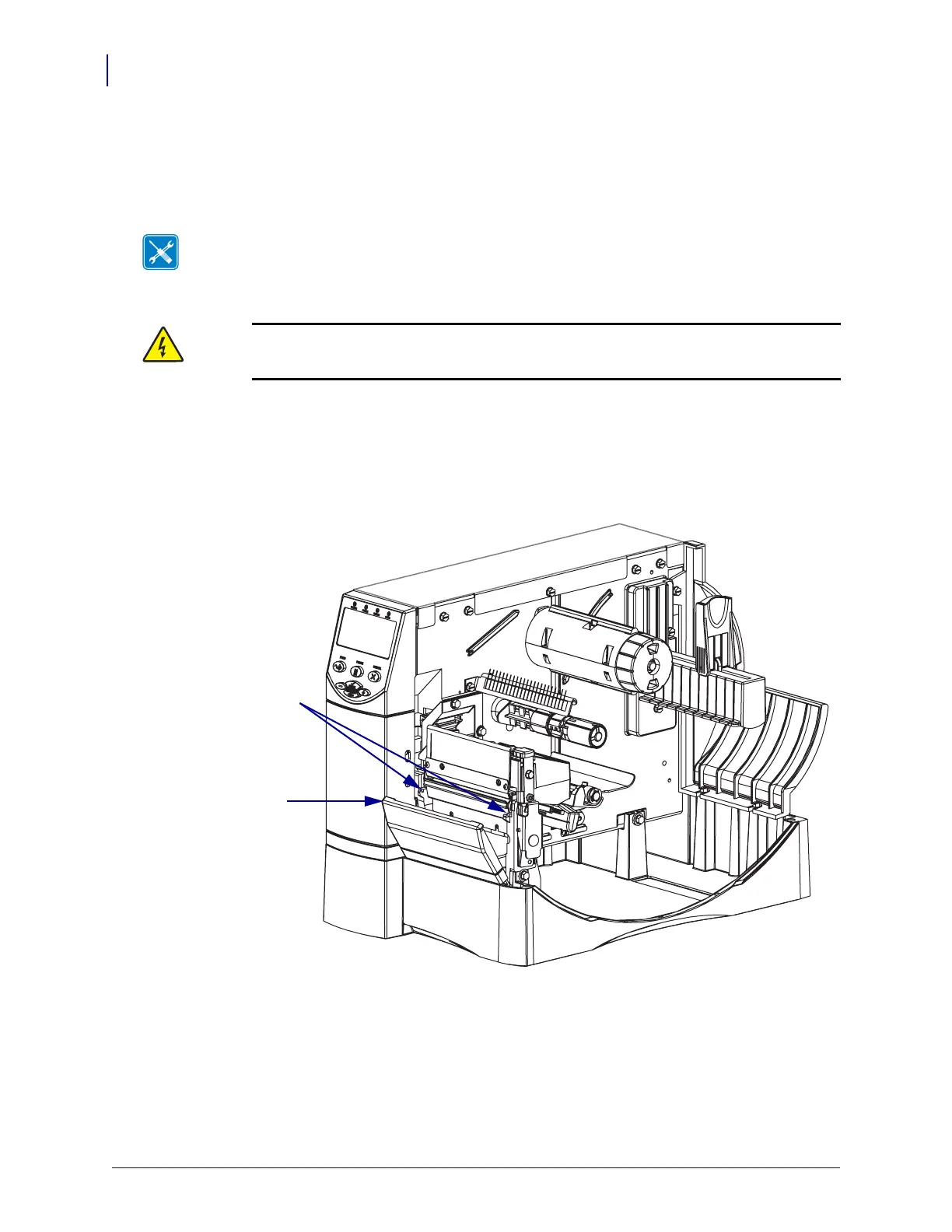

Figure 288 • Remove the Old Lower Front Panel
Tools • You need these tools to complete this procedure:
 Flat-blade Screwdriver Set
Caution • Turn off (O) the printer and disconnect it from the power source before
performing the following procedure.
See Figure 288. Pull out on both sides of the lower front panel until it comes loose of the
mounting hooks and then lift it out of the printer. Use a small flat blade screwdriver if
you are having trouble.
Lower
Front
Panel
Hooks
