Zebra ZM400 Series User Manual

Corrective Maintenance
Printhead Conversion
296
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Install the New Printhead
1. See Figure 161. Align the two forks with the bearings and set the printhead assembly onto
the platen housing. This is done for ease of connecting the printhead cables.
2.

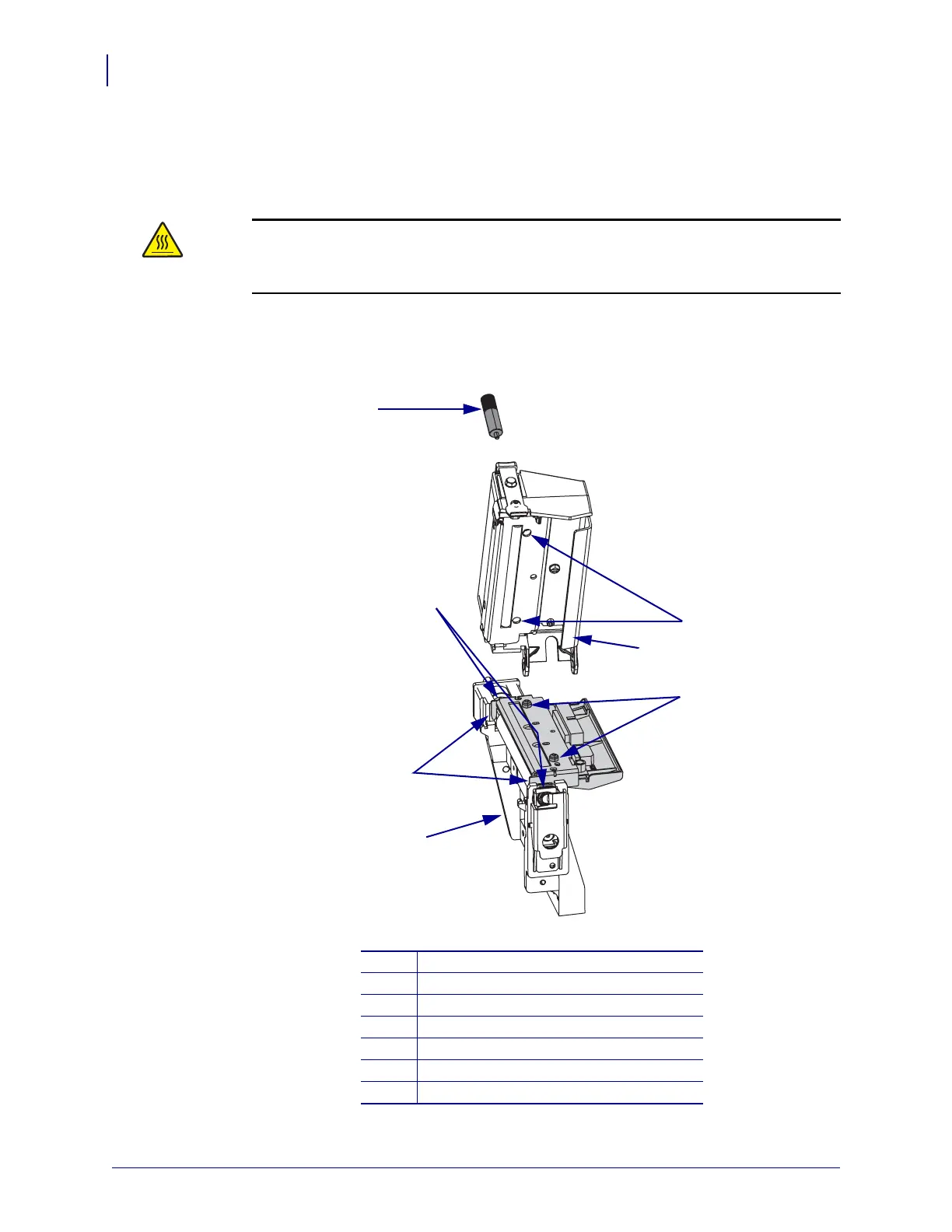

Figure 161 • Align the Forks and Bearings
Caution • An improperly connected printhead data or power cable may cause the
printhead to generate excessive heat and/or display HEAD COLD or other false error
messages.
Connect the power and data cables to the printhead.
1
Thumbscrew
2
Alignment holes (2)
3
Cable guide
4
Alignment pins (2)
5
Platen housing
6
Forks (2)
7
Bearings (2)
4
6
2
3
5
1
7
