Corrective Maintenance
Ribbon Take-up Spindle
280
14207L-001 A ZM400/ZM600 Maintenance Manual 8/9/07
Remove the Old RTU Spindle Assembly
1. See Figure 144. Mark the proper mounting hole in the main frame.
2. Loosen the two set screws on the ribbon take-up collar and slide the collar off of the shaft.

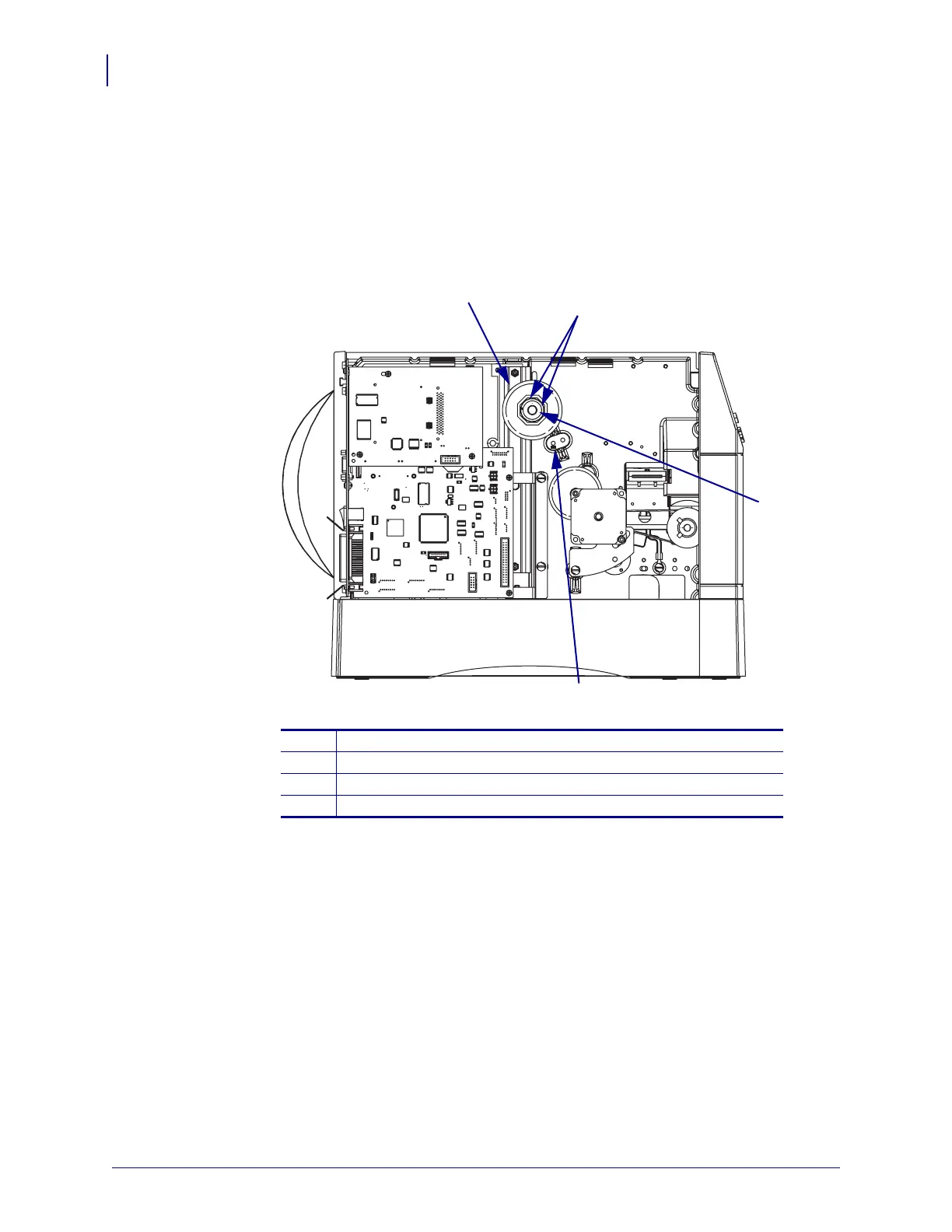

Figure 144 • Loosen the Set Screws
1
Ribbon take-up gear and clutch assembly
2
Set screws (2)
3
Collar
4
Main frame. Mark the proper mounting hole.
1
2
3
4
