Ribbon Take-Up Spindle Clutch
Ribbon Take-up Spindle Clutch
8/9/07 ZM400/ZM600 Maintenance Manual 14207L-001 A
Remove the Gear Cover
1. See Figure 134. Lay the printer on its side, media door down on a mat.

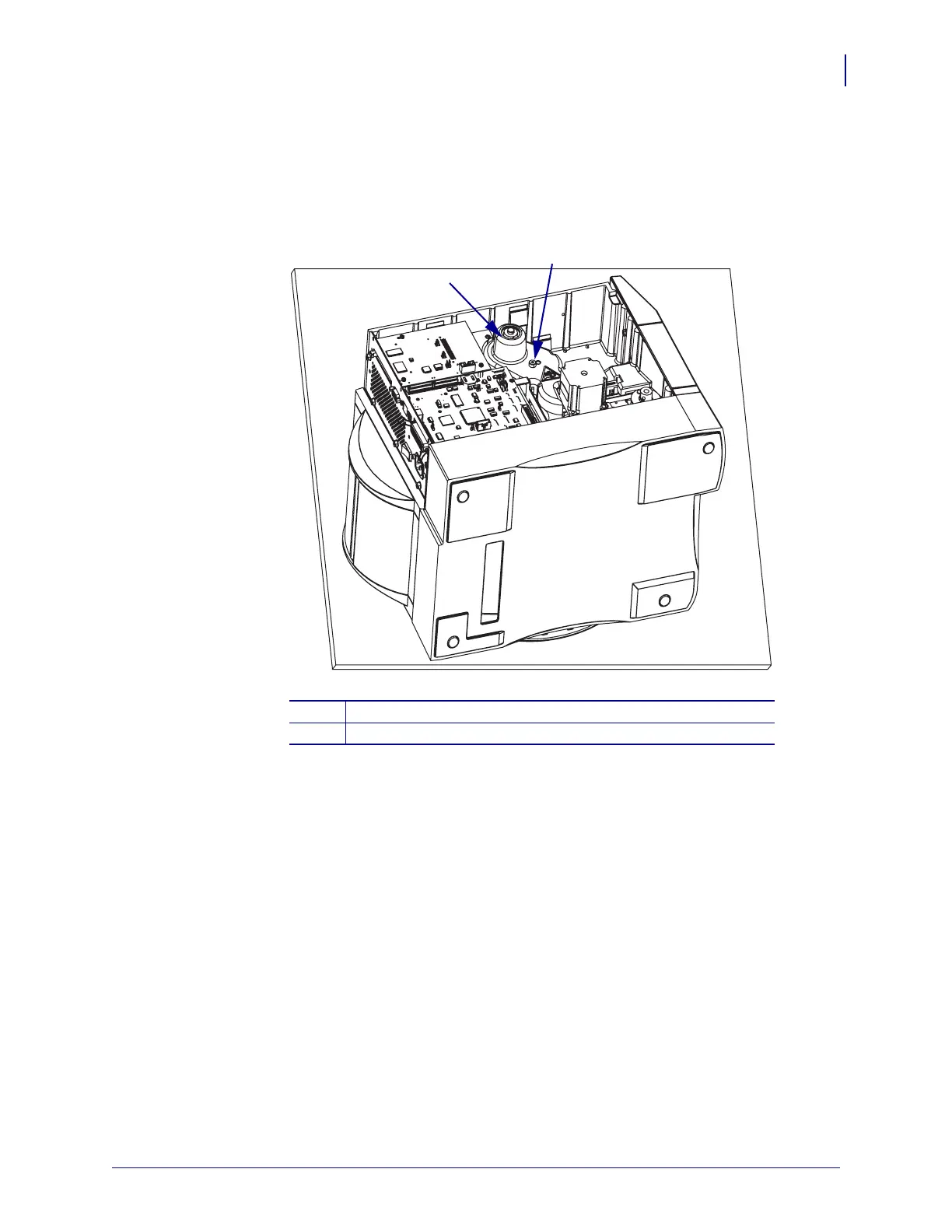

Figure 134 • Lay the Printer on its Side
1
Gear cover
2
Mounting screw
1
2
