ABB | SACE Emax 2
202 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Electronic accessories | 6 - Ekip Signalling 2K modules
Access from the display
With the modules energized, and the Local Bus enabled, the presence of the modules on the terminal box
activates additional menus on the display:
With the modules energized, and the Local Bus enabled, the presence of the modules on the terminal box
activates additional menus on the display.
• In order to configure the input and output contacts.
• To display information on the modules and the state of inputs and outputs.
To enable the Local Bus, you need to select "On" in the menu Settings - Modules - Local Bus.

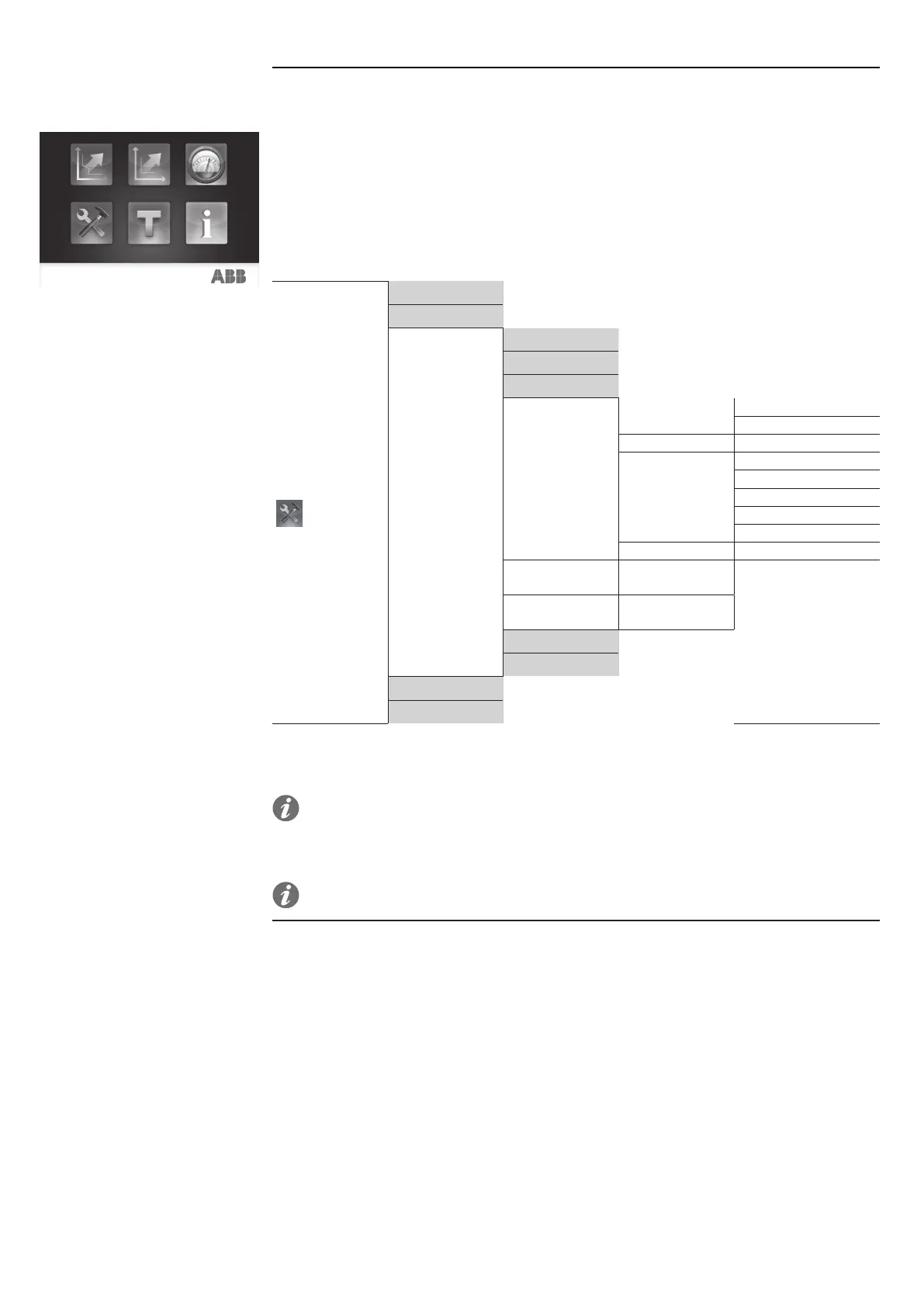

The following table shows the path for accessing the configuration parameters of the modules from the
display:
Settings
…
Main frequency
Modules
Local/Remote
Local Bus
…
Ekip Signalling
2K-1
I 01
Signal source
Delay
I 02
(1)
O 01
Signal source
Delay
Contact type
Self-latching
Min activation time
O 02
(2)
Ekip Signalling
2K-2
(3)
Ekip Signalling
2K-3
(3)
…
Functions
Power Controller
…
(1)
As menu I 01.
(2)
As menu O 01.
(3)
As menu Signalling 2K-1.
NOTE: the modules can also be configured with the Ekip Connect software (see the chapter
“16 - Other accessories", and the paragraph "Ekip Connect software" on page 245).
NOTE: Ekip Signalling 2K-3 module menu available with E2.2-E4.2-E6.2 circuit-breakers.
Continued on the next page
