ABB | SACE Emax 2
Ekip Touch protection trip unit | 6 - Menu47 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A

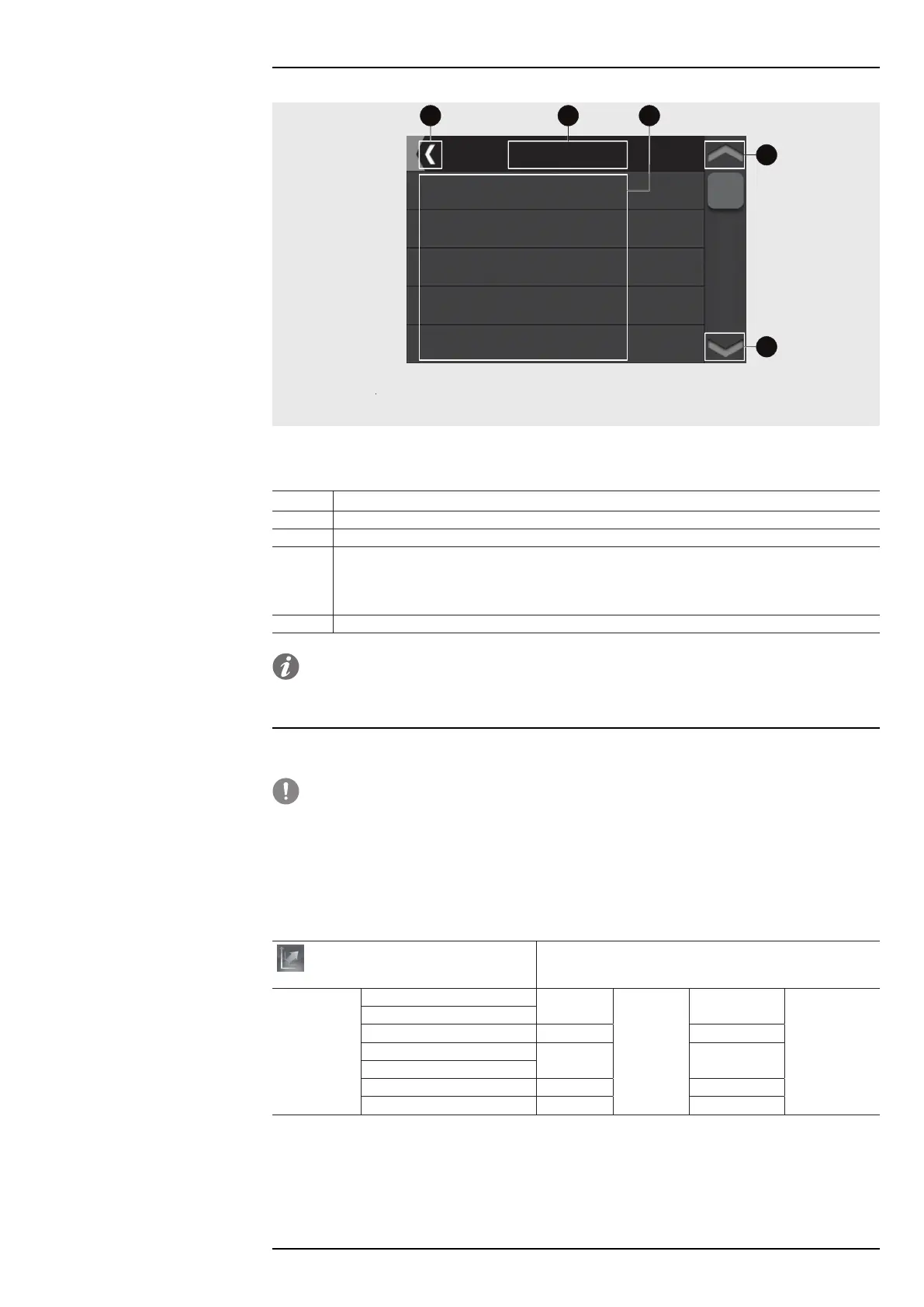

Components of the menus
The menus appear as follows:
A B
C
D
D
Advanced
S(V) Protection
Current-Voltage Protection (51V)
S(V) Protection
Current-Voltage Protection (51V)
Protection MCR
Short circuit
D Protection
Directional (67)
IU Protection
Current unbalance (46)
Figure 12
The following table provides a description of the various areas of the menus:
Pos. Function
A It opens the higher level menu, or if there is no higher level, the Menu page.
B It displays the name of the menu.
C
• It displays a list of the available submenus, the parameters that can be set, and the
commands that can be performed
• Depending on the selection, it opens a submenu, the Modify Parameters page, or an
information page, or performs a command.
D Scroll the list
NOTE: in the menus, the description and the ANSI code are indicated under each protection,
and the current value is shown under each parameter.
Protections Menu
The following table shows the submenus and the protections associated to the menu Protections, and the
relevant Ekip Touch trip units.
IMPORTANT:
• Selecting a protection opens the list of the parameters that can be set for the
selected protection.
• With Hi-Touch and G Hi-Touch trip units, and the Dual Set function enabled (see
the Settings menu), the protections can be set according to two configurations (Set
A and Set B), of which the default configuration can be selected.
Protections
Trip units
• Set A
(1)
• Set B
(1)
L Protection
Touch
Hi-Touch
G-Touch
G Hi-Touch
S Protection
S2 Protection - -
I Protection
Touch G-Touch
2I Protection
G Protection Touch
(2)
G-Touch
(2)
Gext Protection
(3)
Touch G-Touch
(1)
Submenus available with Hi-Touch and G Hi-Touch trip units, and the Dual Set function enabled (see the
Settings menu).
(2)
With Touch and G Touch trip units, alternative protection to Gext, therefore available only without S.G.R.
toroid (see the menu Settings, Circuit Breaker, Ground protection).
(3)
Protection available with S.G.R. toroid (see the menu Settings, Circuit Breaker, Ground protection), and
alternative to RC protection (see the Advanced menu).
