ABB | SACE Emax 2
Electronic accessories | 15 - Ekip Com Actuator module243 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
15 - Ekip Com Actuator module
Description
Ekip Com Actuator is an accessory module that allows SACE Emax 2 circuit-breakers to be opened and
closed from remote.
Connections
C2
C3
YC
C12
C13
YO
C1 C11
Ekip Com Actuator is installed on the front of the circuit-breaker in the accessories area.
Information on the assembly is available on the website http://www.abb.com/abblibrary/DownloadCenter/, in
particular in the kit sheet 1SDH000999r0501 and 1SDH001000r0501.

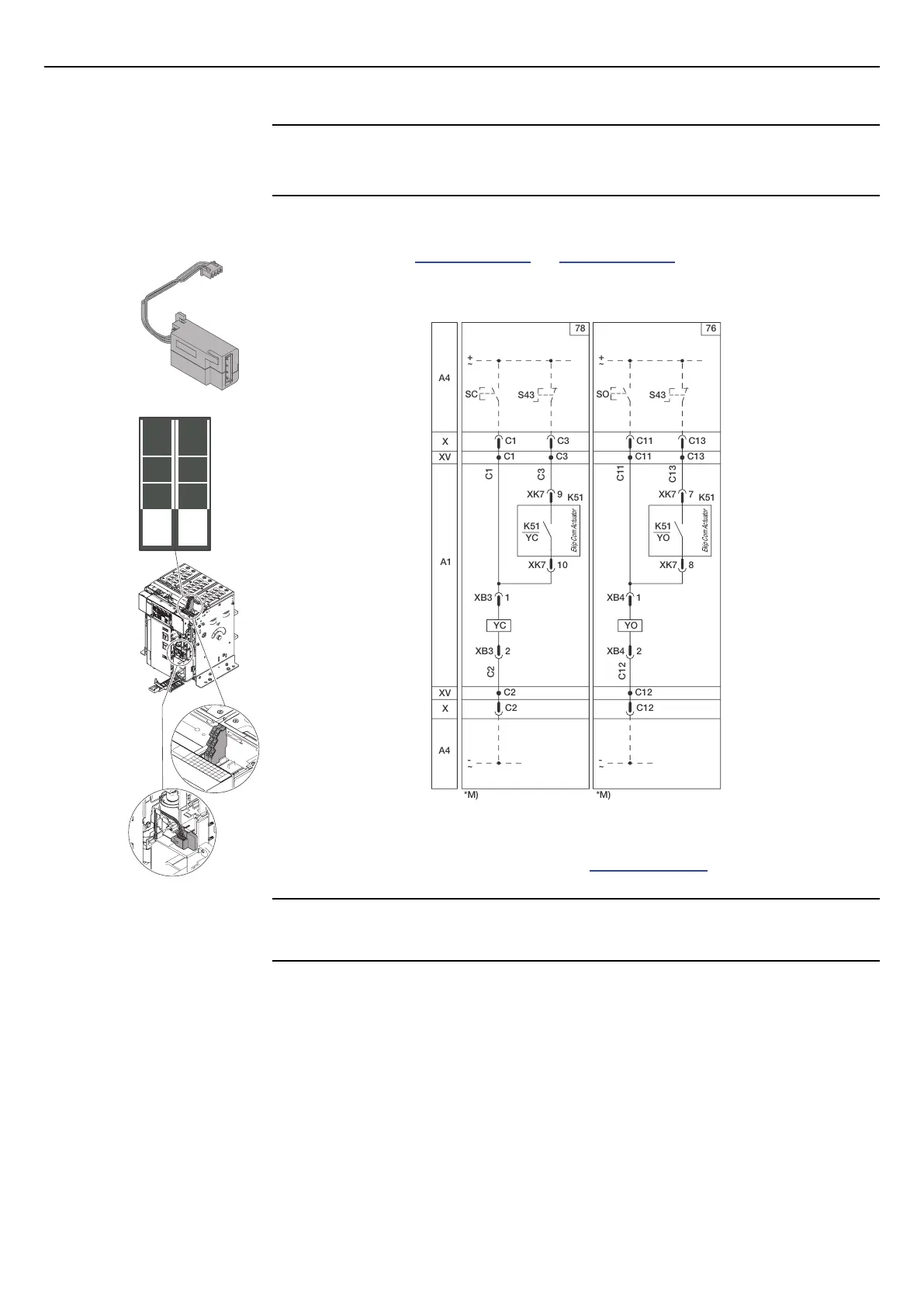

Wiring diagrams of the module are provided below:
An example with an E2.2 circuit-breaker in fixed and withdrawable versions is provided to the side.
S43
C13
C13
C13
+
~
SO
~
-
C12
C12
C12
YO
C11
C11
C11
76
XB4 1
XB4 2
K51
YO
K51
7XK7
XK7
8
Ekip Com Actuator
A4
X
XV
X
XV
A1
A4
78
C1
C1
C1
YC
C2
C2
C2
-
~
SC
~
+
C3
C3
C3
S43
XB3 1
XB3
2
K51
YC
K51
9XK7
XK7
10
Ekip Com Actuator
*M) *M)
Diagrams 78 - 76
Further information is available on page 174, or on the website http://www.abb.com/abblibrary/
DownloadCenter/, where the wiring diagram is available 1SDm000091r0001.
Compatibility
Ekip Com Actuator module is supplied on request and is compatible with all Ekip trip units equipped with
Ekip Com or Ekip Link modules.
