Ekip Touch protection trip unit | 2 - Alarm List Page41 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
2 - Alarm List Page
Description
The page Alarm List shows the list of messages present.
The Alarm page is available:
• By touching the diagnosis bar, in the message display area.
• By pressing the key iTEST.
NOTE: when the menus, or the pages that can be accessed from them are displayed, the
key iTEST doesn't open the page Alarm List.
The page orientation (horizontal by default) can be changed from the Settings menu, by selecting System -
View (see the chapter "6 - Menu", and the paragraph "Settings Menu" on page 49).
Components of the page

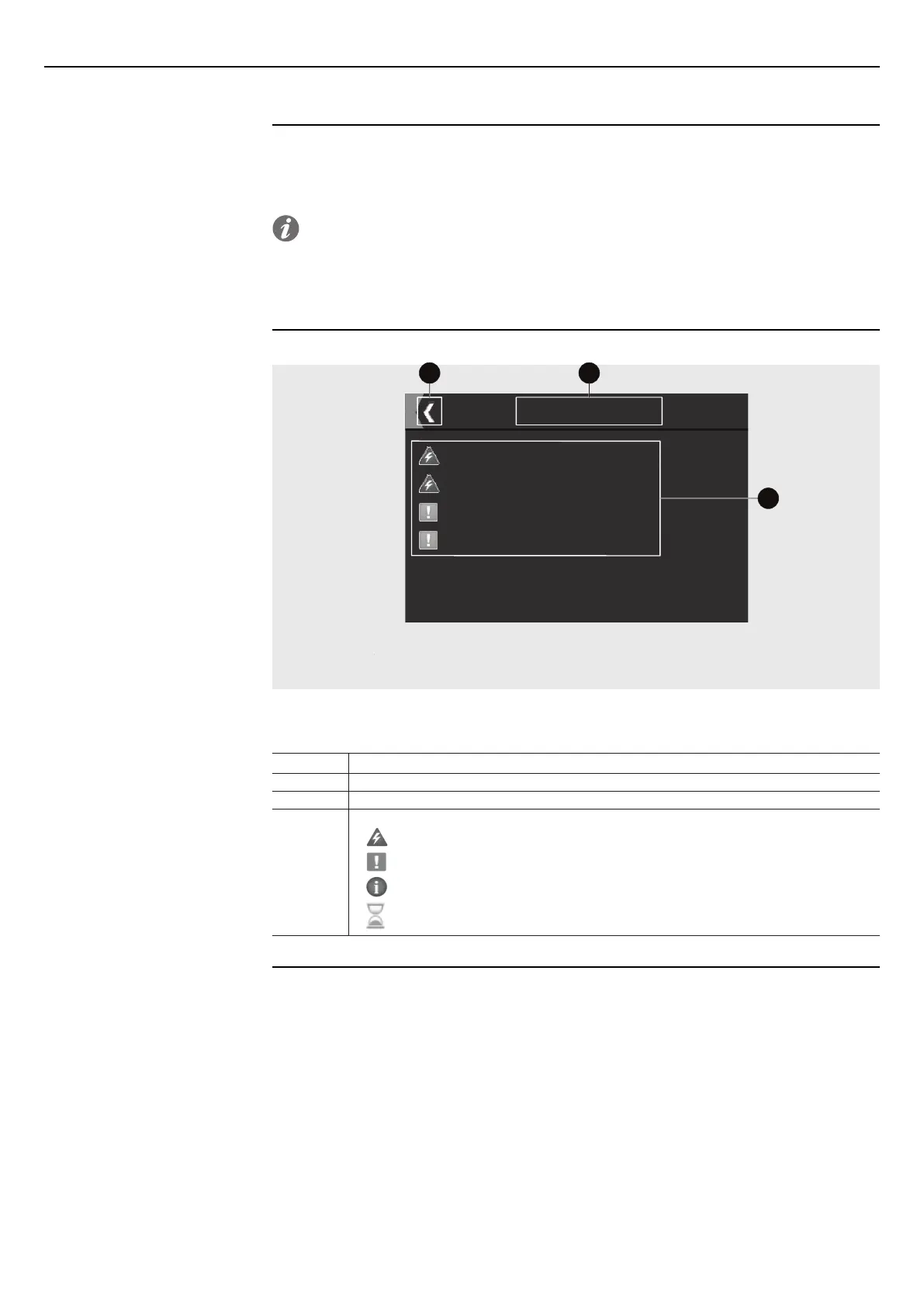

The page appears as follow:
A B
C
Alarm List
TC disconnected
RatingPlug
RatingPlug installation
CB undefined
Figure 7
The following table provides a description of the various areas of the page:
Pos. Function
A It opens the page displayed previously
B It shows the name of the page
C
It shows the list of messages of:
•
Alarm
•
Warning, error, or prealarm
•
Information
•
Active timing
