Electrical accessories | 2 - Electrical signalling accessories259 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A

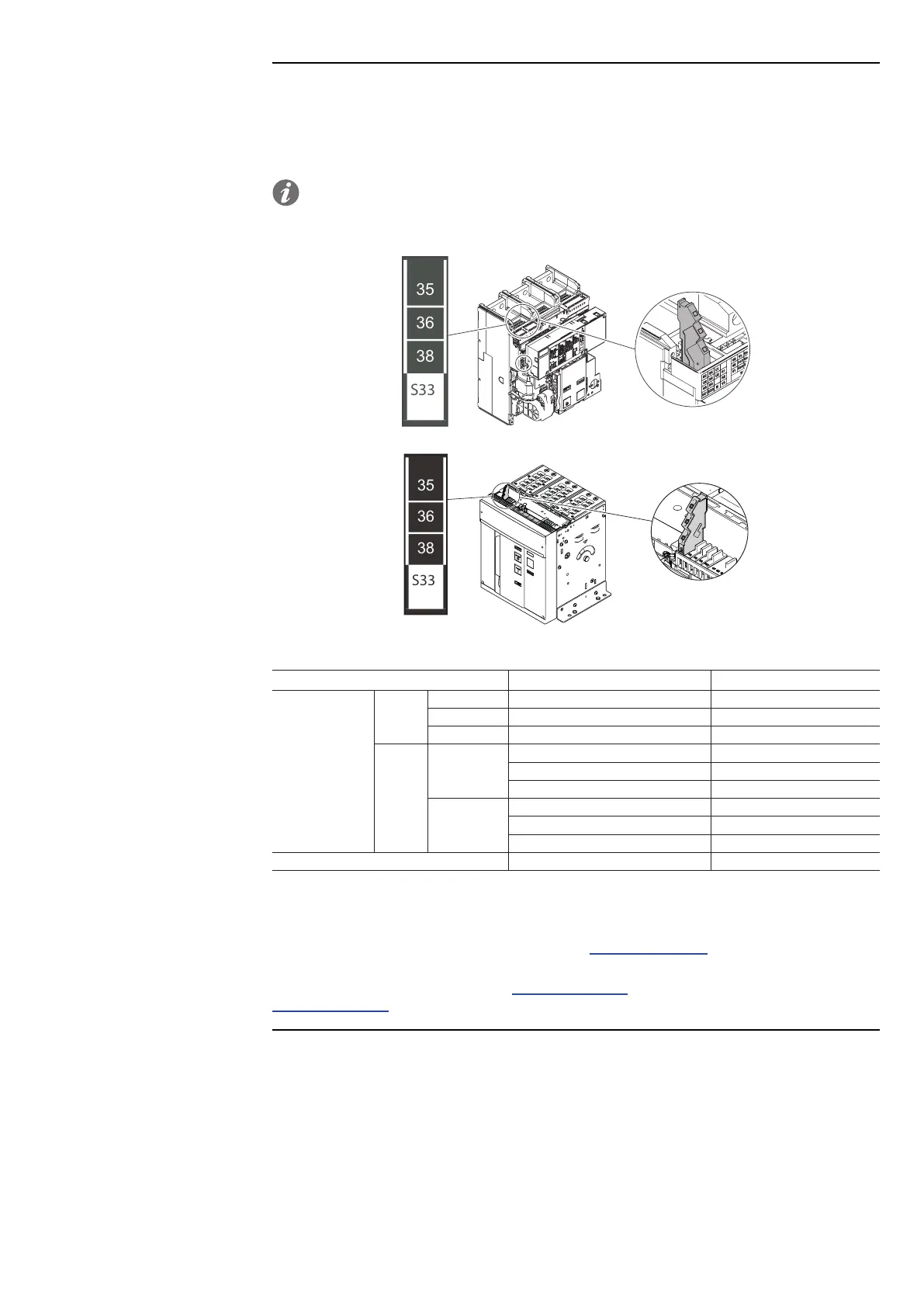

S33 M/2: springs charged
signalling contact
The S33 M/2 contact signals the state of the closing springs of the circuit-breaker control (charged or
discharged).
It is available in two types:
• standard contact
• contact for digital signals
NOTE: the S33_M/2 contact is always included in the gearmotor for automatic charging of
the springs in the standard version. The version for digital signals must be requested with the
order for the motor.
38
36
35
S33
S33 M/2 for E1.2
38
36
35
S33
S33 M/2 for E2.2 - E4.2 - E6.2
The following table provides information on the electrical characteristics:
Characteristics Standard Digital signals
Breaking
capacity
DC
24V - 0.1 A
125V 0.5A @ 0ms / 0.3A @ 10ms -
250V 0.3A @ 0ms / 0.15A @ 10ms -
AC
250V
3A cos φ 0.3 -
5A cos φ 0.7 -
5A cos φ 1 -
400V
3A cos φ 1 -
2A cos φ 0.7 -
1A cos φ 0.3 -
Minimum load 100mA @ 24V 1mA @ 5V
S33/M2: Connections
Further information is available on page 174, or on the website http://www.abb.com/abblibrary/
DownloadCenter/, where the wiring diagram is available 1SDm000091r0001.
Information on the assembly is available on the website http://www.abb.com/abblibrary/DownloadCenter/,
in particular for E1.2 in the kit sheet 1SDH000999r0609 and for E2.2-E4.2-E6.2 in the kit sheet
1SDH001000r0609.
