Ekip Touch protection trip unit | 7 - Insertion of the password57 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
Components of the page

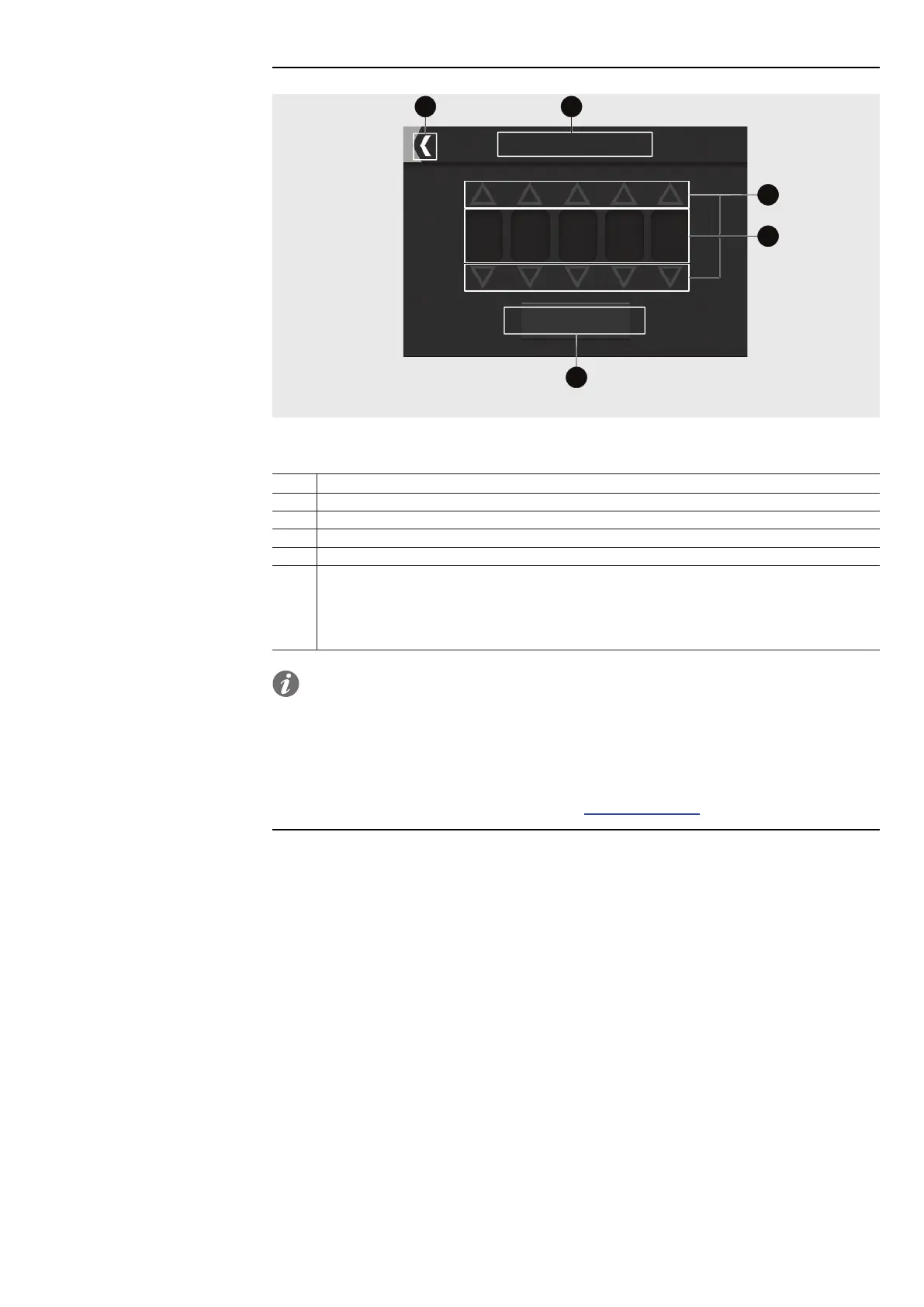

The page appears as follow:
C
D
****0
A B
E
Password
Confirm
Figure 17
The following table provides a description of the various areas of the page:
Pos. Function
A Cancels the operation, and opens the start menu.
B It shows the name of the page
C Keys to increase and decrease the corresponding digit.
D It displays the digits of the password.
E
Confirm key:
• Confirmation after inserting a digit in a position from 1 to 4 will automatically bring you to the
next digit.
• When the fifth digit is confirmed, the entire password is confirmed and the selected page is
opened.
NOTE:
• If you are changing the password, after the first confirmation of the new password, the page
opens again for the reconfirmation.
• In the case of an incorrect password, the message “Wrong Password” appears for approximately
3 seconds, and the page for insertion of the password opens again.
• There is no limit to the number of incorrect passwords that you can insert.
• If the password is lost, see the document 1SDH001501r0002 or contact ABB
