ABB | SACE Emax 2
278 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Mechanical accessories | 5 - Operating mode for E1.2

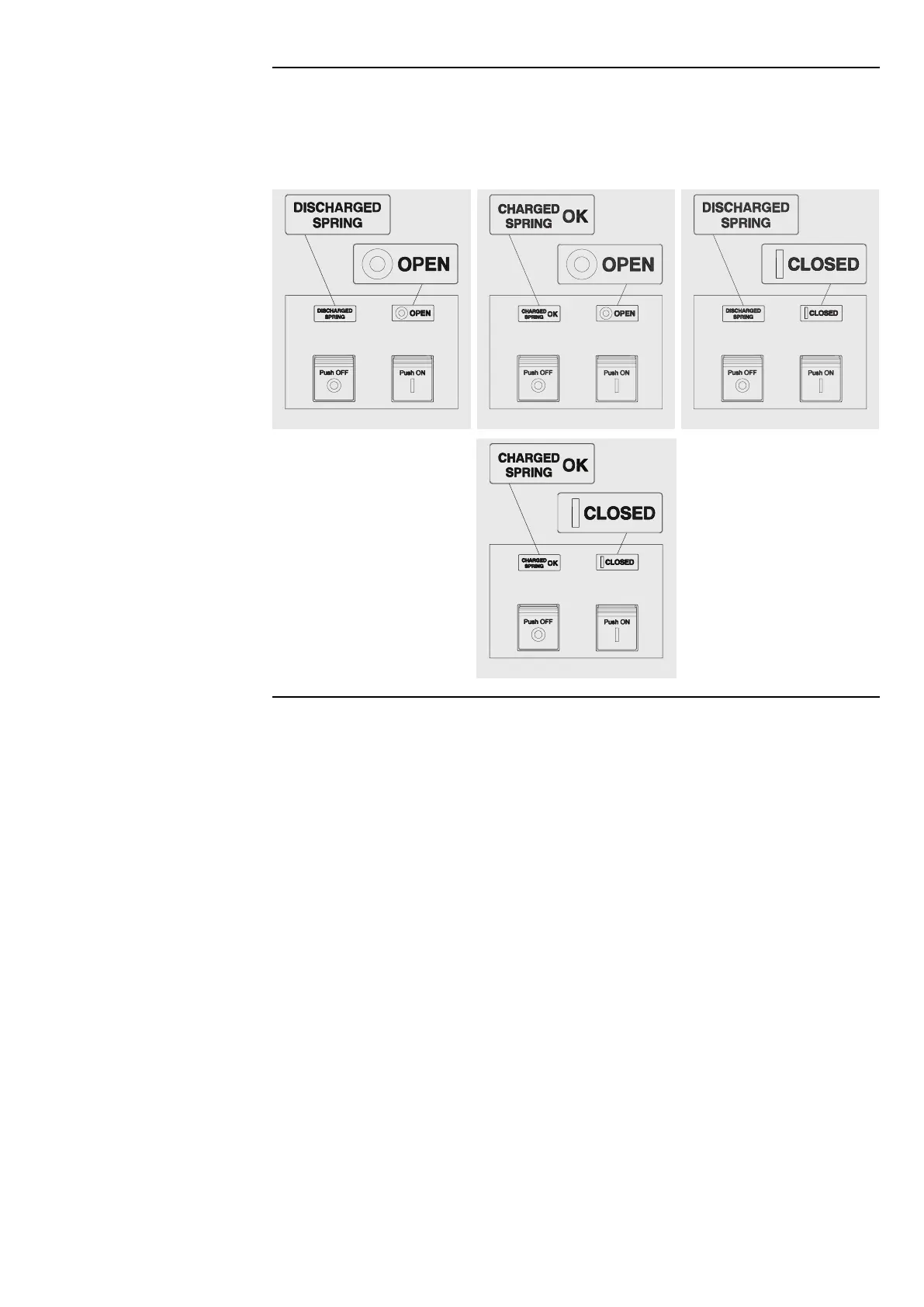

Mechanical status indicators
1. Circuit-breaker open with springs discharged (see Figure 75).
2. Circuit-breaker open with springs charged (see Figure 76).
3. Circuit-breaker closed with springs discharged (see Figure 77).
4. Circuit-breaker closed with springs charged (see Figure 78). This state occurs when after closing (see
step 4 - Figure 78) the springs are recharged manually or automatically by the gearmotor (if provided).
Figure 75 Figure 76 Figure 77
Figure 78
