ABB SACE Emax E2.2 User Manual

ABB | SACE Emax 2
246 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A Electronic accessories | 16 - Other accessories

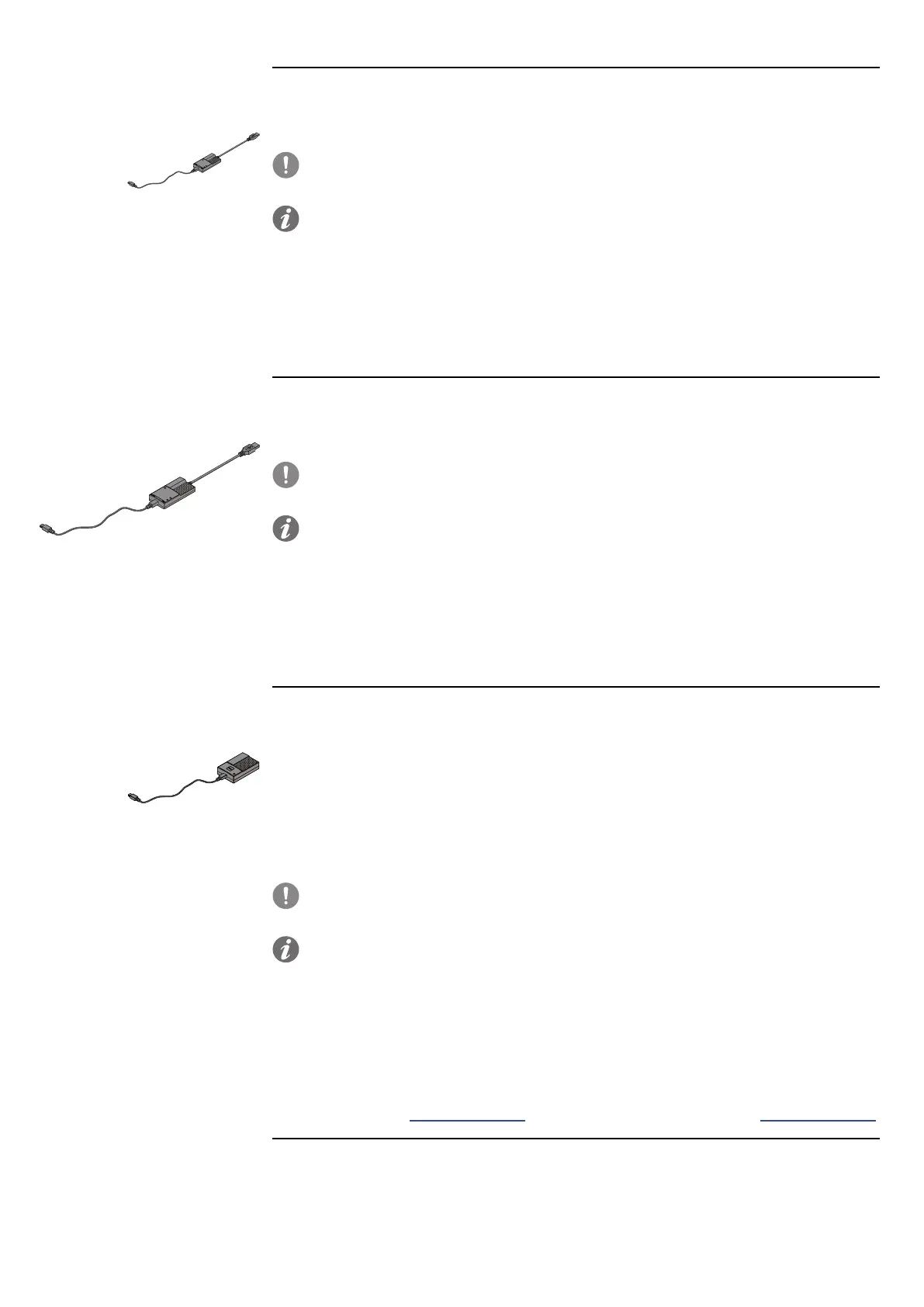

Ekip T&P module
The Ekip T&P module is part of the Ekip T&P programming and test kit for Ekip trip units, and allows you to:
• Supply the trip unit in the absence of auxiliary voltage.
• Access the information, the pages for programming the trip unit and activate the test pages, through the
Ekip Connect software (see page 245).
IMPORTANT: Ekip T&P can also be connected to the trip units when in service. In
case of connection to trip units in service, it is not possible to perform a trip test.
NOTE: Ekip T&P only powers the trip unit. Therefore, in order to set and to display information
on any electronic accessories connected to the terminal box, these must be powered with
an Ekip Supply module (see page 177).
It draws its power from the PC, and connects one side directly to the test connector at the front of the trip
unit, and on the other to the USB ports of the PC through the cable supplied.
It turns on after connecting to the PC, and is equipped with two LEDs, a green one indicating that the module
is on, and a yellow one indicating active communication.
Module Ekip Programming
Ekip Programming allows you to:
• Supply the trip unit in the absence of auxiliary voltage.
• Access the information and the pages for programming trip unit, through the Ekip Connect software (see
page 245).
IMPORTANT: Ekip Programming can be connected the trip units when they are in
service.
NOTE: Ekip Programming powers the trip unit only. Therefore, to set and display the information
for any electronic accessories connected to the terminal box, those accessories must be
powered with an Ekip Supply module (see page 177).
It draws its power from the PC, and connects one side directly to the test connector at the front of the trip
unit, and on the other to the USB ports of the PC through the cable supplied.
It turns on after connecting to the PC, and is equipped with two LEDs, a green one indicating that the module
is on, and a yellow one indicating active communication.
Ekip TT module
Ekip TT is supplied as standard with Emax 2 circuit-breakers if they are equipped with an Ekip Touch, Ekip
Hi-Touch, Ekip G Touch or Ekip G Hi-Touch protection trip unit, and with all loose trip units (ordered as spare
parts). Ekip TT allows you to:
• Check that the opening mechanism of the circuit-breaker functions properly by commanding an opening
according to the test procedure (see page 28)
• Power the trip unit so that you can see which protection tripped either on the display or through the lighting
of the corresponding LEDs in the absence of auxiliary voltage and where the circuit breaker is open due
to a protection tripping
• Power the Ekip Touch, Hi-Touch, G Touch, and G Hi-Touch trip units in order to set the protections in the
absence of auxiliary voltage
IMPORTANT: Ekip TT can be connected to the trip units also when in service. In case
of connection to trip units in service, it is not possible to perform a trip test.
NOTE: Ekip TT powers the trip unit only. Therefore, in order to set and to display information
on any electronic accessories connected to the terminal box, these must be powered through
an Ekip Supply module (see page 177).
Ekip TT draws its power from three AA alkaline batteries 1.5V, connects to the test connector at the front of
the trip unit through the supplied cable, and is turned on by setting the side switch to ON.
It includes a LED that is green when the device is energized and the batteries are charged, and red when the
batteries are drained and need to be replaced.
Further information on Ekip TT is available on the website http://www.abb.com/abblibrary/DownloadCenter/, in
particular in the kit sheet 1SDH001000r0519, and in the Ekip Connect software manual 1SDH000891r0002.
