ABB | SACE Emax 2
Electronic accessories | 9 - Ekip Com DeviceNet modules™219 | © 2017 ABB | 1SDH001330R0002 - ECN000058721 Rev. A
Continued from the previous page
The following table shows the configuration parameters of the modules:
Parameter Values Default Description
MAC
Address
1…63
• Ekip Com DeviceNet™: 65
• Ekip Com Redundant
DeviceNet™: 64
Address to be assigned to the
modules.
IMPORTANT: devices
connected to the same
network must have
different addresses.
Baudrate
125 kbit/s, 250 kbit/s,
500 kbit/s
125 kbit/s Data transmission speed
NOTE: the modules can also be configured with the Ekip Connect software (see the chapter
“16 - Other accessories", and the paragraph "Ekip Connect software" on page 245).
The following table shows the path from the display for accessing information on the modules:
About
Protection Unit
Circuit-breaker
Modules
…
Ekip DeviceNet™
Ekip DeviceNet™ *R
…
Power Controller
The information on the modules that can be displayed includes the serial number and the software version.

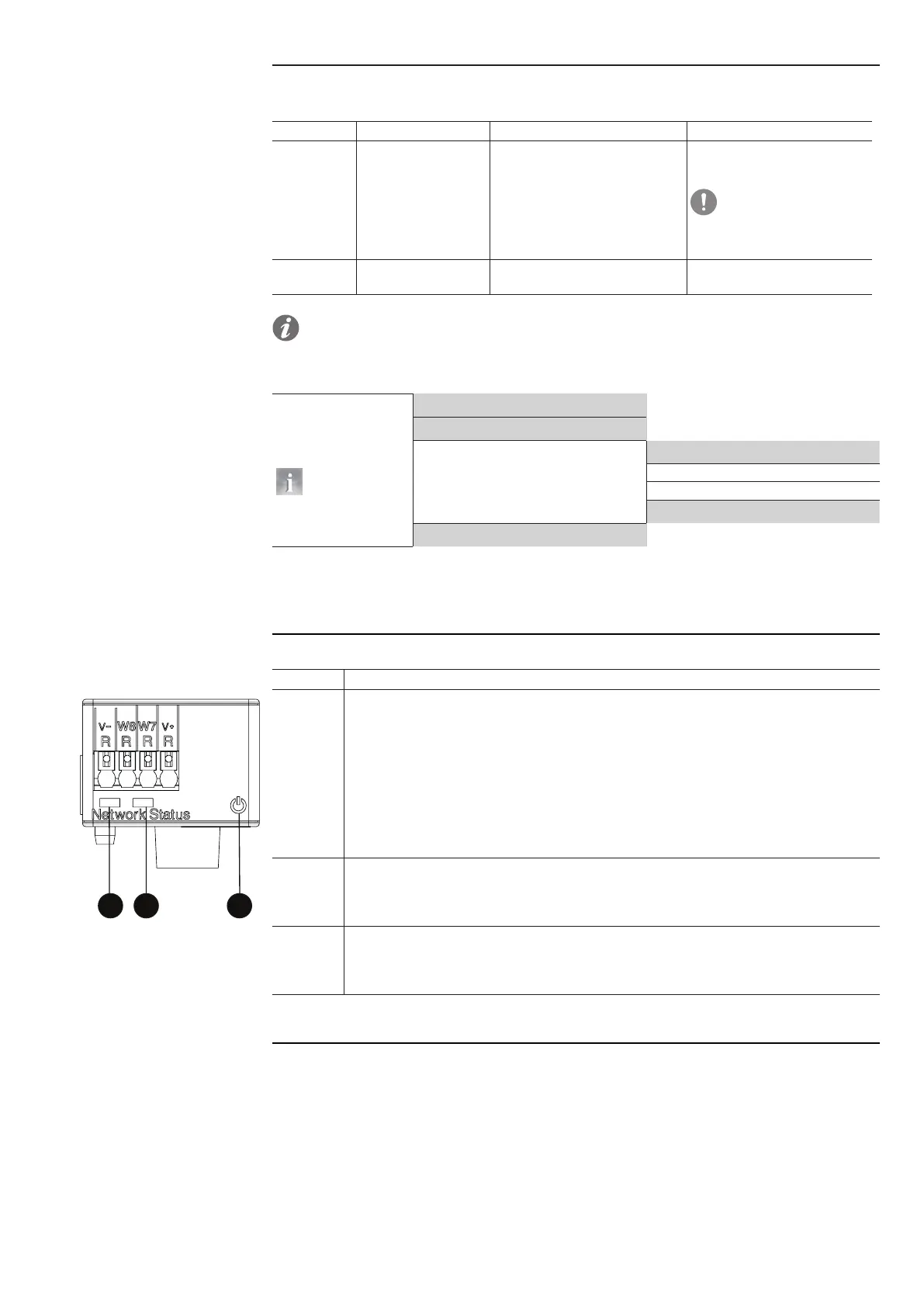

Signallings
A
CB
The following table shows the possible signals, and their meaning:
Pos. Description
A
Power LED, green. The possible states are:
• Off: power supply absent.
• On fixed: power supply and communication with the trip unit present (with a trip unit with
the Alive LED option disabled).
• On, with one flash per second (synchronized with that of the green LED on the trip unit):
power supply and communication with trip unit present (with a trip unit with the Alive LED
option enabled).
• On, with two quick flashes per second (not synchronized with those of the green LED on
the trip unit): power supply present, and communication with trip unit absent (for example:
because of Local Bus disabled).
B
LED, green. The possible states are:
• Off: device off line (with red LED off)
(1)
, or in error conditions (with red LED on).
• On fixed: device on line, and allocated on a master (operating condition).
• On flashing: device on line, but not allocated on a master (device ready for communication).
C
LED, red. The possible states are:
• Off: no error.
• On fixed: device in bus off, or Network Power absent.
• On flashing: I/O connection (cyclic data) in timeout.
(1)
The device has not yet sent Duplicate ID sequence on line.
